XCAMTOP4K_MINI Series

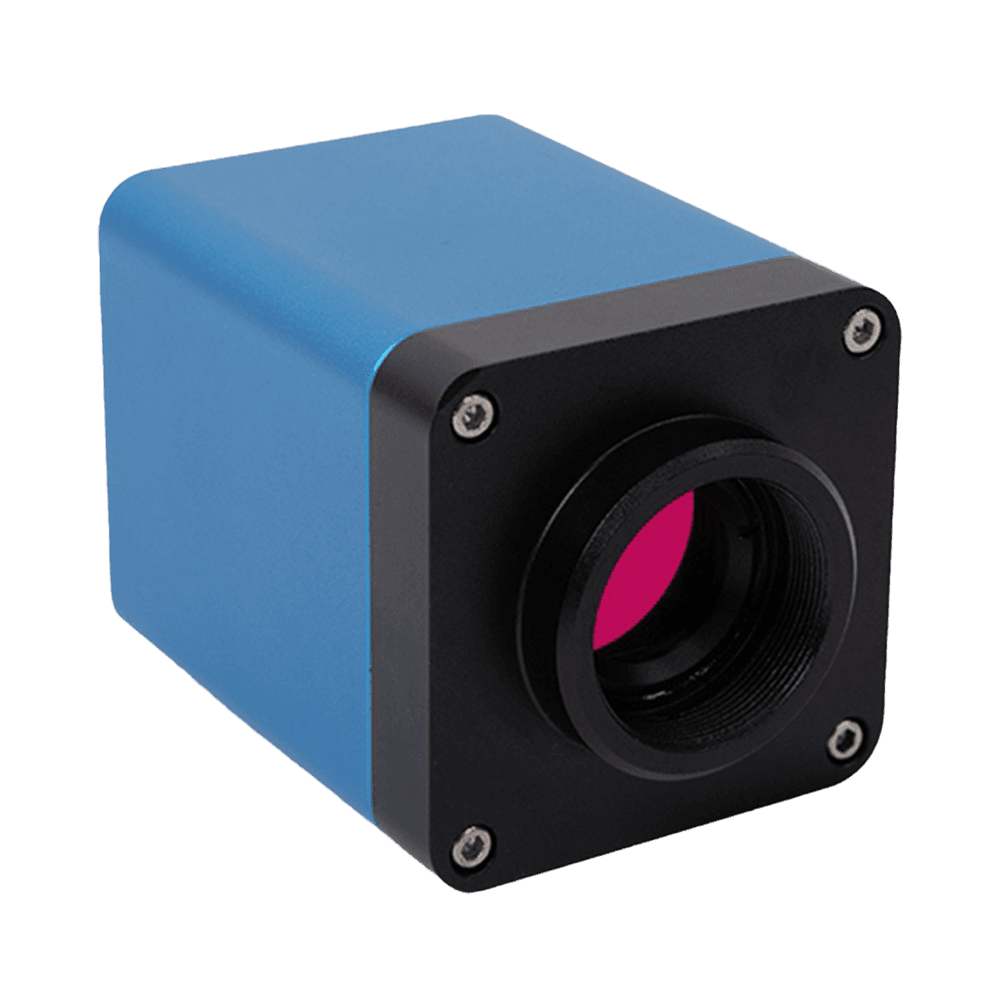

XCAMTOP4K8MPD_MINI
XCAMTOP4K8MPD_MINI Multi-Interface Output Camera with Sony IMX585(C) sensor, 8MP (3840×2160) for autofocus imaging.
- Sensor
- Sony IMX585(C)
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160
- Interface
- HDMI 1.4, USB Video, WiFi
Specifications
XCAMTOP4K8MPD_MINI
20 specification rows
The XCAMTOP4K8MPD_MINI is an intelligent imaging camera in the XCAMTOP4K_MINI series, built around a Sony IMX585(C) sensor, 8MP (3840×2160) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160, a HDMI 1.4, USB Video, WiFi interface. It suits xcamtop4k_mini series where reliable imaging performance and interface compatibility matter.
Key Parameters
| Product Model | XCAMTOP4K8MPD_MINI |
|---|---|
| Product Series | HDMI/WiFi/USB Multi-Output C-Mount Camera |
Sensor Parameters
| Sensor Model | Sony IMX585(C) |
|---|---|
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 12.78 mm |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
Performance Parameters
| Frame Rate | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 |
|---|---|
| Output Interfaces | HDMI 1.4, USB Video, WiFi |
| Lens Mount | C-mount |
| Storage Support | USB storage |
| Software Support | XCamView, ToupView, ToupLite |
Physical Parameters
| Power Supply | DC 12 V/1 A |
|---|---|
| Dimensions | Compact design |
| Weight | Lightweight |
Environmental Parameters
| Operating Temperature | 10 °C ~ +50 °C |
|---|
Other Information
| OS Support | Windows, Linux, macOS, Android, iOS |
|---|---|
| Certification | CE, FCC, UL |
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
