Color · XCAMTOP4K_MINI Series

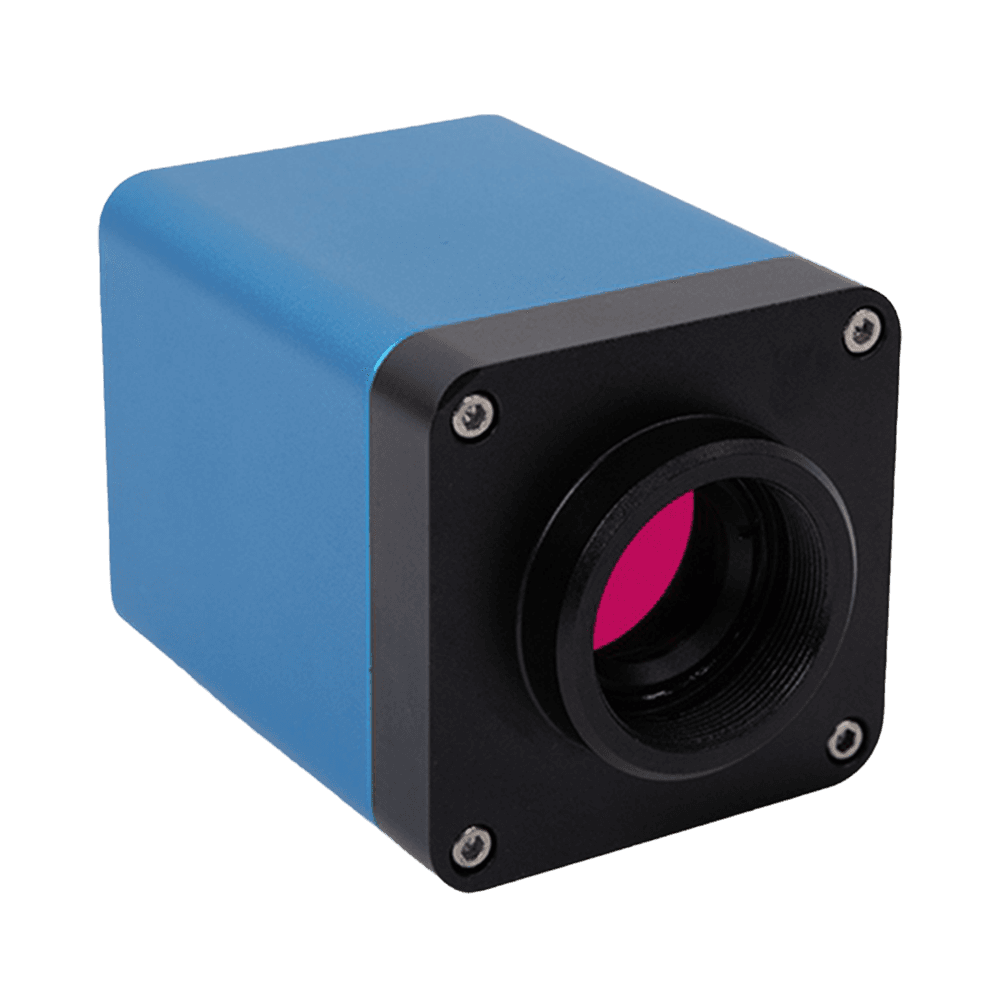

XCAMTOP4K8MPC_MINI
- Sensor
- Sony IMX678(C)
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 2.0 µm × 2.0 µm
- Frame Rate
- HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160
- Interface
- HDMI 1.4, USB Video, WiFi
Complete Specifications
Sensor & Imaging
| Sensor Model | Sony IMX678(C) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 8.81 mm |
| Pixel Size | 2.0 µm × 2.0 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Sensor | Sony IMX678(C) |
Performance
| Frame Rate | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 |
|---|
Interface & Connectivity
| Output Interfaces | HDMI 1.4, USB Video, WiFi |
|---|---|
| Storage Support | USB storage |
| Software Support | XCamView, ToupView, ToupLite |
| OS Support | Windows, Linux, macOS, Android, iOS |
| Interface | HDMI 1.4, USB Video, WiFi |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | DC 12 V/1 A |
| Dimensions | Compact design |
| Weight | Lightweight |
| Operating Temperature | 10 °C ~ +50 °C |
Other Published Specifications
| Product Model | XCAMTOP4K8MPC_MINI |
|---|---|
| Product Series | HDMI/WiFi/USB Multi-Output C-Mount Camera |
| Certification | CE, FCC, UL |
