Precisometer

Color · Digital microscope

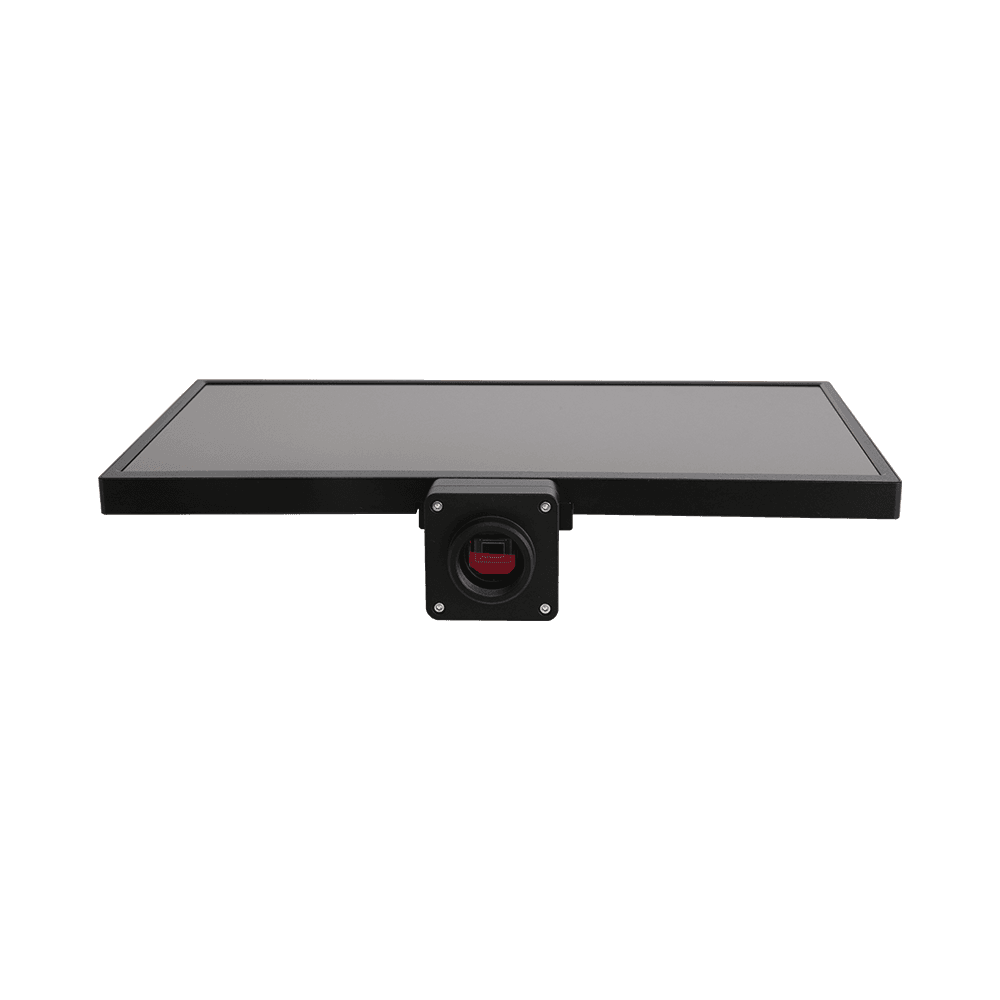

AIOCAM4K8MPA

Sensor
Sony IMX678(C) 1/1.8" (7.68×4.32 mm)
Frame Rate
60 fps @ 3840×2160
Interface
HDMI USB3 Wi-Fi
Resolution
8MP
Pixel Size
2.0 µm × 2.0 µm
Complete specificationsBack to Intelligent Imaging Cameras
AIOCAM4K8MPA

Complete Specifications

Sensor & Imaging

Sensor & Imaging
Sensor/SizeSony IMX678(C) 1/1.8" (7.68×4.32 mm)
Effective Pixels2.0 µm × 2.0 µm
SensorSony IMX678(C) 1/1.8" (7.68×4.32 mm)
Resolution8MP
Pixel Size2.0 µm × 2.0 µm

Performance

Performance
Frame Rate (fps)60 fps @ 3840×2160
Frame Rate60 fps @ 3840×2160

Interface & Connectivity

Interface & Connectivity
Output Resolution8MP
Output InterfaceHDMI USB3 Wi-Fi
Storage SupportUSB Flash Drive
InterfaceHDMI USB3 Wi-Fi

Cooling & Mechanical

Cooling & Mechanical
Lens MountC-mount

Other Published Specifications

Other Published Specifications
ModelAIOCAM4K8MPA
Featured Functions13.3-inch display screen integration Low latency approximately 40 ms HDMI2.0 4K/1080P adaptive output USB3.0 real-time output Wi-Fi AP/STA mode RAW image capture Voice control for photography/video recording/freeze Real-time depth of field synthesis/WDR/stitching ROI white balance and 3D noise reduction Built-in XCamView measurement and image processing

Technical Files & Images

Datasheet (PDF)
Technical images (8)

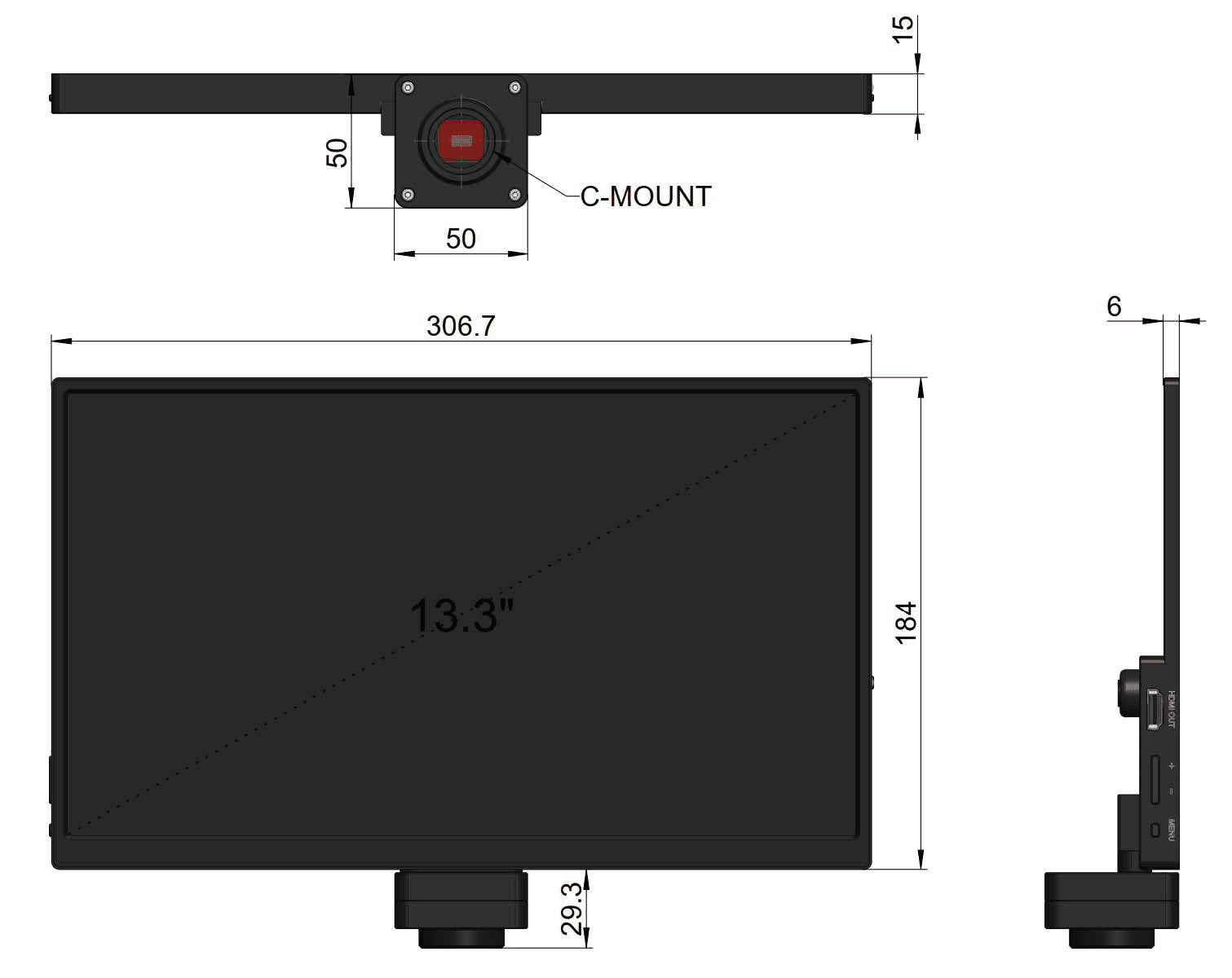

AIOCAM4K DIM1
AIOCAM4K DIM1

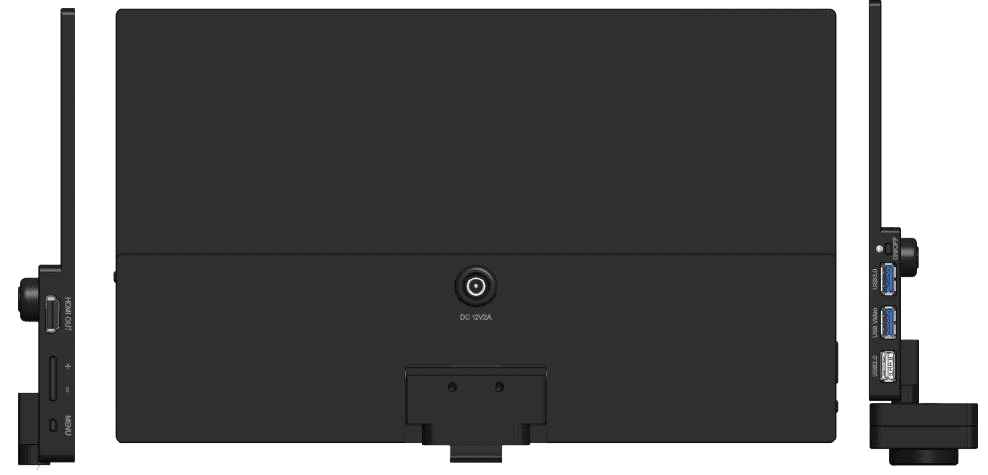

AIOCAM4K DIM2
AIOCAM4K DIM2

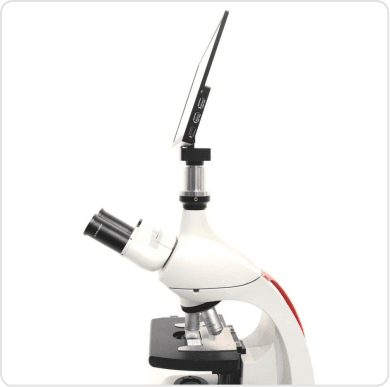

AIOCAM4K Link Diagram1
AIOCAM4K Link Diagram1

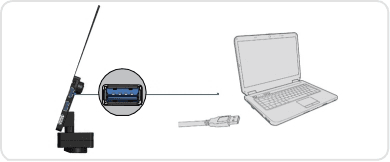

AIOCAM4K Link Diagram2
AIOCAM4K Link Diagram2

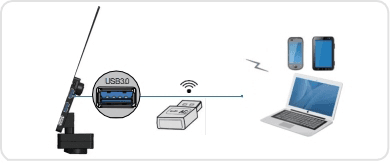

AIOCAM4K Link Diagram3
AIOCAM4K Link Diagram3

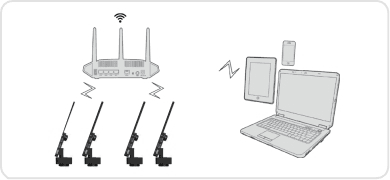

AIOCAM4K Link Diagram4
AIOCAM4K Link Diagram4

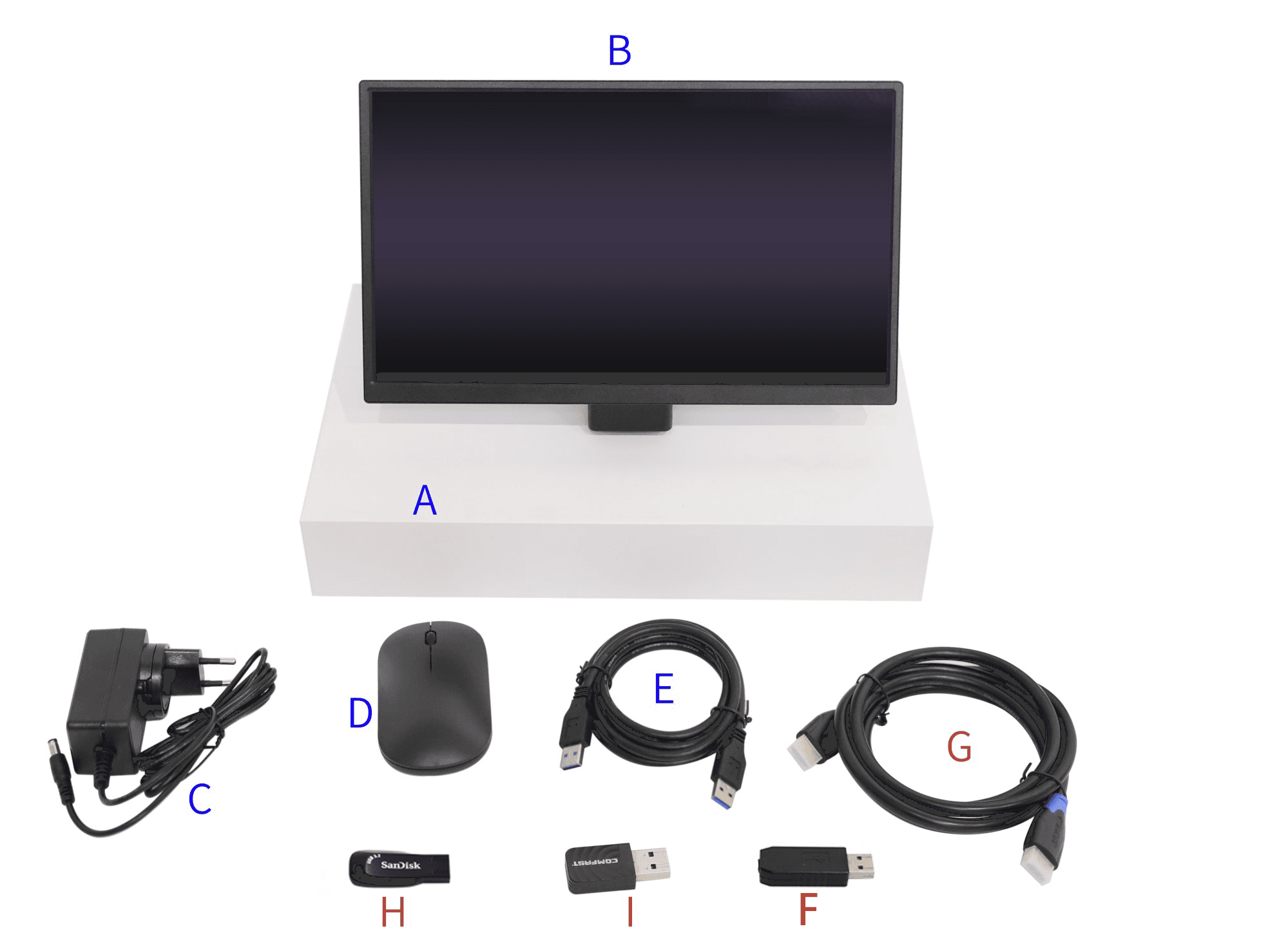

AIOCAM4K Info
AIOCAM4K Info

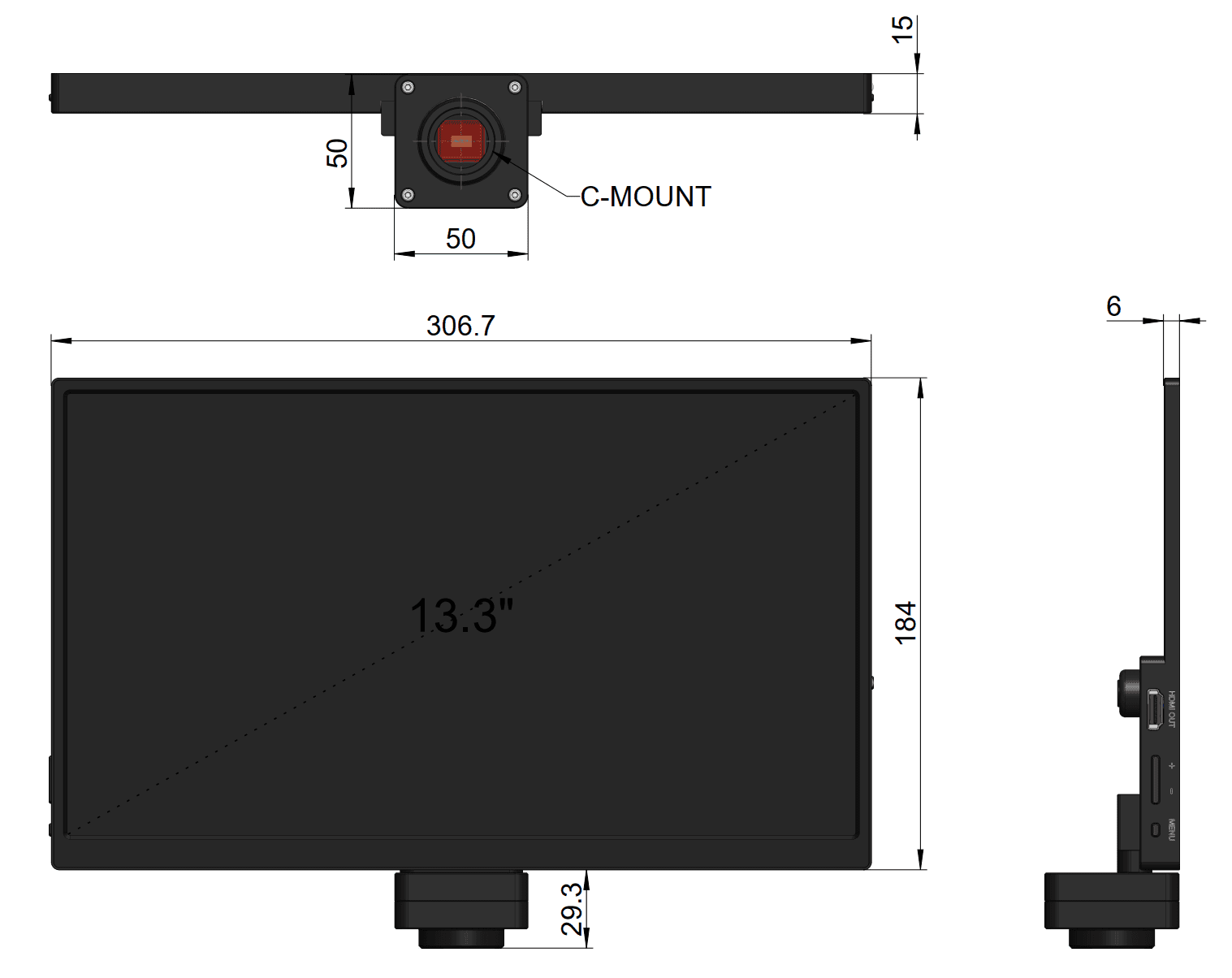

AIOCAM4K DIM
AIOCAM4K DIM

Related Products

Selection parameterAIOCAM4K8MPA (current)AIOCAMTOP4K8MPCSame IMX678 sensorAIOCAMW8MPASame IMX678 sensorCXCAM1080P8MPCSame IMX678 sensor
SensorSony IMX678(C) 1/1.8" (7.68×4.32 mm)Sony IMX678(C) 1/1.8" (7.68×4.32 mm)Sony IMX678(C) 1/1.8" (7.68×4.32 mm)Sony IMX678 (Color)
Image typeColorColorColorColor
Resolution8MP8MP (3840×2160)8MP (3840×2160)8 MP (3840×2160)
Pixel size2.0 µm × 2.0 µm2.0 µm × 2.0 µm2.0 μm × 2.0 μm2.0 µm × 2.0 µm
Frame / line rate60 fps @ 3840×2160HDMI: 30 fps @ 3840×2160; USB2.0: 30 fps @ 3840×2160; Wi-Fi: 30 fps @ 3840×216045 fps @ 3840×2160; 60 fps @ 1920×1080Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080
InterfaceHDMI USB3 Wi-FiHDMI1.4 USB2.0 Wi-FiHDMI2.0 USB3.2 NETWORK Wi-Fi6Type-C Monitor, USB Video, Wi-Fi
