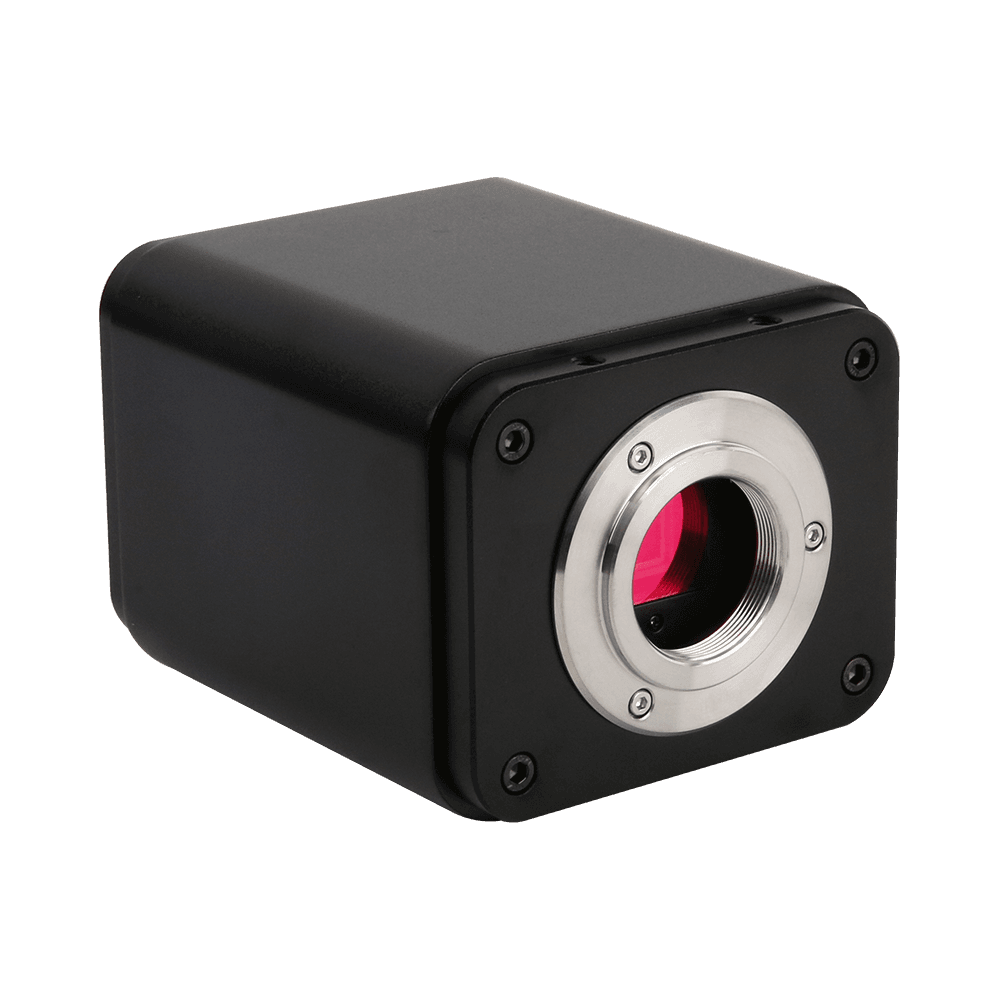

HDMI/NETWORK/USB multi-output camera
XCAMTOP1080P2MPB
XCAMTOP1080P2MPB integrates Sony IMX392 CMOS imaging, 1080P HDMI, network and USB output, local storage, voice control and XCamView tools.
- Sensor
- Sony IMX392(C)
- Resolution
- 2MP (1920×1080)
- Pixel Size
- 3.45 μm × 3.45 μm
- Frame Rate
- HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080
- Interface
- HDMI1.4 / LAN / USB Video
Specifications
XCAMTOP1080P2MPB
32 specification rows
The XCAMTOP1080P2MPB is an intelligent imaging camera in the XCAMTOP1080P series, built around a Sony IMX392(C) sensor, 2MP (1920×1080) resolution, 3.45 μm × 3.45 μm pixels, frame rates up to HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080, a HDMI1.4 / LAN / USB Video interface. It suits hdmi/network/usb multi-output camera where reliable imaging performance and interface compatibility matter.
Sensor
| Sensor Model | Sony IMX392(C) |
|---|---|
| Sensor Size | 1/2.35" (6.62×3.72 mm) |
| Sensor Diagonal | 7.59 mm |
| Pixel Size | 3.45 μm × 3.45 μm |
| Maximum Resolution | 2MP (1920×1080) |
| Color Type | Color |
| Shutter Type | Rolling shutter |
| Binning | 1×1 |
| Sensitivity | 1120 mV with 1/30 s |
| Dark Signal | 0.19 mV with 1/30 s |
Performance
| Frame Rate | HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080 |
|---|---|
| Exposure Time | 0.04 ms ~ 1000 ms |
| Output Interfaces | HDMI1.4 / LAN / USB Video |
| Lens Mount | C-mount |
| Network Functions | Resolution switching 1080P / 720P, H.264 encoded video, DHCP or manual configuration, unicast / multicast configuration |
| Optional WiFi | Optional USB 5G WiFi adapter in AP / STA mode |
Ports & Embedded Control
| Rear-Panel Ports | USB Mouse / USB2.0 / USB Video / HDMI / LAN / SD / ON/OFF / LED / DC12V |
|---|---|
| Image Operation | Zoom up to 10×, mirror / flip, freeze, cross line, comparison, file browser, video playback, measurement |
| ISP Functions | Auto / manual exposure, gain, manual / auto / ROI white balance, sharpening, 3D denoise, saturation, contrast, brightness, gamma, color to gray, 50 Hz / 60 Hz anti-flicker |
Storage & Software
| Storage Support | SD card / USB flash drive |
|---|---|
| Video Saving | 2M (1920×1080) H.264 MP4, maximum 90 fps |
| Image Capture | 2M (1920×1080) JPEG / TIFF to SD card or USB flash drive |
| Measurement Saving | Measurement information can be saved in separate layers or burned into the image |
| Software Support | XCamView / ToupView / ToupLite / iOS / Android App |
Environment
| Power Supply | DC 12 V / 1 A adapter |
|---|---|
| Body Size | Compact integrated body |
| Packing Weight | 1.57 kg per standard packing box |
| Operating Temperature | 10 °C ~ +50 °C |
| Storage Temperature | 20 °C ~ +60 °C |
| Humidity | Operating humidity: 30~80% RH; Storage humidity: 10~60% RH |
| Operating Systems | Windows XP / Vista / 7 / 8 / 8.1 / 10 (32 & 64 bit) / macOS / Linux / Android / iOS |
| Certification | CE / FCC / UL |
