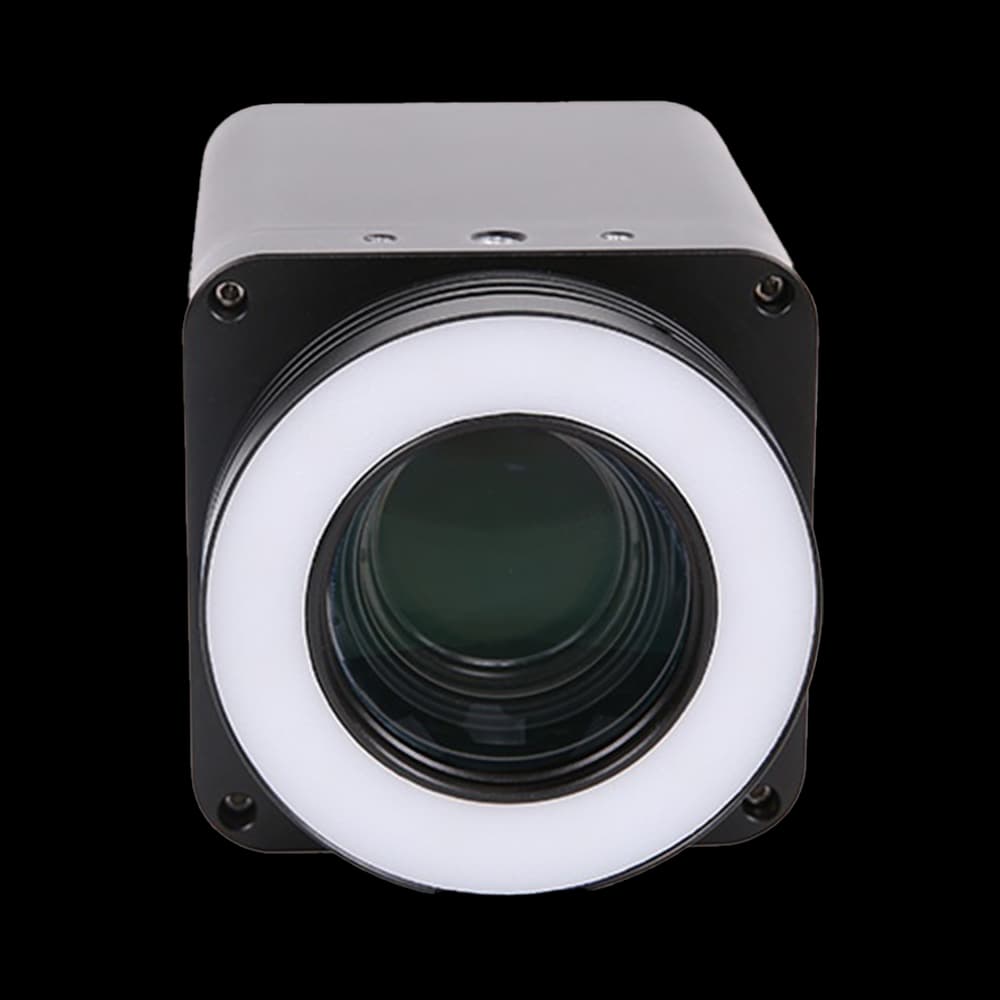

Continuous Zoom Autofocus Digital Microscope
AFDM512B combines Sony IMX415 imaging, 4K60 output, 20× zoom, autofocus and HDMI/USB3.0/Ethernet interfaces for inspection.
Application context
AFDM512B: The Sony IMX415LQR-C sensor, 8MP (3840×2160) resolution, and 1.45 µm × 1.45 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P frame-rate listing also sets the fastest full-frame acquisition regime.
AFDM512B: The Sony IMX415LQR-C sensor, 8MP (3840×2160) resolution, and 1.45 µm × 1.45 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
27 specification rows
The AFDM512B is an intelligent imaging camera in the AFDM series, built around a Sony IMX415LQR-C sensor, 8MP (3840×2160) resolution, 1.45 µm × 1.45 µm pixels, frame rates up to HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P, a HDMI2.0, USB3.0, Ethernet, Wi-Fi interface. It suits continuous zoom autofocus digital microscope where reliable imaging performance and interface compatibility matter.
| Product Model | AFDM512B |
|---|---|
| Product Series | Continuous Zoom Autofocus Digital Microscope |
| Sensor Model | Sony IMX415LQR-C |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.3 mm |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Lens Type | EMZO-18XA-640 Integrated Lens |
|---|---|
| Optical Zoom | 18× (0.0085X~0.1529X) |
| Working Distance | 400-670 mm (standard 640 mm) |
| Field of View | Low magnification: 655.8×368.9 mm, High magnification: 36.4×20.5 mm |
| Autofocus | Supported |
| Frame Rate | HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P |
|---|---|
| Output Interfaces | HDMI2.0, USB3.0, Ethernet, Wi-Fi |
| Storage Support | SD Card (SDIO3.0), USB Flash Drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V / 3 A |
|---|---|
| External Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|---|
| Storage Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 30~80% RH |
| Storage Humidity | 10~60% RH |
| Operating System Support | Windows XP/7/8/10/11 (32/64-bit), Linux, macOS 10.10+, Android 5.1+, iOS 11+ |
|---|---|
| Certification | CE, FCC, RoHS |
System integration
Use these checks to connect AFDM512B to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Sensor: Sony IMX415LQR-C · Resolution: 8MP (3840×2160). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P · Interface: HDMI2.0, USB3.0, Ethernet, Wi-Fi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare AFDM512B with the closest available models in the AFDM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | AFDM512B (current) | AFDM512A | TAFDM411 |
|---|---|---|---|
| Sensor | Sony IMX415LQR-C | Sony IMX415LQR-C | Sony IMX415LQR-C |
| Resolution | 8MP (3840×2160) | 8MP (3840×2160) | 8MP (3840×2160) |
| Sensor size | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 1.45 µm × 1.45 µm | 1.45 µm × 1.45 µm | 1.45 µm × 1.45 µm |
The IMX415 appears in 14 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
