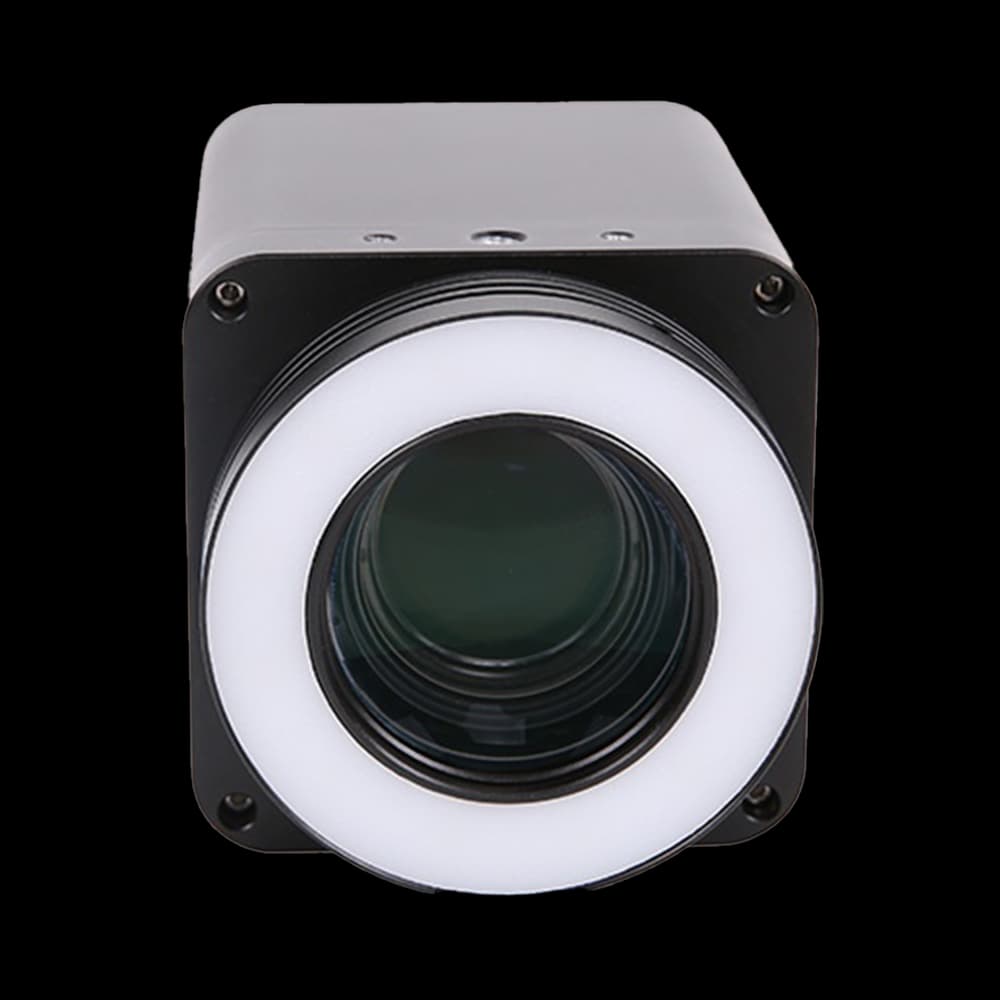

Color · Continuous Zoom Autofocus Digital Microscope
AFDM512A
- Sensor
- Sony IMX415LQR-C
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 1.45 µm × 1.45 µm
- Frame Rate
- HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P
- Interface
- HDMI2.0, USB3.0, Ethernet, Wi-Fi
Complete Specifications
Sensor & Imaging
| Sensor Model | Sony IMX415LQR-C |
|---|---|
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.3 mm |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Sensor | Sony IMX415LQR-C |
Performance
| Frame Rate | HDMI: 60 fps@3840×2160; USB: 30 fps@4K, 45 fps@2688×1512, 60 fps@1080P; Network: 60 fps@1080P |
|---|
Interface & Connectivity
| Output Interfaces | HDMI2.0, USB3.0, Ethernet, Wi-Fi |
|---|---|
| Storage Support | SD Card (SDIO3.0), USB Flash Drive |
| Software Support | XCamView, ToupView, ToupLite |
| Operating System Support | Windows XP/7/8/10/11 (32/64-bit), Linux, macOS 10.10+, Android 5.1+, iOS 11+ |
| Interface | HDMI2.0, USB3.0, Ethernet, Wi-Fi |
Cooling & Mechanical
| Power Supply | DC 12 V / 3 A |
|---|---|
| External Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
| Operating Temperature | 10 °C ~ +50 °C |
| Storage Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 30~80% RH |
| Storage Humidity | 10~60% RH |
Other Published Specifications
| Product Model | AFDM512A |
|---|---|
| Product Series | Continuous Zoom Autofocus Digital Microscope |
| Lens Type | EMZO-18XA-250 Integrated Lens |
| Optical Zoom | 18× (0.021X~0.39X) |
| Working Distance | 205-255 mm (standard 250 mm) |
| Field of View | Low magnification: 255×145 mm, High magnification: 14.2×8 mm |
| Autofocus | Supported |
| Certification | CE, FCC, RoHS |
