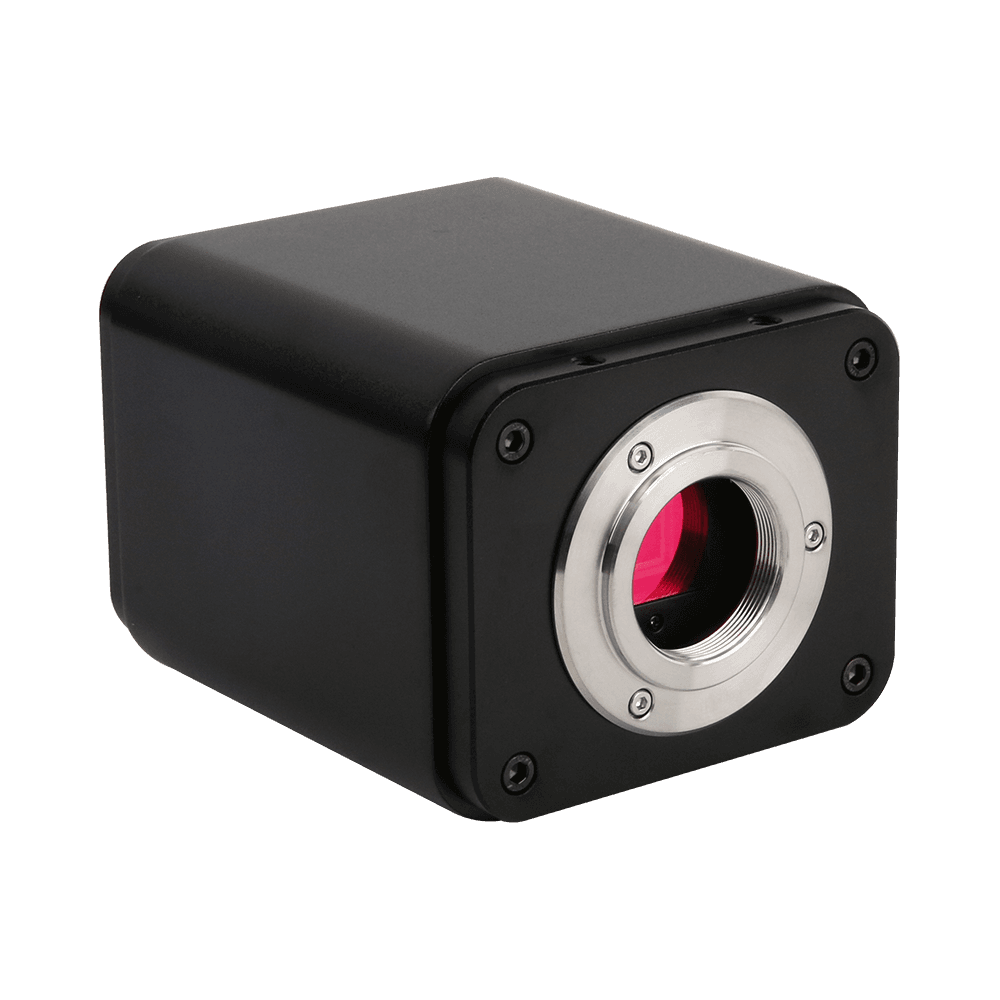

HDMI/NETWORK/USB multi-output camera
XCAMTOP1080P2MPB integrates Sony IMX392 CMOS imaging, 1080P HDMI, network and USB output, local storage, voice control and XCamView tools.
Application context
XCAMTOP1080P2MPB: The Sony IMX392(C) sensor, 2MP (1920×1080) resolution, and 3.45 μm × 3.45 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
XCAMTOP1080P2MPB: The Sony IMX392(C) sensor, 2MP (1920×1080) resolution, and 3.45 μm × 3.45 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
32 specification rows
The XCAMTOP1080P2MPB is an intelligent imaging camera in the XCAMTOP1080P series, built around a Sony IMX392(C) sensor, 2MP (1920×1080) resolution, 3.45 μm × 3.45 μm pixels, frame rates up to HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080, a HDMI1.4 / LAN / USB Video interface. It suits hdmi/network/usb multi-output camera where reliable imaging performance and interface compatibility matter.
| Sensor Model | Sony IMX392(C) |
|---|---|
| Sensor Size | 1/2.35" (6.62×3.72 mm) |
| Sensor Diagonal | 7.59 mm |
| Pixel Size | 3.45 μm × 3.45 μm |
| Maximum Resolution | 2MP (1920×1080) |
| Color Type | Color |
| Shutter Type | Rolling shutter |
| Binning | 1×1 |
| Sensitivity | 1120 mV with 1/30 s |
| Dark Signal | 0.19 mV with 1/30 s |
| Frame Rate | HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080 |
|---|---|
| Exposure Time | 0.04 ms ~ 1000 ms |
| Output Interfaces | HDMI1.4 / LAN / USB Video |
| Lens Mount | C-mount |
| Network Functions | Resolution switching 1080P / 720P, H.264 encoded video, DHCP or manual configuration, unicast / multicast configuration |
| Optional WiFi | Optional USB 5G WiFi adapter in AP / STA mode |
| Rear-Panel Ports | USB Mouse / USB2.0 / USB Video / HDMI / LAN / SD / ON/OFF / LED / DC12V |
|---|---|
| Image Operation | Zoom up to 10×, mirror / flip, freeze, cross line, comparison, file browser, video playback, measurement |
| ISP Functions | Auto / manual exposure, gain, manual / auto / ROI white balance, sharpening, 3D denoise, saturation, contrast, brightness, gamma, color to gray, 50 Hz / 60 Hz anti-flicker |
| Storage Support | SD card / USB flash drive |
|---|---|
| Video Saving | 2M (1920×1080) H.264 MP4, maximum 90 fps |
| Image Capture | 2M (1920×1080) JPEG / TIFF to SD card or USB flash drive |
| Measurement Saving | Measurement information can be saved in separate layers or burned into the image |
| Software Support | XCamView / ToupView / ToupLite / iOS / Android App |
| Power Supply | DC 12 V / 1 A adapter |
|---|---|
| Body Size | Compact integrated body |
| Packing Weight | 1.57 kg per standard packing box |
| Operating Temperature | 10 °C ~ +50 °C |
| Storage Temperature | 20 °C ~ +60 °C |
| Humidity | Operating humidity: 30~80% RH; Storage humidity: 10~60% RH |
| Operating Systems | Windows XP / Vista / 7 / 8 / 8.1 / 10 (32 & 64 bit) / macOS / Linux / Android / iOS |
| Certification | CE / FCC / UL |
System integration
Use these checks to connect XCAMTOP1080P2MPB to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX392(C) · Resolution: 2MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080 · Interface: HDMI1.4 / LAN / USB Video. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
