Precisometer

XCAM1080PX Series

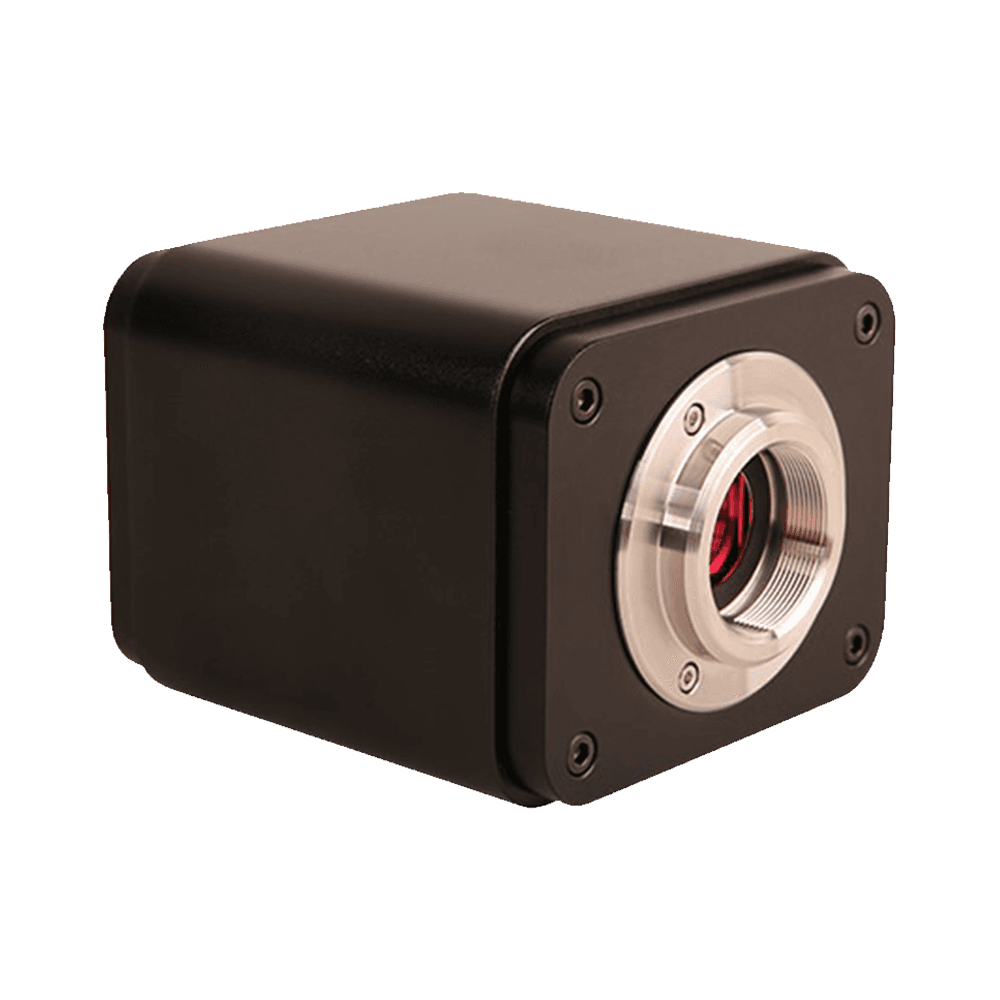

XCAM1080P8MPB

XCAM1080P8MPB Multi-Interface Output Camera with Sony IMX415(C) sensor, 8MP (3840×2160) for autofocus imaging.

Sensor
Sony IMX415(C)
Resolution
8MP (3840×2160)
Pixel Size
1.45 μm × 1.45 μm
Frame Rate
HDMI: 30 fps@1920×1080; USB: 30 fps@3840×2160
Interface
HDMI1.4, USB2.0
Datasheet (PDF)Back to Intelligent Imaging Cameras
XCAM1080P8MPB

Specifications

XCAM1080P8MPB

20 specification rows

The XCAM1080P8MPB is an intelligent imaging camera in the XCAM1080PX series, built around a Sony IMX415(C) sensor, 8MP (3840×2160) resolution, 1.45 μm × 1.45 μm pixels, frame rates up to HDMI: 30 fps@1920×1080; USB: 30 fps@3840×2160, a HDMI1.4, USB2.0 interface. It suits xcam1080px series where reliable imaging performance and interface compatibility matter.

Key Parameters

Product ModelXCAM1080P8MPB
Product SeriesC-mount HDMI+USB CMOS camera

Sensor Parameters

Sensor ModelSony IMX415(C)
Sensor Size1/2.8" (5.57×3.13 mm)
Diagonal6.4 mm
Pixel Size1.45 μm × 1.45 μm
Resolution8MP (3840×2160)
Shutter TypeRolling shutter
Color TypeColor

Performance Parameters

Frame RateHDMI: 30 fps@1920×1080; USB: 30 fps@3840×2160
Output InterfacesHDMI1.4, USB2.0
Lens MountC-mount
Storage SupportSD card, USB drive
Software SupportXCamView, ToupView, ToupLite

Physical Parameters

Power SupplyDC 12 V/1A
Dimensions78 × 65 × 88 mm
Weight0.47 kg

Environmental Parameters

Operating Temperature10 °C ~ +50 °C

Other Information

OS SupportWindows, Linux, macOS
CertificationCE, FCC, RoHS
