XCAM1080PX Series

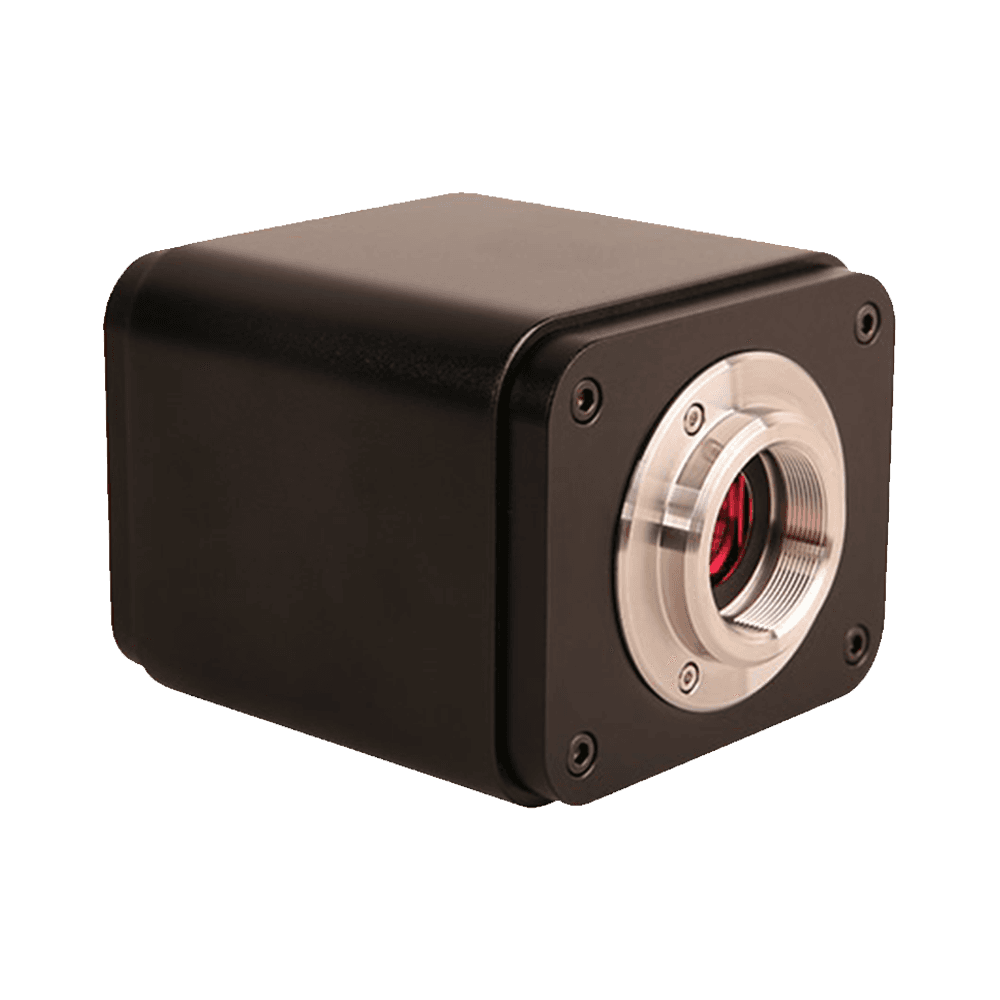

XCAM1080P2MPA Multi-Interface Output Camera with Sony IMX385(C) sensor, 2MP (1920×1080) for autofocus imaging.
Application context
XCAM1080P2MPA: The Sony IMX385(C) sensor, 2MP (1920×1080) resolution, and 3.75 μm × 3.75 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 60 fps@1920×1080; USB: 50 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
XCAM1080P2MPA: The Sony IMX385(C) sensor, 2MP (1920×1080) resolution, and 3.75 μm × 3.75 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 60 fps@1920×1080; USB: 50 fps@1920×1080 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The XCAM1080P2MPA is an intelligent imaging camera in the XCAM1080PX series, built around a Sony IMX385(C) sensor, 2MP (1920×1080) resolution, 3.75 μm × 3.75 μm pixels, frame rates up to HDMI: 60 fps@1920×1080; USB: 50 fps@1920×1080, a HDMI1.4, USB2.0 interface. It suits xcam1080px series where reliable imaging performance and interface compatibility matter.
| Product Model | XCAM1080P2MPA |
|---|---|
| Product Series | C-mount HDMI+USB CMOS camera |
| Sensor Model | Sony IMX385(C) |
|---|---|
| Sensor Size | 1/2" (7.2×4.05 mm) |
| Diagonal | 8.2 mm |
| Pixel Size | 3.75 μm × 3.75 μm |
| Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | HDMI: 60 fps@1920×1080; USB: 50 fps@1920×1080 |
|---|---|
| Output Interfaces | HDMI1.4, USB2.0 |
| Lens Mount | C-mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V/1A |
|---|---|
| Dimensions | 78 × 65 × 88 mm |
| Weight | 0.47 kg |
| Operating Temperature | 10 °C ~ +50 °C |
|---|
| OS Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC, RoHS |
System integration
Use these checks to connect XCAM1080P2MPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX385(C) · Resolution: 2MP (1920×1080). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 60 fps@1920×1080; USB: 50 fps@1920×1080 · Interface: HDMI1.4, USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare XCAM1080P2MPA with the closest available models in the XCAM1080PX family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | XCAM1080P2MPA (current) | XCAM1080P8MPB |
|---|---|---|
| Sensor | Sony IMX385(C) | Sony IMX415(C) |
| Resolution | 2MP (1920×1080) | 8MP (3840×2160) |
| Sensor size | 1/2" (7.2×4.05 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 3.75 μm × 3.75 μm | 1.45 μm × 1.45 μm |
The IMX385 appears in 5 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
