For microscope interactive teaching systems
X5CAM4K8MPB

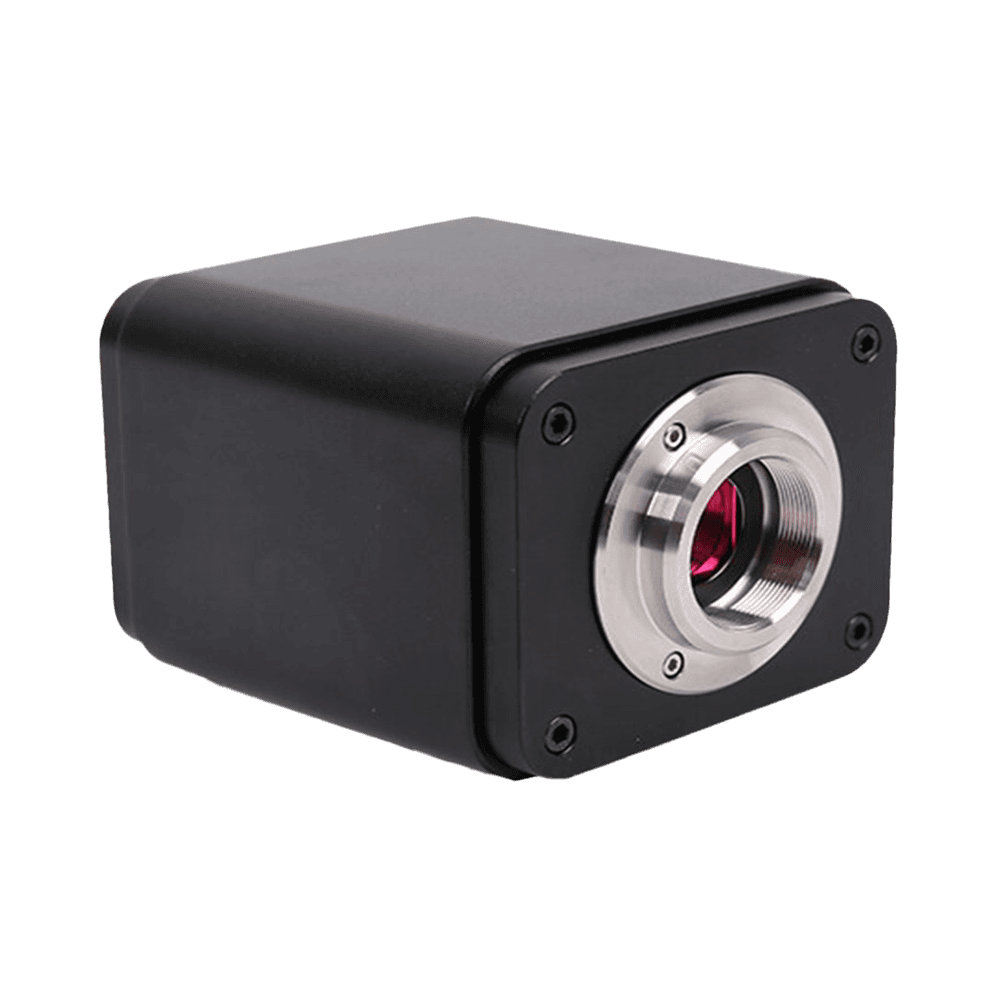

X5CAM4K8MPB Multi-Interface Output Camera with Sony IMX585(C) sensor, 8MP for autofocus imaging.
- Sensor
- Sony IMX585(C)
- Resolution
- 8MP
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- 60 fps @ 3840×2160
- Interface
- HDMI, NETWORK, USB3, WiFi
Specifications
X5CAM4K8MPB
18 specification rows
The X5CAM4K8MPB is an intelligent imaging camera in the X5CAM4K series, built around a Sony IMX585(C) sensor, 8MP resolution, 2.9 µm × 2.9 µm pixels, frame rates up to 60 fps @ 3840×2160, a HDMI, NETWORK, USB3, WiFi interface. It suits for microscope interactive teaching systems where reliable imaging performance and interface compatibility matter.
Key Parameters
| Product Model | X5CAM4K8MPB |
|---|---|
| Product Series | For microscope interactive teaching systems |
Sensor Parameters
| Sensor Model | Sony IMX585(C) |
|---|---|
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 1/1.2" |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
Performance Parameters
| Frame Rate | 60 fps @ 3840×2160 |
|---|---|
| Output Interfaces | HDMI, NETWORK, USB3, WiFi |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView |
Physical Parameters
| Power Supply | DC 12 V/1A |
|---|
Environmental Parameters
| Operating Temperature | 10 °C ~ 50 °C |
|---|
Other Information
| OS Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC |
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
