For microscope interactive teaching systems

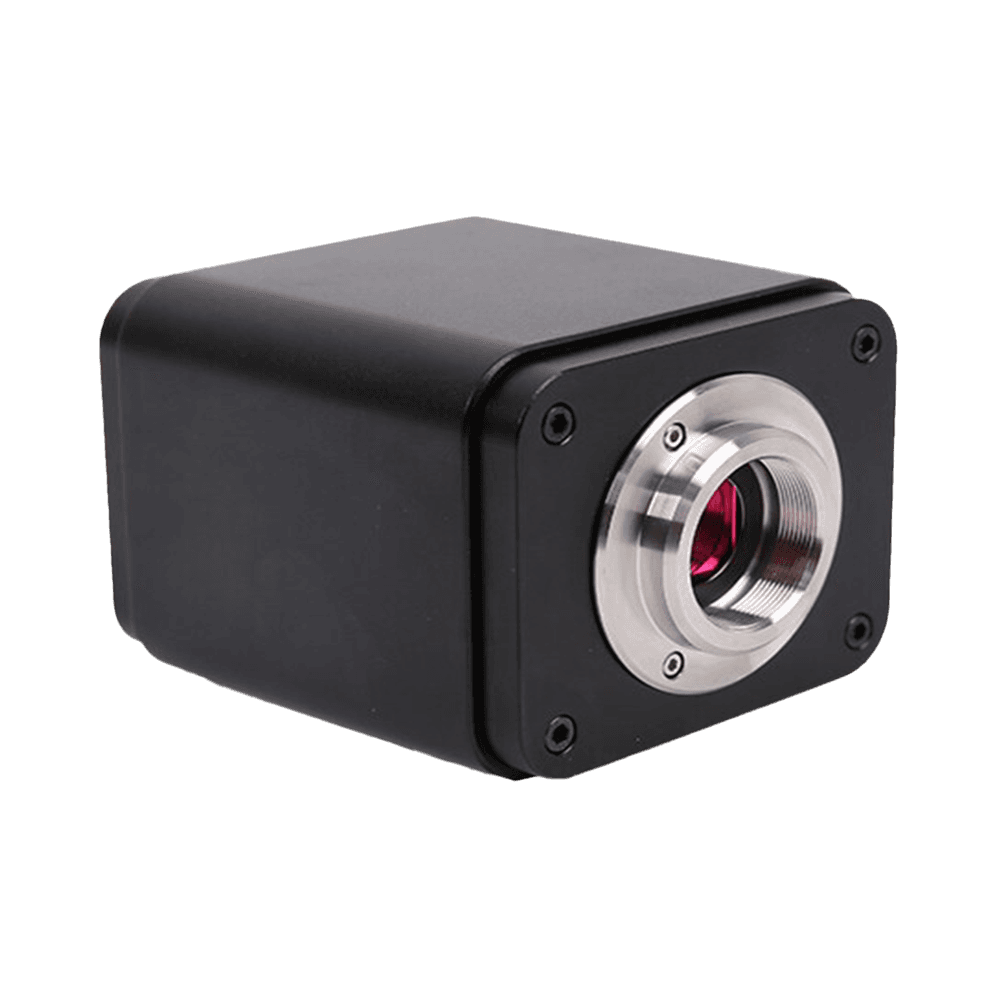

X5CAM4K8MMA
X5CAM4K8MMA Multi-Interface Output Camera with Sony IMX678(M) sensor, 8MP for autofocus imaging.
- Sensor
- Sony IMX678(M)
- Resolution
- 8MP
- Pixel Size
- 2.0 µm × 2.0 µm
- Frame Rate
- 60 fps @ 3840×2160
- Interface
- HDMI, NETWORK, USB3, WiFi
Specifications
X5CAM4K8MMA
18 specification rows
The X5CAM4K8MMA is an intelligent imaging camera in the X5CAM4K series, built around a Sony IMX678(M) sensor, 8MP resolution, 2.0 µm × 2.0 µm pixels, frame rates up to 60 fps @ 3840×2160, a HDMI, NETWORK, USB3, WiFi interface. It suits for microscope interactive teaching systems where reliable imaging performance and interface compatibility matter.
Key Parameters
| Product Model | X5CAM4K8MMA |
|---|---|
| Product Series | For microscope interactive teaching systems |
Sensor Parameters
| Sensor Model | Sony IMX678(M) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 1/1.8" |
| Pixel Size | 2.0 µm × 2.0 µm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Monochrome |
Performance Parameters
| Frame Rate | 60 fps @ 3840×2160 |
|---|---|
| Output Interfaces | HDMI, NETWORK, USB3, WiFi |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView |
Physical Parameters
| Power Supply | DC 12 V/1A |
|---|
Environmental Parameters
| Operating Temperature | 10 °C ~ 50 °C |
|---|
Other Information
| OS Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC |
System integration
Integration and compatibility
Use these checks to connect X5CAM4K8MMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX678(M) · Resolution: 8MP
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 60 fps @ 3840×2160 · Interface: HDMI, NETWORK, USB3, WiFi
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Technical FAQ
Integration questions for X5CAM4K8MMA
What lens mount is required for the X5CAM4K8MMA?
Lens Mount: C mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the X5CAM4K8MMA use?
Sensor: Sony IMX678(M) · Resolution: 8MP. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the X5CAM4K8MMA connect to the acquisition computer?
Frame Rate: 60 fps @ 3840×2160 · Interface: HDMI, NETWORK, USB3, WiFi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the X5CAM4K8MMA
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare X5CAM4K8MMA with the closest available models in the X5CAM4K family.
| Selection parameter | X5CAM4K8MMA (current) | X5CAM4K8MPA | X5CAM4K8MPB |
|---|---|---|---|
| Sensor | Sony IMX678(M) | Sony IMX678(C) | Sony IMX585(C) |
| Resolution | 8MP | 8MP | 8MP |
| Sensor size | 1/1.8" (7.68×4.32 mm) | 1/1.8" (7.68×4.32 mm) | 1/1.2" (11.14×6.26 mm) |
| Pixel size / frame rate | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm | 2.9 µm × 2.9 µm |
