Scientific Camera

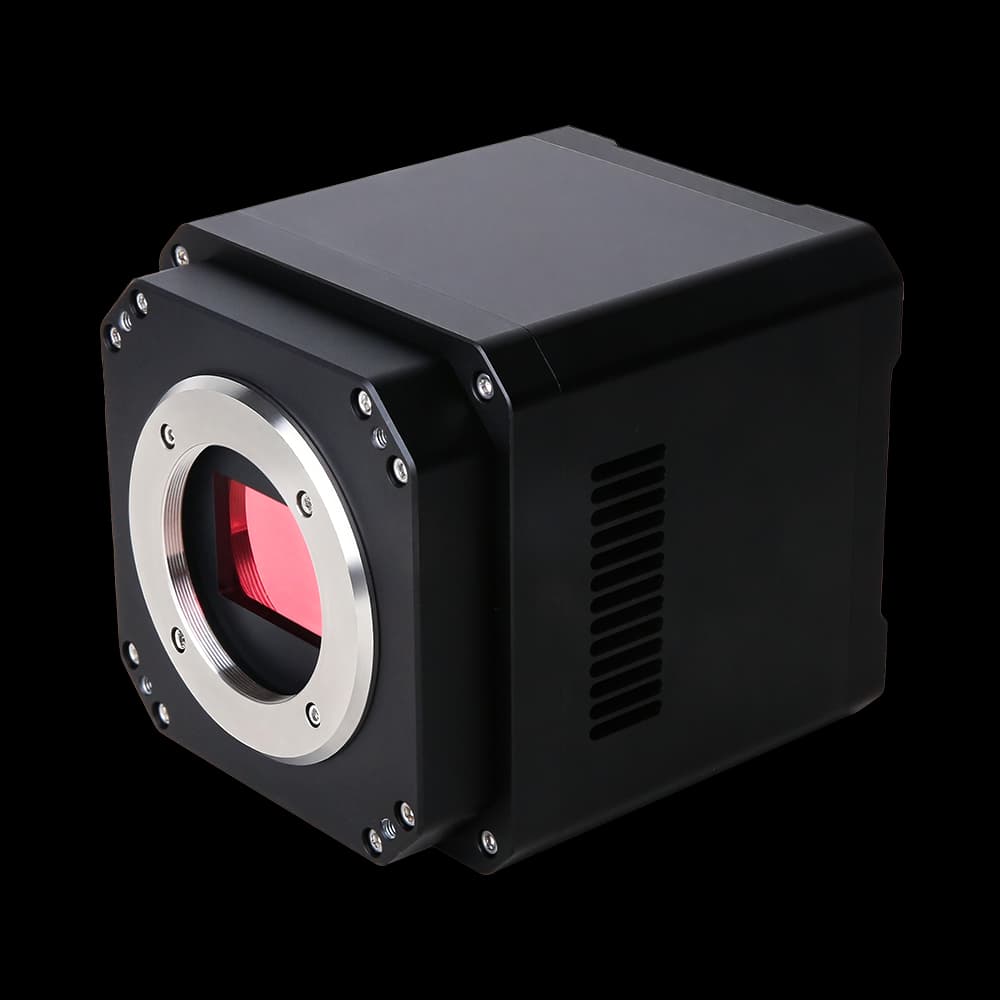

MAX62AM

MAX62AM MAX Sony scientific camera combines Exmor CMOS imaging, TEC cooling, anti-condensation optics and SDK support.

Sensor: IMX455 (M, RS)
Resolution: 61 MP (9568×6380)
Pixel Size: 3.76 µm × 3.76 µm
Frame Rate: 6.1 fps @ 9568×6380 (16-bit); 19.1 fps @ 4784×3190; 55.6 fps @ 3184×2124; 191 fps @ 1040×706
Interface: USB3.0

Datasheet (PDF)Back to Scientific Cameras

Specifications

MAX62AM

25 specification rows

The MAX62AM is a scientific camera in the MAX Sony series, built around a IMX455 (M, RS) sensor, 61 MP (9568×6380) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 6.1 fps @ 9568×6380 (16-bit); 19.1 fps @ 4784×3190; 55.6 fps @ 3184×2124; 191 fps @ 1040×706, a USB3.0 interface. It suits scientific camera where reliable imaging performance and interface compatibility matter.

Specifications

Model	MAX62AM
Sensor	IMX455 (M, RS)
Shutter Type	Rolling Shutter
Color Type	Monochrome
Resolution	61 MP (9568×6380)
Sensor Size	35.98 mm × 23.99 mm
Sensor Diagonal	1.8" (43.24 mm)
Pixel Size	3.76 µm × 3.76 µm

Performance Parameters

Frame Rate	6.1 fps @ 9568×6380 (16-bit); 19.1 fps @ 4784×3190; 55.6 fps @ 3184×2124; 191 fps @ 1040×706
Exposure Time	0.1 ms ~ 3600 s
Bit Depth	8/16-bit
Dynamic Range	88.3 dB
Sensitivity	871 mV @ 1/30 s; 0.039 mV @ 1/30 s

Interface Parameters

GPIO	1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO
Lens Mount	M54×0.75 (native); optional M42×1/EF/F adapters
Data Interface	USB3.0
Power Supply	DC 19 V, 4 A

Physical Parameters

Dimensions	Available on request
Weight	Available on request

Environmental Parameters

Operating Temperature	10 °C to +50 °C
Operating Humidity	30%–80% RH (non-condensing)
Storage Temperature	20 °C to +60 °C
Storage Humidity	10%–60% RH (non-condensing)

Other Parameters

OS Support	Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.)
Certification	Available on request
