Scientific Camera

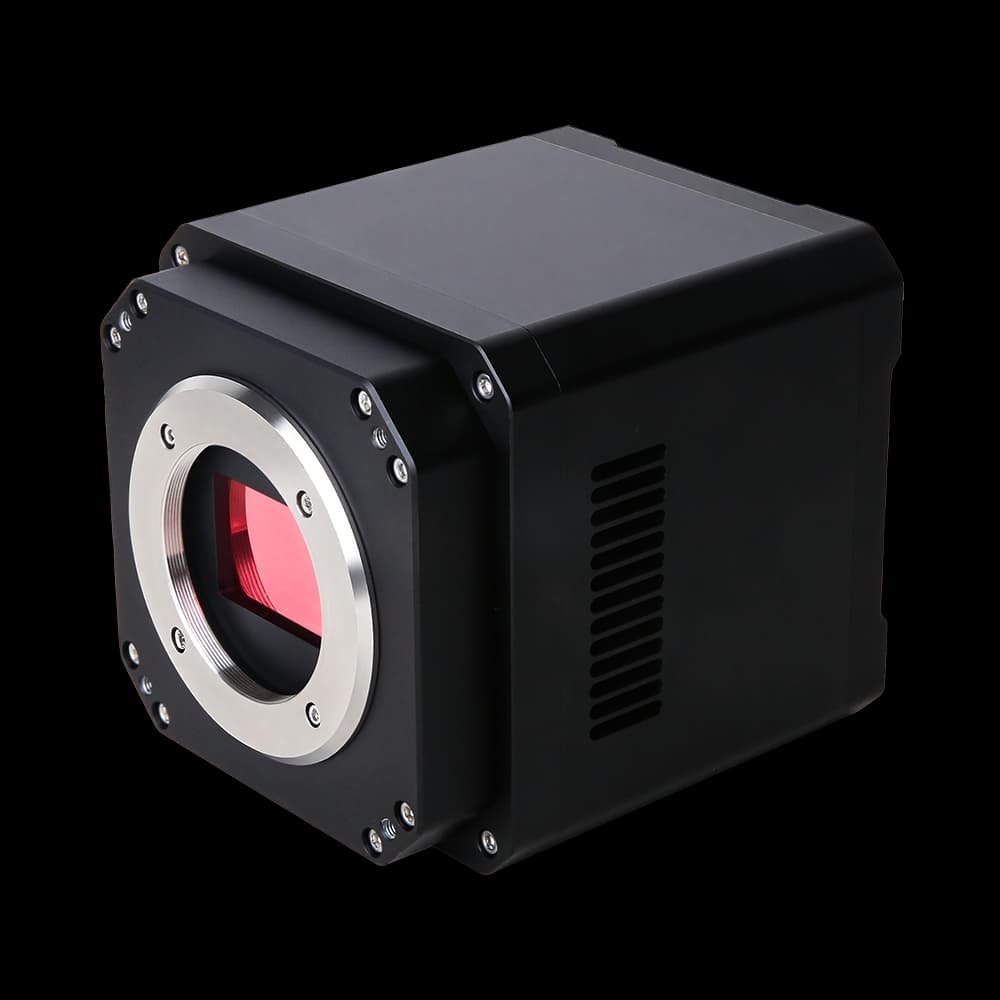

MAX62AM
MAX62AM MAX Sony scientific camera combines Exmor CMOS imaging, TEC cooling, anti-condensation optics and SDK support.
- Sensor
- IMX455 (M, RS)
- Resolution
- 61 MP (9568×6380)
- Pixel Size
- 3.76 µm × 3.76 µm
- Frame Rate
- 6.1 fps @ 9568×6380 (16-bit); 19.1 fps @ 4784×3190; 55.6 fps @ 3184×2124; 191 fps @ 1040×706
- Interface
- USB3.0
Specifications
MAX62AM
25 specification rows
Specifications
| Model | MAX62AM |
|---|---|
| Sensor | IMX455 (M, RS) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Resolution | 61 MP (9568×6380) |
| Sensor Size | 35.98 mm × 23.99 mm |
| Sensor Diagonal | 1.8" (43.24 mm) |
| Pixel Size | 3.76 µm × 3.76 µm |
Performance Parameters
| Frame Rate | 6.1 fps @ 9568×6380 (16-bit); 19.1 fps @ 4784×3190; 55.6 fps @ 3184×2124; 191 fps @ 1040×706 |
|---|---|
| Exposure Time | 0.1 ms ~ 3600 s |
| Bit Depth | 8/16-bit |
| Dynamic Range | 88.3 dB |
| Sensitivity | 871 mV @ 1/30 s; 0.039 mV @ 1/30 s |
Interface Parameters
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO |
|---|---|
| Lens Mount | M54×0.75 (native); optional M42×1/EF/F adapters |
| Data Interface | USB3.0 |
| Power Supply | DC 19 V, 4 A |
Physical Parameters
| Dimensions | Available on request |
|---|---|
| Weight | Available on request |
Environmental Parameters
| Operating Temperature | 10 °C to +50 °C |
|---|---|
| Operating Humidity | 30%–80% RH (non-condensing) |
| Storage Temperature | 20 °C to +60 °C |
| Storage Humidity | 10%–60% RH (non-condensing) |
Other Parameters
| OS Support | Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
|---|---|
| Certification | Available on request |
