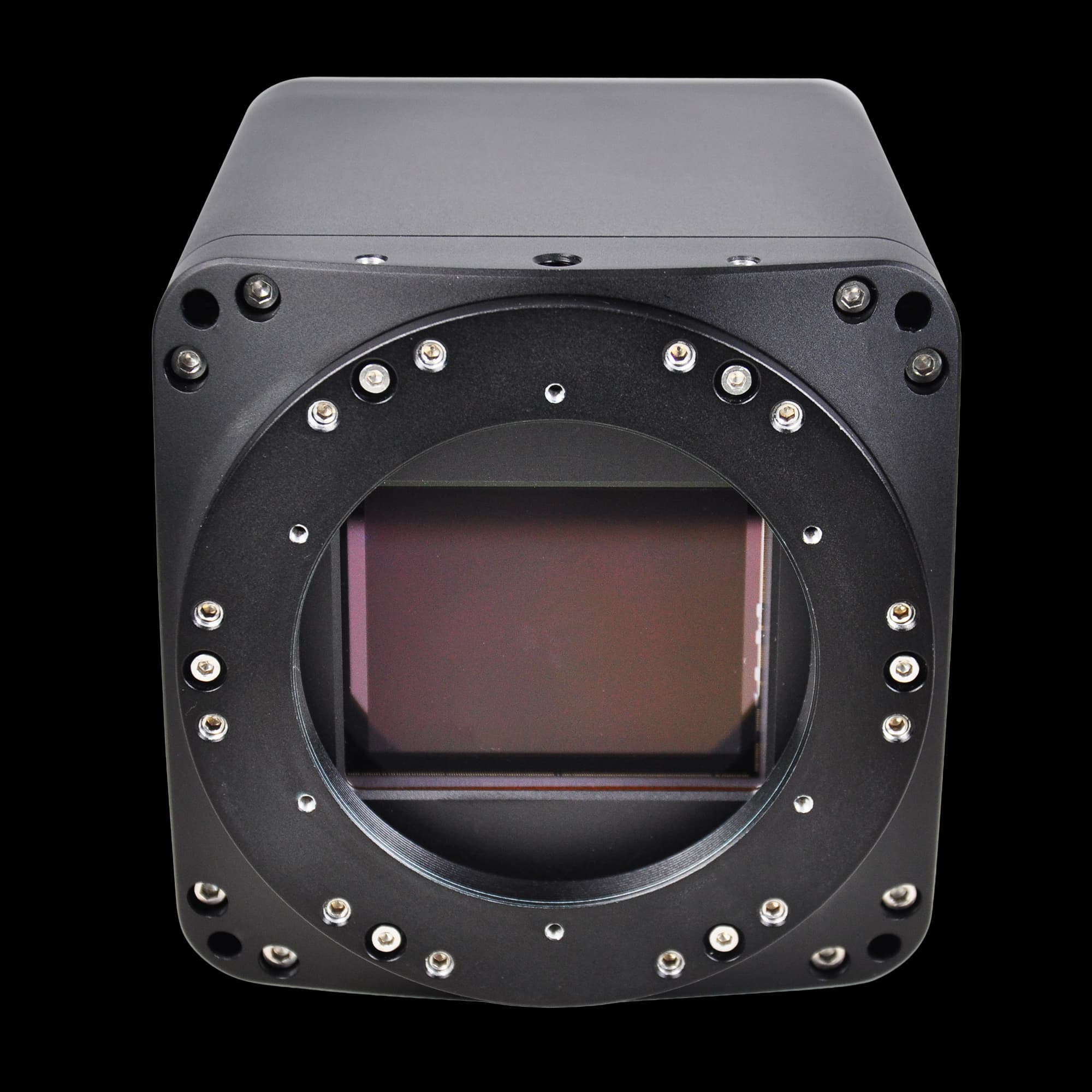

Monochrome · Scientific Camera
MAX102AM-U3
- Sensor
- IMX461ALR (M, RS)
- Resolution
- 102 MP (11648×8742)
- Pixel size
- 3.76 µm × 3.76 µm
- Read noise
- 3.57 e−

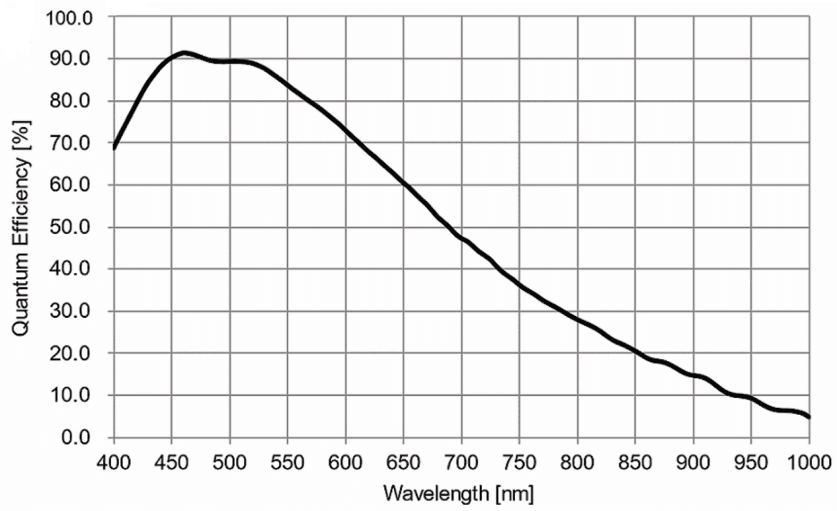

QE & Performance Curves
Published curves (1)
Complete Specifications
Sensor & Imaging
| Sensor | IMX461ALR (M, RS) |
|---|---|
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Resolution | 102 MP (11648×8742) |
| Sensor Size | 43.80 mm × 32.87 mm |
| Sensor Diagonal | 4.1" (54.76 mm) |
| Pixel Size | 3.76 µm × 3.76 µm |
Published Performance
Camera catalogue (2026-09-17) · p. 44| Conversion Gain | 0.75 e−/ADU |
|---|---|
| Readout Noise | 3.57 e− |
| Full Well Capacity | 49.09 ke− |
| Dynamic range | 82.8 dB |
| Maximum SNR | 46.9 dB |
| Sensitivity | 871 mV @ 1/30 s |
| Dark current | 0.003 e /pix/s @ -20 deg C |
| Gain range | 1x-100x |
| Exposure time | 150μs-3600secec |
| Binning | Software 2×2~8×8 |
| Data Format | 8-bit / 16-bit |
Performance
| Frame Rate | 3.5 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 |
|---|---|
| Exposure Time | 150 µs ~ 3600 s |
| Bit Depth | 8/16-bit |
| Dynamic Range | 82.8 dB |
| Sensitivity | 871 mV @ 1/30 s; 0.04 mV @ 1/30 s |
Interface & Connectivity
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO |
|---|---|
| Data Interface | USB3.0 |
| OS Support | Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | M54×0.75 (native); optional M72×0.75 front adapter ring |
|---|---|
| Power Supply | DC 19 V, 4 A |
| Dimensions | 110 mm × 110 mm × 123.8 mm |
| Weight | 1.44 kg |
| Operating Temperature | 10 °C to +50 °C |
| Operating Humidity | 30%–80% RH (non-condensing) |
| Storage Temperature | 20 °C to +60 °C |
| Storage Humidity | 10%–60% RH (non-condensing) |
Other Published Specifications
| Model | MAX102AM-U3 |
|---|---|
| Certification | Available on request |
Technical Files & Images

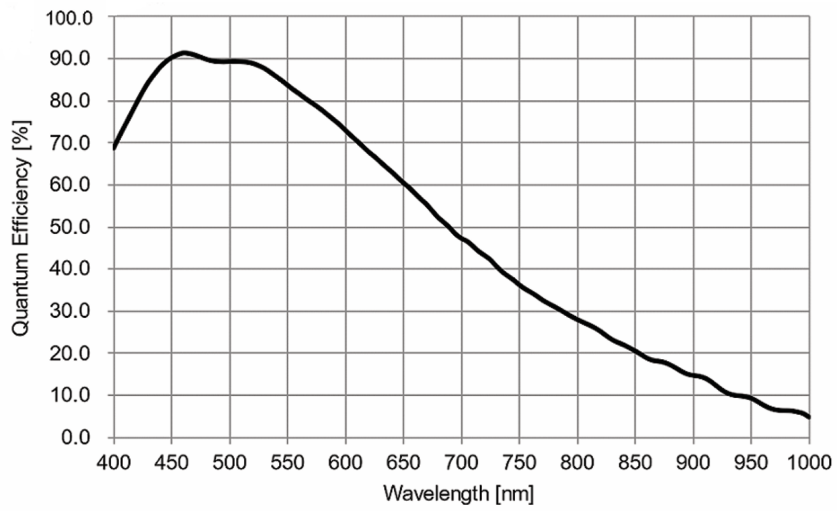

Technical images (1)
