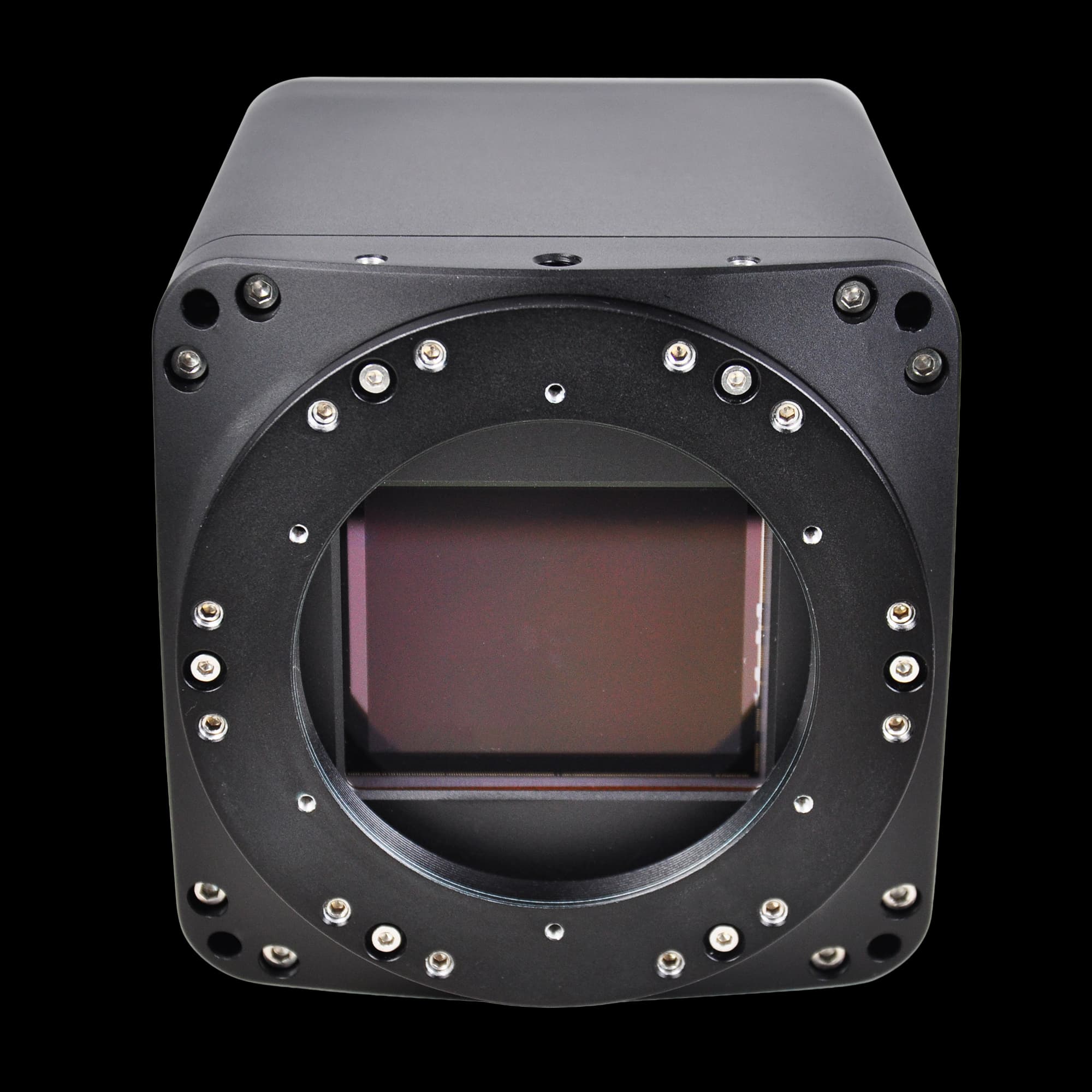

Color · Scientific Camera
MAX102AC-10G
- Sensor
- IMX461AQR (C, RS)
- Resolution
- 102 MP (11648×8742)
- Pixel size
- 3.76 µm × 3.76 µm
- Read noise
- 3.64e−

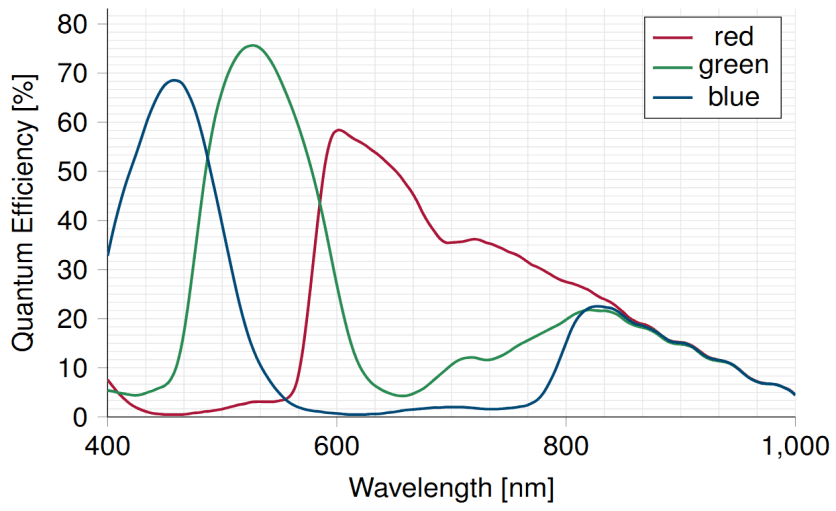

QE & Performance Curves
Published curves (1)
Complete Specifications
Sensor & Imaging
| Sensor | IMX461AQR (C, RS) |
|---|---|
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Resolution | 102 MP (11648×8742) |
| Sensor Size | 43.80 mm × 32.87 mm |
| Sensor Diagonal | 4.1" (54.76 mm) |
| Pixel Size | 3.76 µm × 3.76 µm |
Published Performance
Camera catalogue (2026-09-17) · p. 47| Conversion Gain | 0.77 e−/ADU |
|---|---|
| Readout Noise | 3.64e− |
| Full Well Capacity | 50.19 ke− |
| Dynamic range | 82.8 dB |
| Maximum SNR | 47 dB |
| Sensitivity | 485mV @ 1/30 s |
| Dark current | 0.003 e /pix/s @ -20 deg C |
| Gain range | 1x-50x |
| Exposure time | 15μs-3600secec |
| Binning | Software 2×2~8×8 |
| Data Format | 8-bit / 16-bit |
Performance
| Frame Rate | 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 |
|---|---|
| Exposure Time | 150 µs ~ 3600 s |
| Bit Depth | 8/16-bit |
| Dynamic Range | 82.8 dB |
| Sensitivity | 485 mV @ 1/30 s; 0.04 mV @ 1/30 s |
Interface & Connectivity
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO |
|---|---|
| Data Interface | 10GigE |
| OS Support | Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Interface | 10GigE |
Cooling & Mechanical
| Lens Mount | M54×0.75 (native); optional M72×0.75 front adapter ring |
|---|---|
| Power Supply | DC 19 V, 4 A |

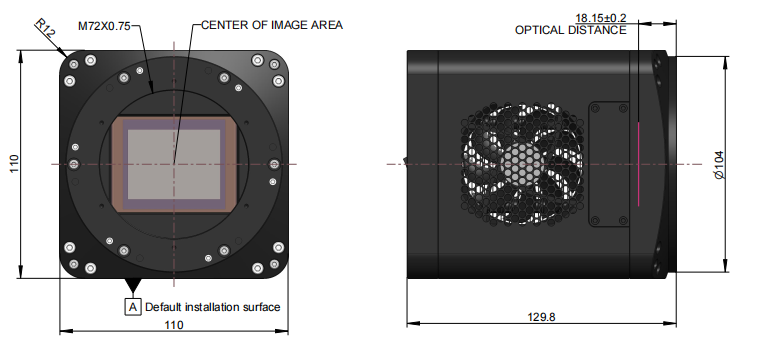

| Dimensions | 110 mm × 110 mm × 129.8 mm |
| Weight | 1.44 kg |
| Operating Temperature | 10 °C to +50 °C |
| Operating Humidity | 30%–80% RH (non-condensing) |
| Storage Temperature | 20 °C to +60 °C |
| Storage Humidity | 10%–60% RH (non-condensing) |
Other Published Specifications
| Model | MAX102AC-10G |
|---|---|
| Certification | Available on request |
Technical Files & Images
Technical images (1)
Related Products
| Selection parameter | MAX102AC-10G (current) | MAX102AC-U3Same IMX461 sensor | MAX102AM-10GSame IMX461 sensor | MAX102AM-U3Same IMX461 sensor |
|---|---|---|---|---|
| Sensor | IMX461AQR (C, RS) | IMX461AQR (C, RS) | IMX461ALR (M, RS) | IMX461ALR (M, RS) |
| Image type | Color | Color | Monochrome | Monochrome |
| Resolution | 102 MP (11648×8742) | 102 MP (11648×8742) | 102 MP (11648×8742) | 102 MP (11648×8742) |
| Pixel size | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
| Read noise | 3.64e− | 3.64e− | 3.57 e− | 3.57 e− |
| Full well | 50.19 ke− | 50.19 ke− | 49.09 ke− | 49.09 ke− |
| Frame / line rate | 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 | 3.5 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 | 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 | 3.5 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 |
| Interface | 10GigE | USB3.0 | 10GigE | USB3.0 |
| Cooling / shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
