FTIR Spectrometers
Fourier-TransformInfrared Spectrometers
From a compact entry-level bench to a 0.25 cm⁻¹ research instrument; dedicated analysers for liquids, infrared emission and hot gas; and portable and handheld units that identify unknown substances on site. Every instrument has a full specification and a downloadable datasheet.
0.25 cm⁻¹
Best resolution
FI-RXF200 research FTIR
12800–350 cm⁻¹
Widest range
FI-RXF200 with the near-infrared option
5–9.8 m
Heated gas cell
FI-RXF100-G, 180 °C
< 4.5 kg
Handheld
FI-RXMI100 with automatic diamond ATR
Routine identification and QA in the lab?
FI-RXF50 as the entry-level instrument; FI-RXF100 for interchangeable diamond-ATR, transmission and reflection modules, with battery and carry-case options for work on site.
Research, in-situ catalysis or high resolution?
FI-RXF100-R for large in-situ cells and an adjustable aperture; FI-RXF100-R-T for two sample compartments that stay set up; FI-RXF200 for 0.25 cm⁻¹ and mid- plus near-infrared on one instrument.
Liquids, emission, hot gas — or out in the field?
FI-RXF100-RT for quantitative liquid work, FI-RXF100-RE for emissivity, FI-RXF100-G for hot flue and process gas; the FI-RXMo100 and FI-RXMI100 identify unknown substances on site.
Benchtop
Laboratory FTIR Spectrometers
From the entry-level FI-RXF50 to the research-grade FI-RXF200, with in-situ and dual-compartment systems for catalysis in between.

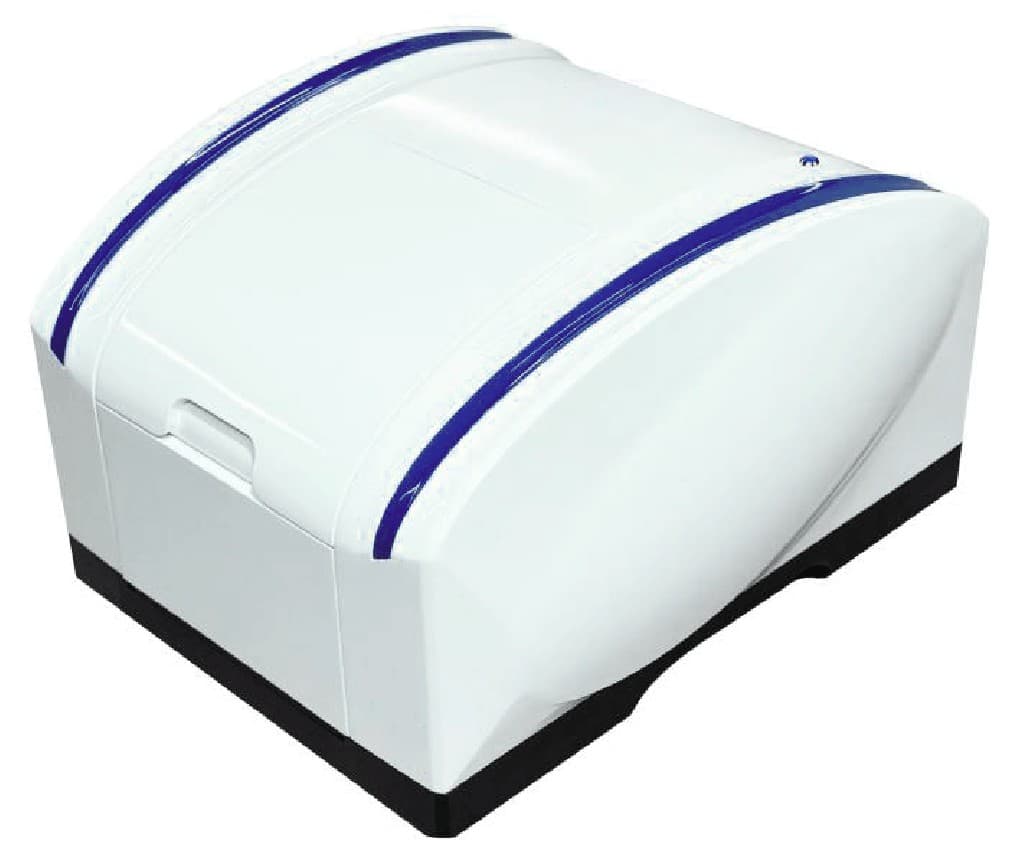

Entry-level benchtop FTIR
FI-RXF50
An entry-level FTIR spectrometer, more compact than the FI-RXF100, with a permanently aligned interferometer and user-replaceable source and desiccant. Takes ATR, transmission, diffuse reflectance, specular reflectance and gas-cell accessories; 5000–500 cm⁻¹ in the moisture-resistant ZnSe version, 8000–350 cm⁻¹ with KBr.
- Spectral range, ZnSe version
- 5000–500 cm⁻¹
- Resolution, better than
- 0.9 cm⁻¹
- Wavenumber accuracy, better than
- 0.01 cm⁻¹
- Dimensions
- 17 × 39.5 × 22.3 cm

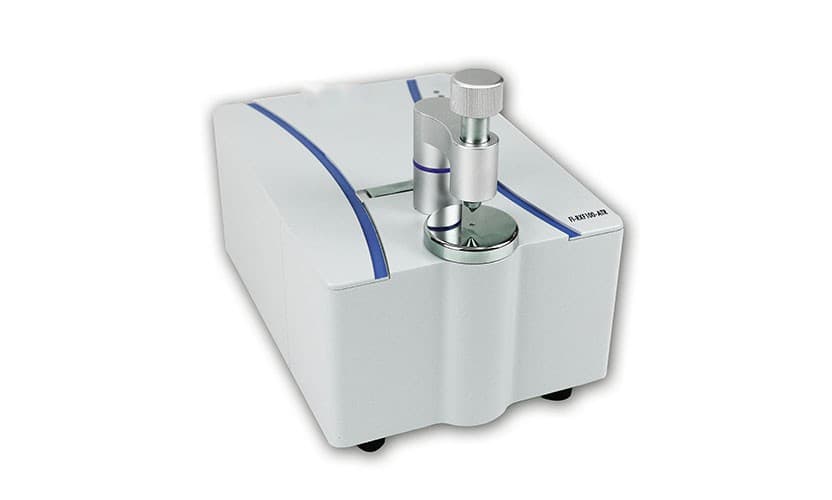

Compact benchtop FTIR
FI-RXF100
A compact FTIR spectrometer with interchangeable sampling modules. A snap-lock mount keeps the optical path strictly repeatable, so switching between ATR, transmission, reflection and other modes is easy in the lab or on site. Diamond ATR, 7800–350 cm⁻¹ with KBr optics, SNR ≥ 50,000:1, 8 kg.
- Spectral range, KBr optics
- 7800–350 cm⁻¹
- Spectral resolution
- 0.9 cm⁻¹
- Signal-to-noise ratio
- ≥ 50,000:1
- Main unit weight
- 8 kg

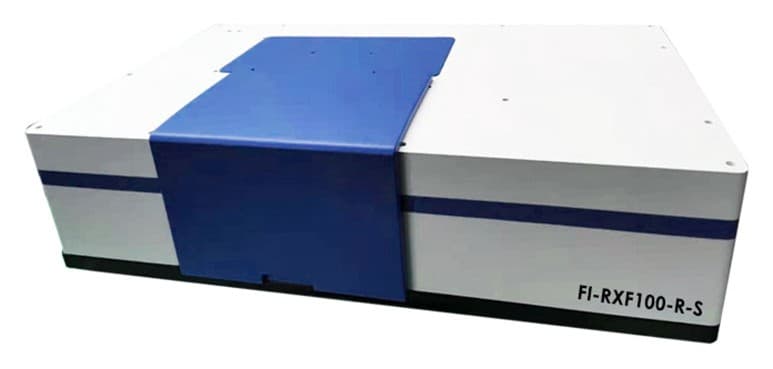

Research FTIR, adjustable aperture
FI-RXF100-R
A research FTIR spectrometer with an external, adjustable high-precision aperture and a large sealed sample compartment that takes transmission cells, ATR accessories and in-situ diffuse reflectance cells for catalyst characterisation. Resolution better than 0.4 cm⁻¹, 8000–350 cm⁻¹.
- Resolution, better than
- 0.4 cm⁻¹
- Spectral range
- 8000–350 cm⁻¹
- In-situ DRIFTS cell
- RT–800 °C
- Weight
- 25 kg

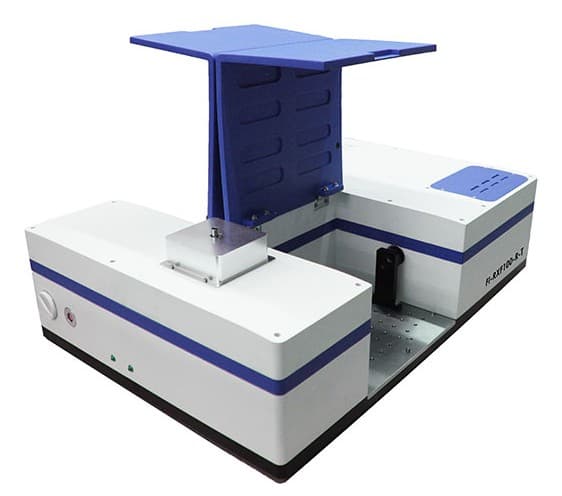

Two sample compartments
FI-RXF100-R-T
A research FTIR system with two independent, equivalent sample compartments and automatic channel switching. Transmission, ATR, diffuse and specular reflectance stay set up in any combination, with a liquid-nitrogen-cooled MCT and a room-temperature DLaTGS detector — for test laboratories and in-situ catalyst work.
- Sample compartments, auto-switched
- 2
- Spectral resolution
- ≤ 0.4 cm⁻¹
- Spectral range
- 8000–350 cm⁻¹
- Detectors
- MCT + DLaTGS

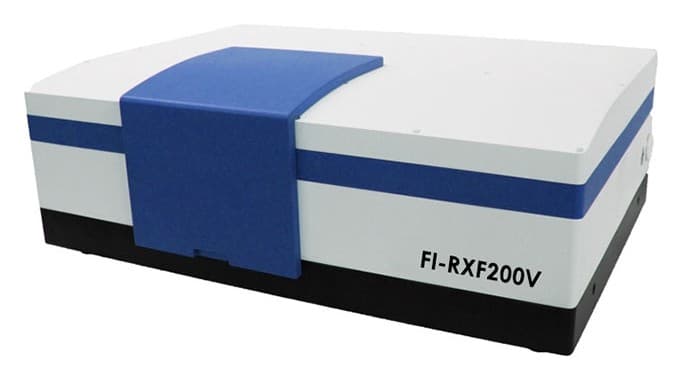

Research-grade FTIR
FI-RXF200
A research FTIR spectrometer with resolution better than 0.25 cm⁻¹ and a range that extends from the standard 8000–350 cm⁻¹ into the near-infrared to 12800 cm⁻¹. Sources and detectors switch automatically; internal and external accessories, from TG-IR to IR microscopy, are supported.
- Resolution, better than
- 0.25 cm⁻¹
- Range with NIR option
- 12800–350 cm⁻¹
- Signal-to-noise ratio
- ≥ 55,000:1
- Transmittance accuracy
- ≤ 0.1 %T
Dedicated analysers
Built Around One Measurement
Quantitative liquids in a rotating transmission head, infrared emission against a reference blackbody, and hot gas in a heated multi-pass cell.

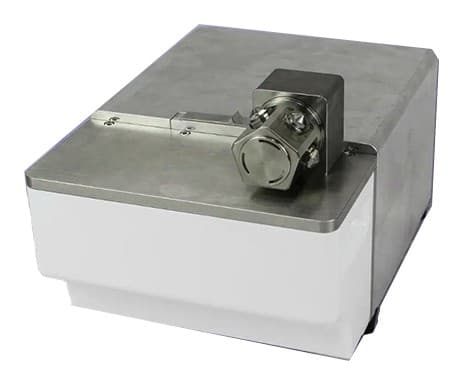

Liquid analyser
FI-RXF100-RT
A liquid analyser that combines the high optical throughput of transmission with the easy sample loading of ATR: one drop on the crystal. Its rotating head carries up to four ZnSe windows of different path lengths — 30, 50, 100, 200 µm or custom — plus a cleaning position.
- Windows + cleaning position
- 4 + 1
- Standard path lengths
- 30–200 µm
- Window crystal
- ZnSe
- ATR reflections matched by 100 µm
- 50 ×

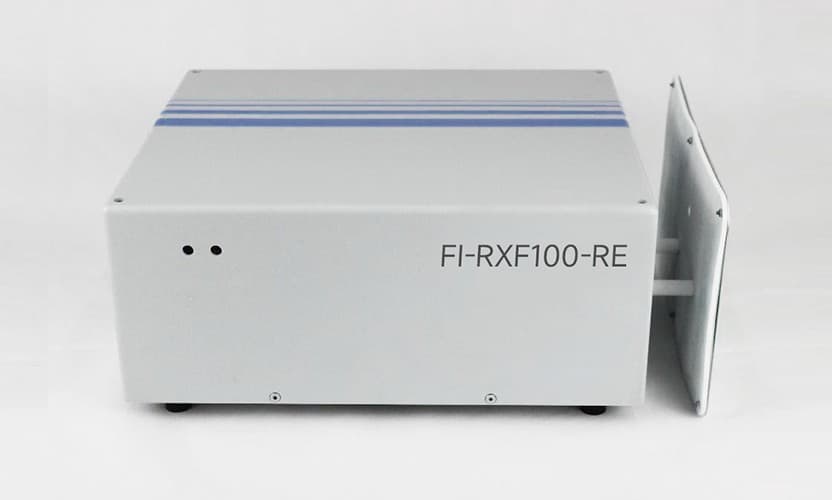

Infrared emission
FI-RXF100-RE
A standalone FTIR spectrometer for infrared emission spectroscopy, with an integrated emission platform for accessories and reference blackbodies, two detector positions and a focused or parallel beam path. 500–5000 cm⁻¹ as standard, extendable to 12500 cm⁻¹.
- Standard range
- 500–5000 cm⁻¹
- Near-IR extension, up to
- 12500 cm⁻¹
- Resolution, better than
- 2 cm⁻¹
- Weight
- 12 kg

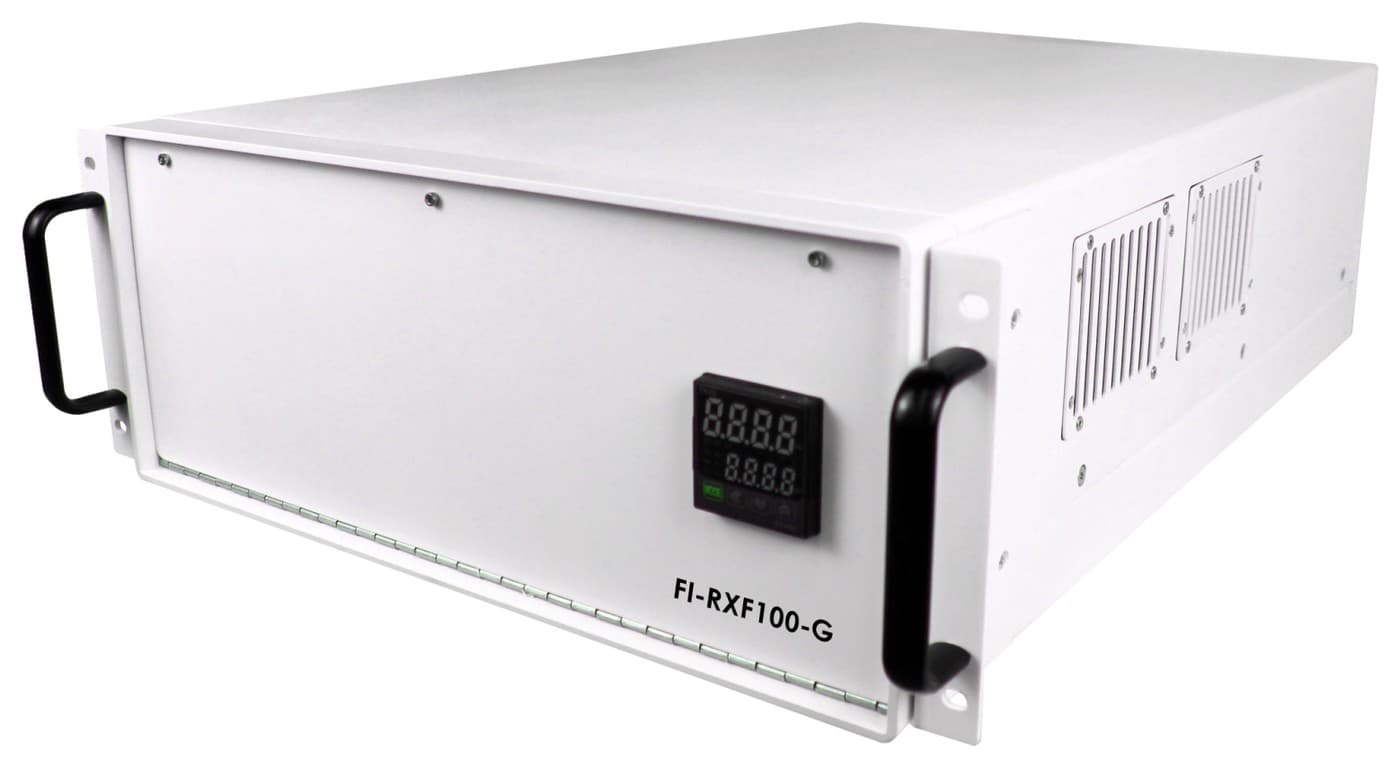

Hot-gas analyser
FI-RXF100-G
A compact FTIR gas analyser with an integrated multi-pass gas cell of 5–9.8 m path length, heated to 180 °C. A dedicated coupling chamber joins spectrometer, gas cell, temperature controller, thermocouple and heat sink, so the beam path is short and practically unaffected by the ambient atmosphere.
- Gas-cell path length
- 5–9.8 m
- Heated gas cell
- 180 °C
- Response time
- T90 < 120 s
- Quantitative calibrations
- 50 gases
Portable and handheld
Identification on Site
A carry-case FTIR with a 10-inch touch screen and a handheld analyser under 4.5 kg, both with diamond ATR and substance libraries.

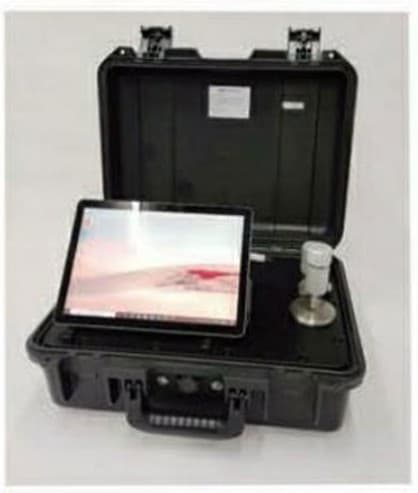

Portable FTIR in a carry case
FI-RXMo100
A self-contained portable FTIR spectrometer for identifying unknown substances in the field, built into a carry case: benchtop-class spectral coverage and resolution, a single-reflection diamond ATR, a 10-inch touch screen and 4 hours on battery. Results in seconds, with no sample preparation.
- Spectral range
- 500–5000 cm⁻¹
- Spectral resolution
- 1 cm⁻¹
- Battery runtime
- 4 h
- Weight
- 10 kg

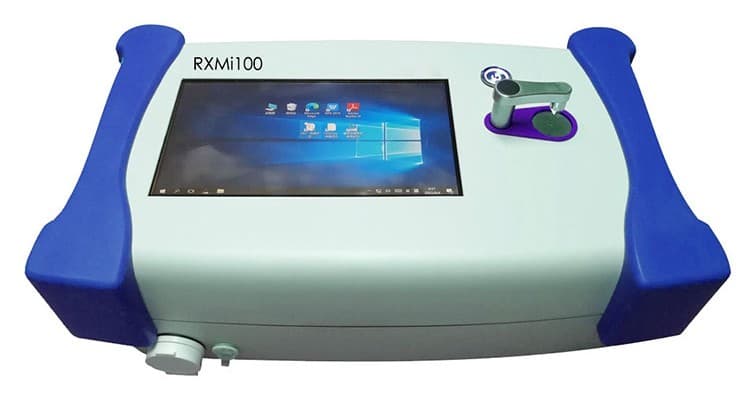

Handheld FTIR
FI-RXMI100
A handheld FTIR analyser, under 4.5 kg, for fast and accurate identification of unknown compounds on site. A 7-inch touch screen, an automatic diamond-ATR press and one-button software measure, search the library and save the result; the library holds more than 40,000 spectra, including more than 2,500 drugs.
- Weight
- < 4.5 kg
- Resolution, better than
- 1 cm⁻¹
- Library spectra
- > 40,000
- Battery runtime
- 4 h
Side by side
Headline Specifications
| Model | Type | Spectral range | Resolution | Detector | Sampling | Size and weight |
|---|---|---|---|---|---|---|
| FI-RXF50 | Entry-level benchtop FTIR | 5000–500 cm⁻¹ (ZnSe) · 8000–350 cm⁻¹ (KBr) | < 0.9 cm⁻¹ | Pyroelectric | ATR, transmission, diffuse and specular reflectance, gas cell | 17 × 39.5 × 22.3 cm |
| FI-RXF100 | Compact benchtop FTIR | 7800–350 cm⁻¹ (KBr) · 5000–500 cm⁻¹ (ZnSe) | 0.9 cm⁻¹ | DLaTGS | Diamond ATR; transmission and reflection modules | 310 × 215 × 210 mm · 8 kg |
| FI-RXF100-R | Research FTIR, adjustable aperture | 8000–350 / 5000–500 cm⁻¹ | < 0.4 cm⁻¹ | DLaTGS; LN₂-cooled MCT option | Transmission, ATR, DRIFTS; in-situ cells | 685 × 415 × 223 mm · 25 kg |
| FI-RXF100-R-T | Two sample compartments | 8000–350 / 5000–500 cm⁻¹ | ≤ 0.4 cm⁻¹ | LN₂-cooled MCT + DLaTGS | Two compartments, any combination of modes | 750 × 515 × 223 mm |
| FI-RXF200 | Research-grade FTIR | 8000–350 cm⁻¹; 12800–4000 cm⁻¹ option | ≤ 0.25 cm⁻¹ | DLaTGS; MCT, InSb, Ge and InGaAs options | Internal and external accessories, TG-IR, GC-IR, microscopy | — |
| FI-RXF100-RT | Liquid analyser | — | — | DLaTGS or MCT | Rotating ZnSe transmission head, 30–200 µm | — |
| FI-RXF100-RE | Infrared emission | 500–5000 cm⁻¹; to 12500 cm⁻¹ option | < 2 cm⁻¹ | Room-temperature; cooled MCT or InGaAs | Emission platform, blackbody, focused or parallel beam | 44 × 33 × 18 cm · 12 kg |
| FI-RXF100-G | Hot-gas analyser | 500–5000 cm⁻¹ | < 1 cm⁻¹ | DTGS; TE-cooled MCT option | Multi-pass gas cell, 5–9.8 m, heated to 180 °C | 590 × 430 × 176 mm · 18 kg |
| FI-RXMo100 | Portable FTIR in a carry case | 500–5000 cm⁻¹ | 1 cm⁻¹ | DLaTGS | Single-reflection diamond ATR | 41 × 32 × 17 cm · 10 kg |
| FI-RXMI100 | Handheld FTIR | 5000–500 cm⁻¹ | < 1 cm⁻¹ | DLaTGS | Diamond ATR with automatic press | 26 × 16.3 × 12.8 cm · < 4.5 kg |
Which FTIR fits your samples?
Tell us what you measure — solids, liquids, gases, emission or unknowns in the field — and we will recommend the instrument and sampling accessories and send a quotation.
