FI-RXF50
FI-RXF50 FTIR Spectrometer
An entry-level FTIR spectrometer, more compact than the FI-RXF100, with a permanently aligned interferometer and user-replaceable source and desiccant. Takes ATR, transmission, diffuse reflectance, specular reflectance and gas-cell accessories; 5000–500 cm⁻¹ in the moisture-resistant ZnSe version, 8000–350 cm⁻¹ with KBr.
5000–500 cm⁻¹
Spectral range, ZnSe version
0.9 cm⁻¹
Resolution, better than
0.01 cm⁻¹
Wavenumber accuracy, better than
17 × 39.5 × 22.3 cm
Dimensions
Overview
About the FI-RXF50
The FI-RXF50 combines a small footprint with strong performance. It is more compact than the FI-RXF100 while keeping excellent performance figures, and it accepts a range of accessories, so sampling is flexible and operation is simple: an entry-level FTIR spectrometer.

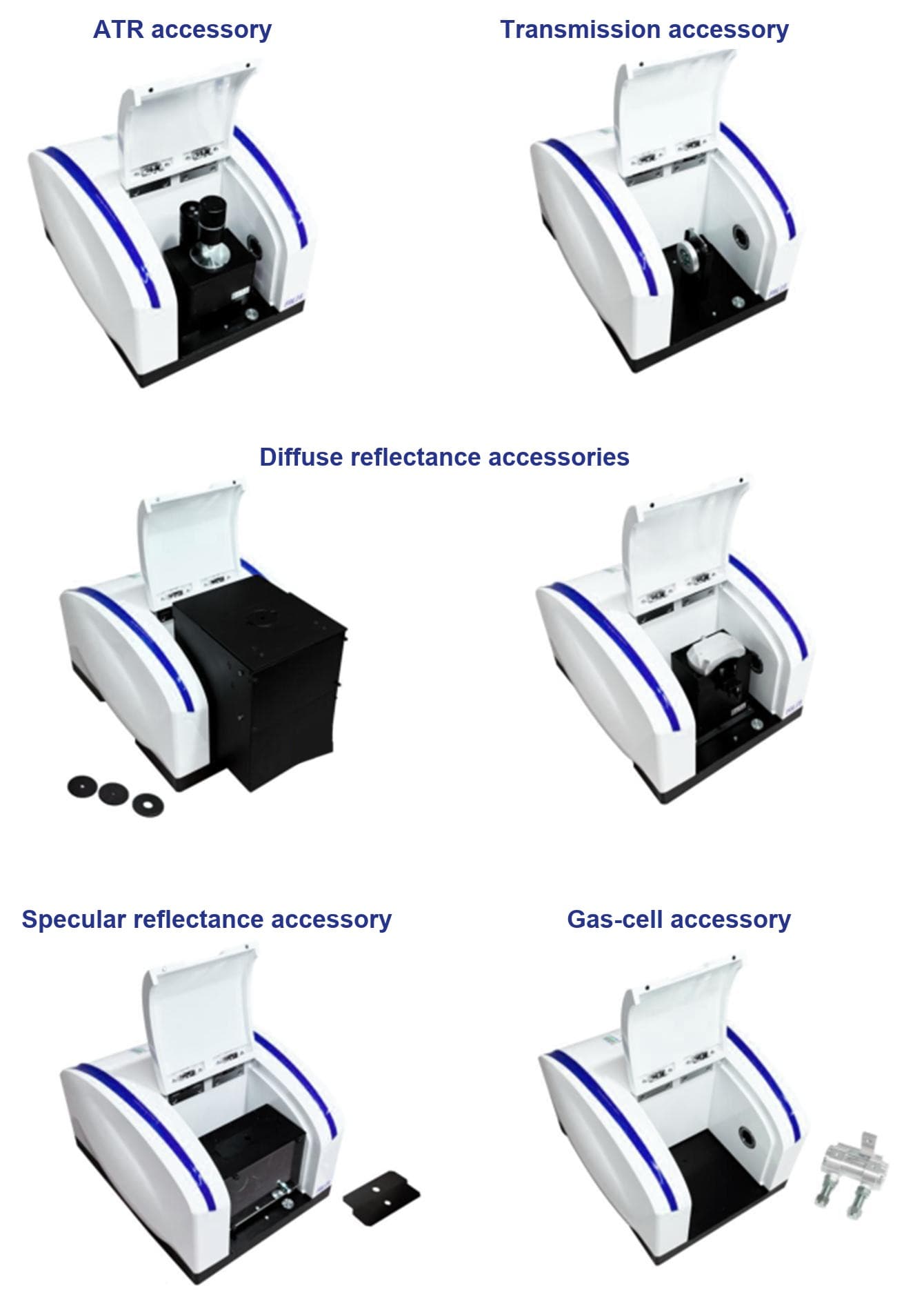

It is a highly integrated instrument for sampling unknown chemicals and identifying them quickly — solids, liquids, powders and viscous samples. Compact, rugged and light, it takes ATR, transmission, diffuse reflectance, specular reflectance and gas-cell sampling accessories.
Features
Compact and durable
- Rugged design for trouble-free operation in harsh environments
- Durable diode laser for years of trouble-free operation
- User-replaceable parts keep maintenance down
- Tolerates a wide range of temperature and humidity
- Permanently aligned interferometer with excellent mechanical stability, shock resistance and tolerance of high temperatures
Easy maintenance

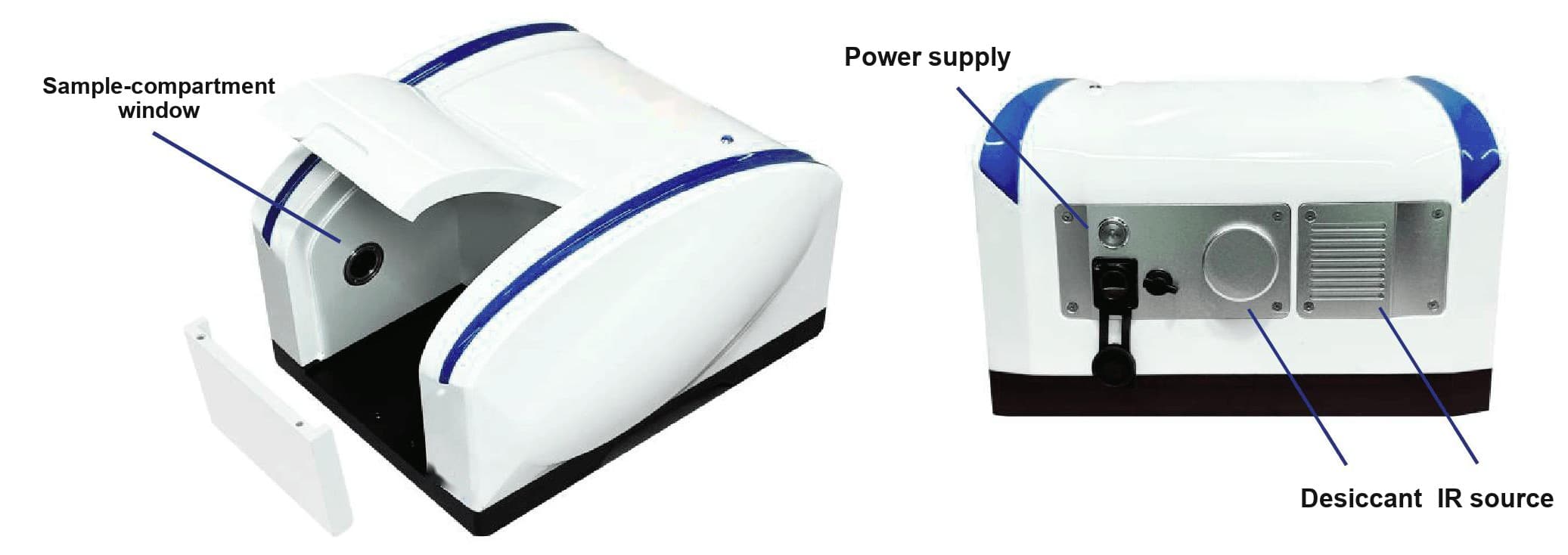

- User-replaceable IR source, desiccant, power supply and sample-compartment windows
- The IR source and the desiccant are changed without opening the optical bench
Applications
- Teaching and demonstration in academic laboratories
- Industrial QA/QC
- Qualitative and quantitative analysis in pharmaceuticals
- Qualitative infrared testing of organic polymers and plastics
- Rapid identification of unknown chemicals: solids, liquids, powders and viscous samples
Technical Specifications
FI-RXF50 Specifications
Optics
| Spectral range | 5000–500 cm⁻¹ (moisture-resistant ZnSe version); 8000–350 cm⁻¹ available (standard KBr version) |
|---|---|
| Spectral resolution | Better than 0.9 cm⁻¹ |
| Wavenumber accuracy | Better than 0.01 cm⁻¹ |
| Interferometer | High-stability cube-corner interferometer, permanently aligned, service life over 10 years |
| Beamsplitter | Ge-coated KBr, optimised for the mid-infrared (moisture-resistant ZnSe version optional) |
| Detector | Fast-response pyroelectric detector |
| IR source | High-energy mid-infrared silicon nitride source, user-replaceable |
| Laser | Solid-state laser, service life over 10 years |
System
| Interface | Network (LAN) |
|---|---|
| Power | 100–240 V, 50–60 Hz |
| Sealed, desiccated optics | Sealed against moisture; the software shows the internal temperature and humidity in real time with an automatic humidity alarm; regenerable screw-in desiccant tube in the base plate |
| Dimensions | 17 × 39.5 × 22.3 cm |
Figures
Photos, Drawings and Spectra
Datasheet
Full specification sheet for the FI-RXF50.
