FI-RXF100-G
FI-RXF100-G Portable High-Temperature FTIR Gas Analyser
A compact FTIR gas analyser with an integrated multi-pass gas cell of 5–9.8 m path length, heated to 180 °C. A dedicated coupling chamber joins spectrometer, gas cell, temperature controller, thermocouple and heat sink, so the beam path is short and practically unaffected by the ambient atmosphere.
5–9.8 m
Gas-cell path length
180 °C
Heated gas cell
T90 < 120 s
Response time
50 gases
Quantitative calibrations
Overview
About the FI-RXF100-G
Easy to use, capable, compact and robust: the FI-RXF100-G is an infrared spectrometer that anyone can use, anywhere. A practically maintenance-free optical system and a proven interferometer design give accurate, repeatable measurements day after day, and its fully integrated, reliable sampling and portable accessories suit it to the laboratory and to field testing.
The compact gas analyser integrates a long-path gas cell. A purpose-designed coupling chamber combines the spectrometer with the gas cell, temperature controller, thermocouple and heat sink, so the beam path is short and practically unaffected by the surrounding atmosphere. The online system is designed for waste incineration and online environmental gas monitoring.
Features
Hardware
- Interferometer: excellent performance, reliability and stability, with strong immunity to interference; 10-year service life
- Optics: gold-coated mirrors throughout, with reflectance more than 5 % higher than aluminium; oxidation-resistant for more stable optical performance
- Detectors: high-sensitivity DTGS, TE-cooled MCT and liquid-nitrogen-cooled MCT
- Solid-state laser: stable performance, service life over 10 years
- Source: high performance, service life over 10 years
For gas analysis
- Small, for integration into online analysis systems at industrial sites
- Advanced cube-corner interferometer, permanently aligned beam path, excellent stability
- ZnSe beamsplitter and windows, suited to industrial sites and protected against moisture
- Gas cells of different path lengths to suit the concentrations you measure
- Built-in high-sensitivity DTGS detector runs at ambient temperature, with no liquid nitrogen or other cooling; TE-cooled MCT optional
- Optional purge port for the beam path, depending on site conditions
- Optional heated line and temperature controller for use with the FTIR
- Simultaneous analysis of several gas components, with real-time monitoring of concentration trends
- Runs on a laboratory bench or installed in a portable mobile case for online monitoring
Applications
- Environmental emergency monitoring
- Occupational health monitoring on site
- Industrial process analysis and control
- Catalytic conversion research
- Stack emission testing
- Waste incineration and combustion emission monitoring
Especially suited to
- Simultaneous analysis of several components
- Hot, humid sample gas
- Complex gas composition
- Demanding test conditions
Technical Specifications
FI-RXF100-G Specifications
Spectrometer
| Interferometer | High-stability cube-corner Michelson interferometer, suited to industrial sites |
|---|---|
| Beamsplitter | Moisture-resistant ZnSe |
| IR source | Air-cooled mid-infrared ceramic source, 1550 K |
| Detector | High-sensitivity DTGS |
| Laser | Solid-state laser |
| Spectral range | 500–5000 cm⁻¹ |
| Spectral resolution | Better than 1 cm⁻¹ (2, 4 or 8 cm⁻¹ selectable in the software) |
| Spectral repeatability | < 0.01 cm⁻¹ |
| Linearity error | ≤ ±2 % F.S. |
| Repeatability | ≤ 2 % |
| Response time | T90 < 120 s |
| System dimensions | 590 × 430 × 176 mm (L × W × H, with gas cell, without handles) |
| Weight | 18 kg with main unit, gas cell, coupling chamber, base plate, gold-coated mirror set, heating system and heat sink; depends on configuration |
| Power | 220 V, 50 Hz |
Gas cell
| Type | Multi-pass long-path gas cell, stainless steel |
|---|---|
| Path length | 5–9.8 m; other path lengths to order |
| Mirrors | Multi-layer gold coating with anti-corrosion treatment |
| Heating | Heating system and temperature controller, 180 °C |
| Inlet and outlet | 6 mm diameter |
| Acquisition | Single, continuous or fully automatic |
Sampling and calibration
| Heated sampling | 1.5 m heated sampling probe and 3 m heated line, operating temperature 200 °C |
|---|---|
| Warm-up time | ≤ 15 min |
| Calibration libraries | Quantitative calibrations for 50 gases included; user-built spectra; qualitative library upgradeable to more than 40,000 spectra |
Figures

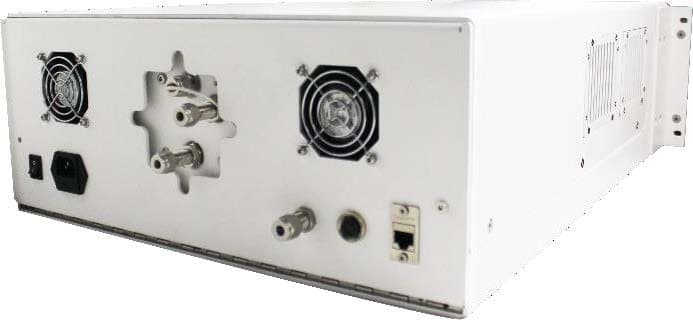

Photos, Drawings and Spectra
Datasheet
Full specification sheet for the FI-RXF100-G.
