FI-RXF100-RT
FI-RXF100-RT Rotating-Transmission FTIR Liquid Analyser
A liquid analyser that combines the high optical throughput of transmission with the easy sample loading of ATR: one drop on the crystal. Its rotating head carries up to four ZnSe windows of different path lengths — 30, 50, 100, 200 µm or custom — plus a cleaning position.
4 + 1
Windows + cleaning position
30–200 µm
Standard path lengths
ZnSe
Window crystal
50 ×
ATR reflections matched by 100 µm
Overview
About the FI-RXF100-RT
High transmission throughput, simple to use. The FI-RXF100-RT combines the high optical throughput of the transmission method with the easy sample preparation of ATR, and its rotating head takes up to four optical windows of different path lengths plus one cleaning position, to meet different testing needs.

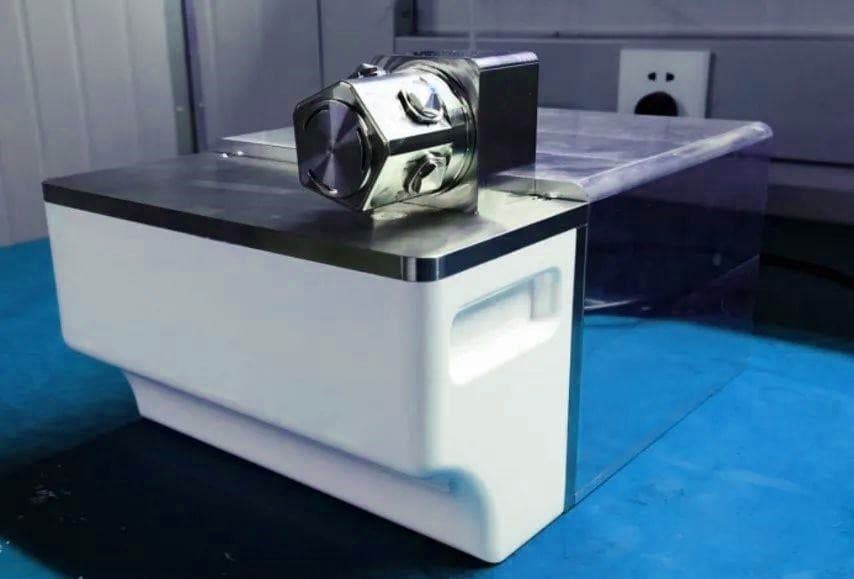

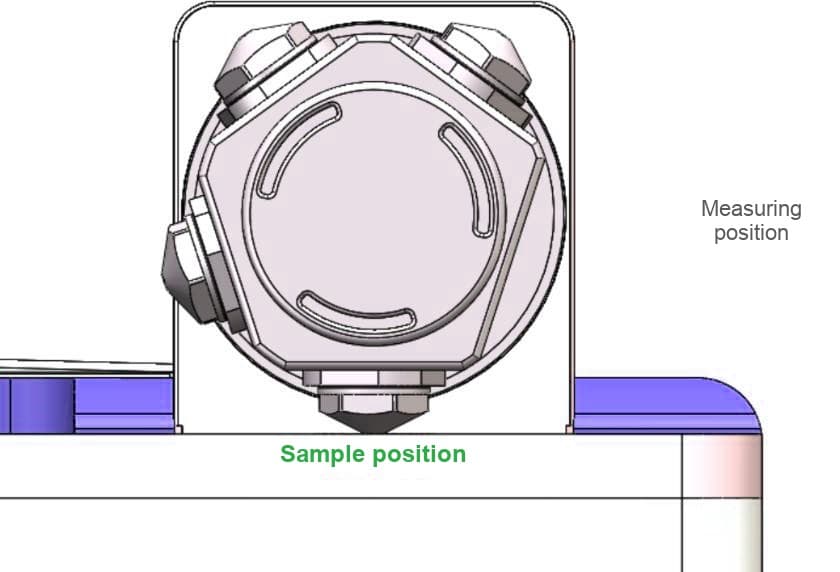

The rotating transmission module is integrated with the FTIR main unit and uses high-throughput ZnSe crystals for excellent sensitivity. The indexed rotating head turns clockwise or anticlockwise and keeps sampling precise and repeatable. Fit one to four windows of fixed path length as needed, and add other path lengths later.
Path lengths of 30, 50, 100 and 200 µm are available, as well as custom path lengths. 100 µm is the usual choice for quantitative liquid analysis; converted to ATR it is equivalent to 50 reflections at 1000 cm⁻¹, which is why the transmission sensitivity is so high. The path length of the rotating module corresponds to the thickness of a liquid cell.
Features
Advantages over conventional liquid measurement
- Windows of different path lengths fitted at once and switched by rotating the head
- Loading is simple and quick: one drop of liquid on the crystal, as with ATR
- High-sensitivity, high signal-to-noise spectra, fast
- Easy cleaning
- Rotating heads with custom path lengths to suit your concentration range
- DLaTGS or MCT detector
Applications
- Organic solutions
- Organic solvents
- Quantitative analysis of oils and their impurities
- Aqueous systems
Technical Specifications
FI-RXF100-RT Specifications
Rotating transmission module
| Design | Rotating transmission module integrated with the FTIR main unit |
|---|---|
| Crystal | ZnSe, high throughput |
| Positions | Up to four windows of fixed path length plus one cleaning position; further path lengths can be added later |
| Path lengths | 30, 50, 100 and 200 µm, or custom |
| Rotating head | Indexed; turns clockwise or anticlockwise |
| Detector | DLaTGS or MCT |
| Platform | FI-RXF100 series; can also be configured as a mobile spectrometer |
Figures
Photos, Drawings and Spectra
Datasheet
Full specification sheet for the FI-RXF100-RT.
