Featured

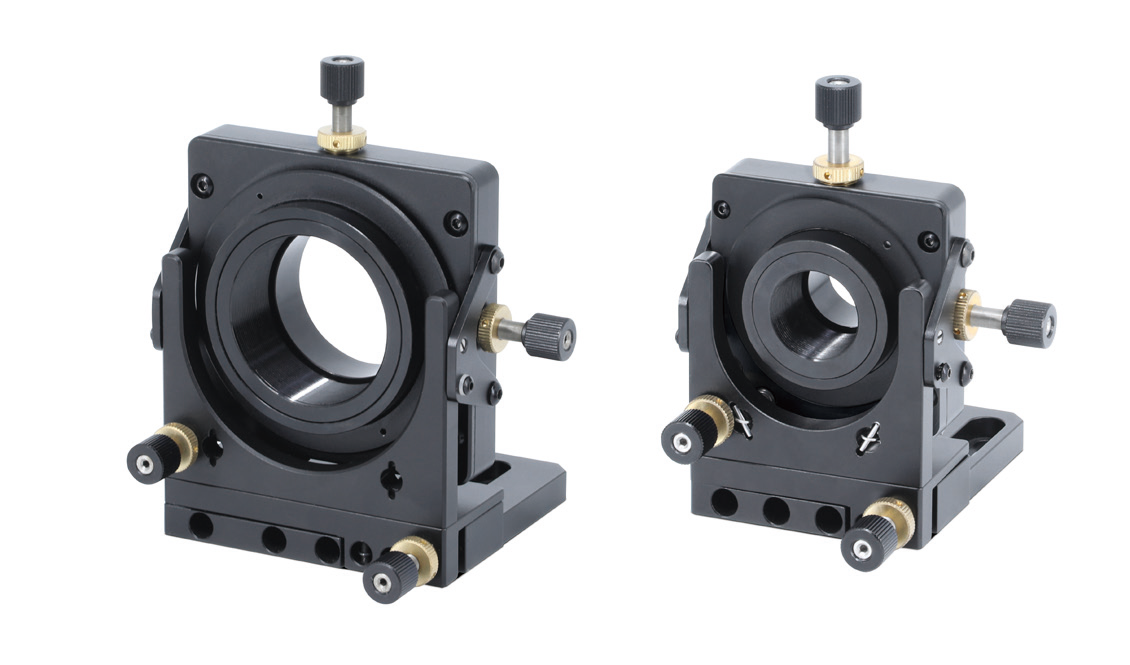

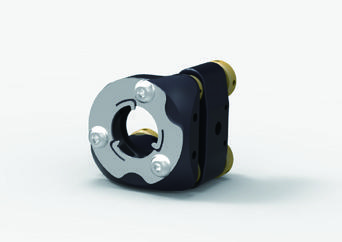

Kinematic mirror mounts — catalog & interactive builder
Featured

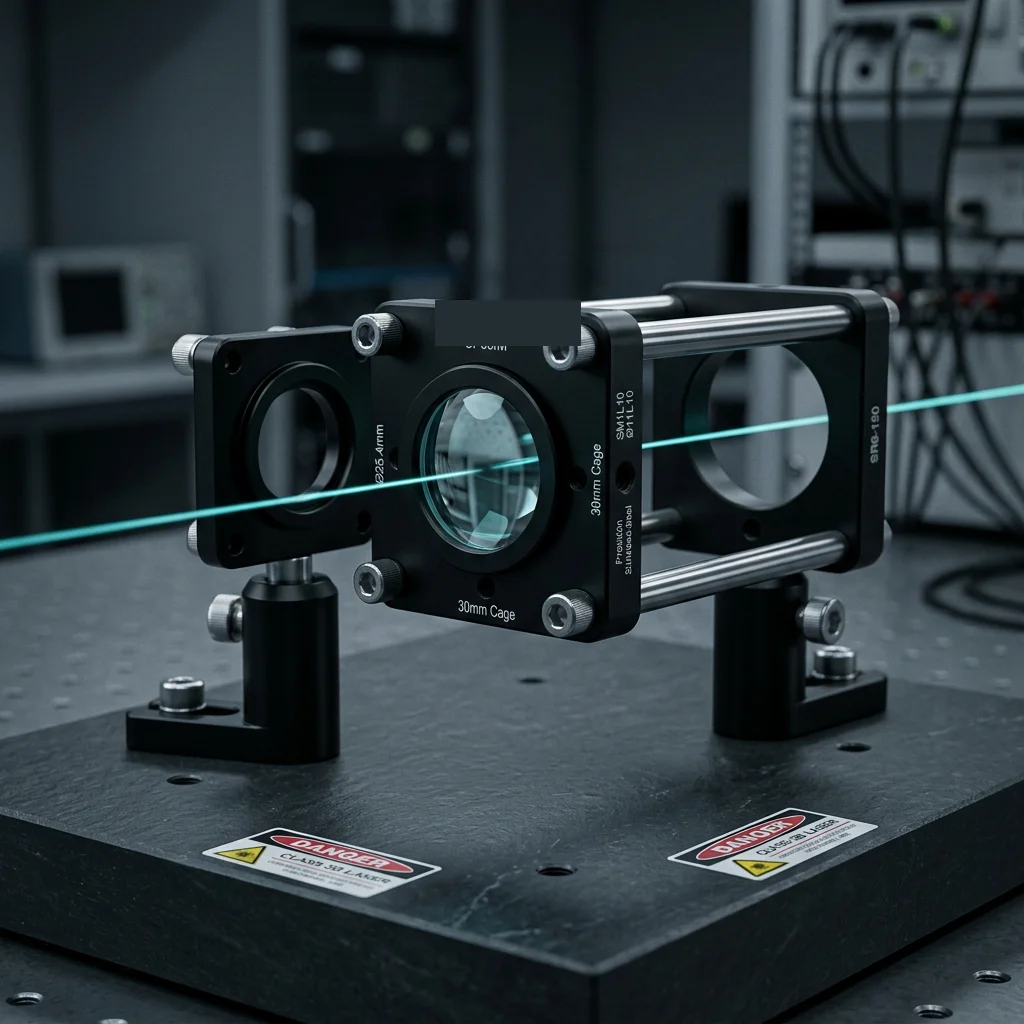

30 mm cage plates, cubes & rods — catalog & builder
Where these are used
The parts between the optic and the table decide how well everything above them performs. Most alignment problems trace back to a post, a clamp or a bracket rather than the optic itself.
Posts, holders and bases set beam height and hold every element in the path at a consistent, repeatable reference.
Retain optics without inducing stress birefringence or distorting a surface figure that was specified to a fraction of a wave.
Keep a whole setup on one deck height so components can be swapped between positions without realigning the whole path.
Bridge thread standards, mounting patterns and vendor ecosystems where parts were never designed to meet.
Replace worn or damaged hardware on an existing setup without disturbing the alignment of everything around it.
Hard-wearing standard parts that survive frequent reconfiguration in multi-user labs and student teaching setups.
Before you specify
Posts, mounts and beam height chosen against a stability budget instead of a preference.

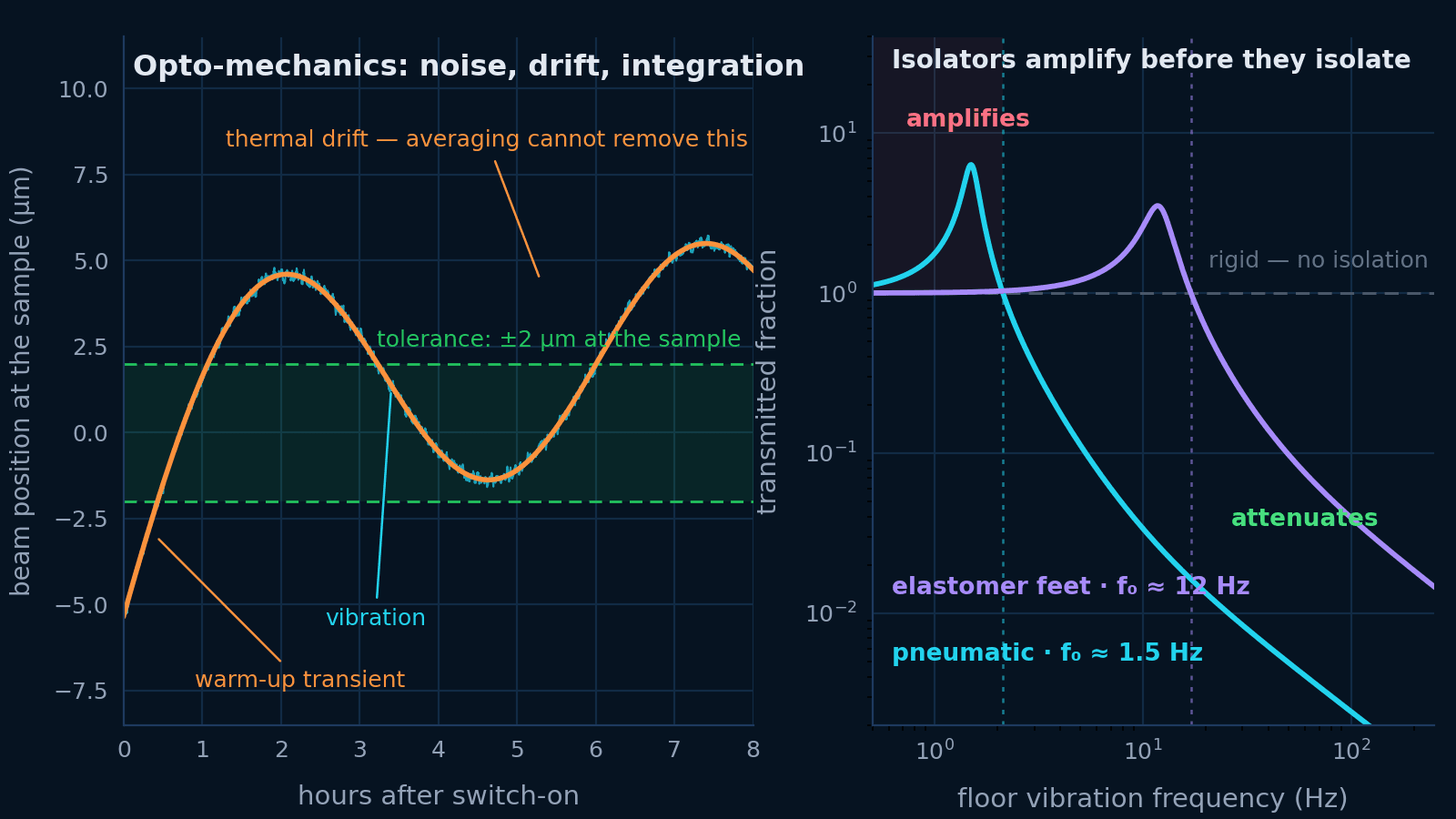

Opto-mechanicsVibration, thermal drift and mechanical integration are one problem. Budget the motion at the sample, then specify the table, the isolation, the mounts and the beam height that budget asks for.
Open guide
Optical microscopyDesign the trapping beam, objective, mechanics, imaging, QPD detection, calibration, and safety workflow as one instrument.
Open guide
