Precisometer

XCAMTOP4K Series

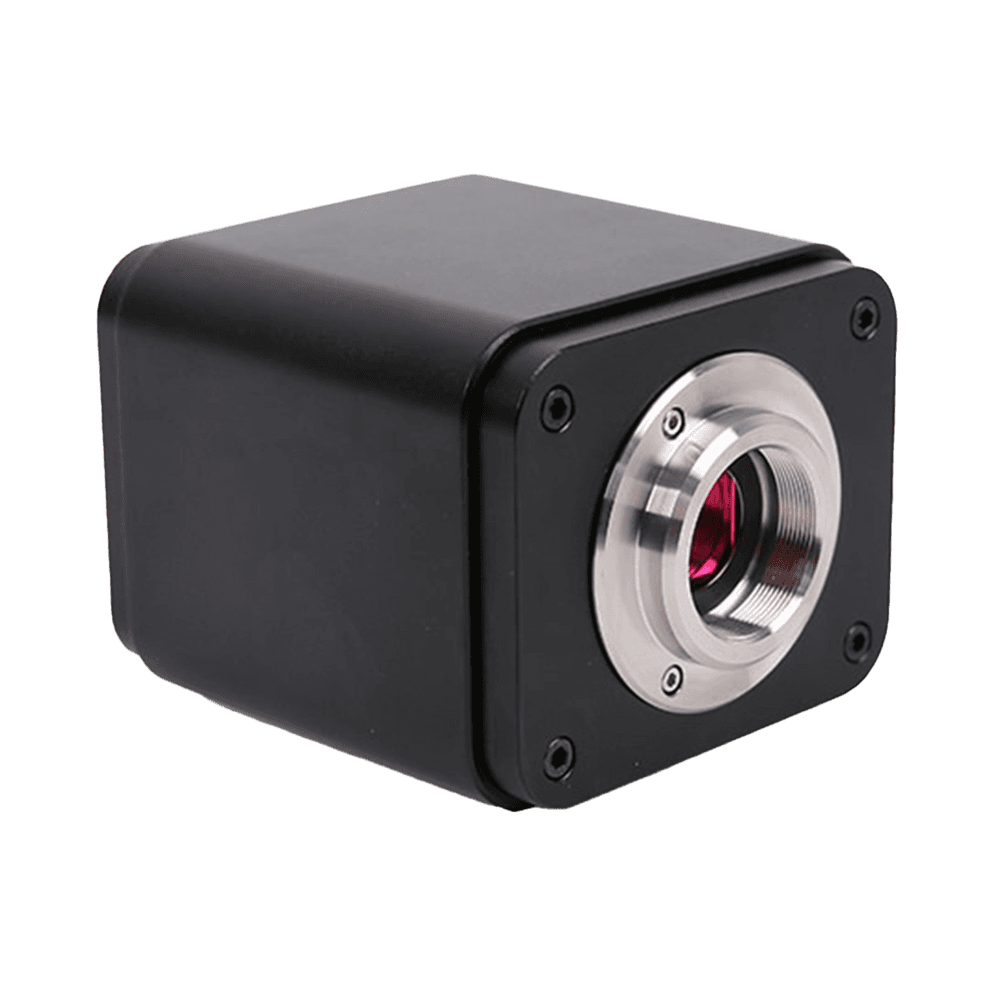

XCAMTOP4K8MPC

XCAMTOP4K8MPC Multi-Interface Output Camera with Sony IMX678(C) sensor, 8MP (3840×2160) for autofocus imaging.

Sensor
Sony IMX678(C)
Resolution
8MP (3840×2160)
Pixel Size
2.0 μm × 2.0 μm
Frame Rate
30 fps@3840×2160
Interface
HDMI1.4, LAN, Wi-Fi, USB Video
Datasheet (PDF)Back to Intelligent Imaging Cameras
XCAMTOP4K8MPC

Specifications

XCAMTOP4K8MPC

20 specification rows

The XCAMTOP4K8MPC is an intelligent imaging camera in the XCAMTOP4K series, built around a Sony IMX678(C) sensor, 8MP (3840×2160) resolution, 2.0 μm × 2.0 μm pixels, frame rates up to 30 fps@3840×2160, a HDMI1.4, LAN, Wi-Fi, USB Video interface. It suits xcamtop4k series where reliable imaging performance and interface compatibility matter.

Key Parameters

Product ModelXCAMTOP4K8MPC
Product SeriesHDMI/NETWORK/USB multi-output camera

Sensor Parameters

Sensor ModelSony IMX678(C)
Sensor Size1/1.8" (7.68×4.32 mm)
Diagonal1/1.8"
Pixel Size2.0 μm × 2.0 μm
Resolution8MP (3840×2160)
Shutter TypeRolling shutter
Color TypeColor

Performance Parameters

Frame Rate30 fps@3840×2160
Output InterfacesHDMI1.4, LAN, Wi-Fi, USB Video
Lens MountC-mount
Storage SupportSD card, USB drive
Software SupportXCamView, ToupView, ToupLite

Physical Parameters

Power SupplyDC 12 V/1A
DimensionsL:25.5 cm W:17.0 cm H:9.0 cm
Weight1.57 kg

Environmental Parameters

Operating Temperature10 °C ~ 50 °C, Storage temperature: -20 °C ~ 60 °C

Other Information

OS SupportWindows XP/7/8/10/11, macOS 10.10+, Linux
CertificationCE, FCC
