Color · XCAMTOP4K Series

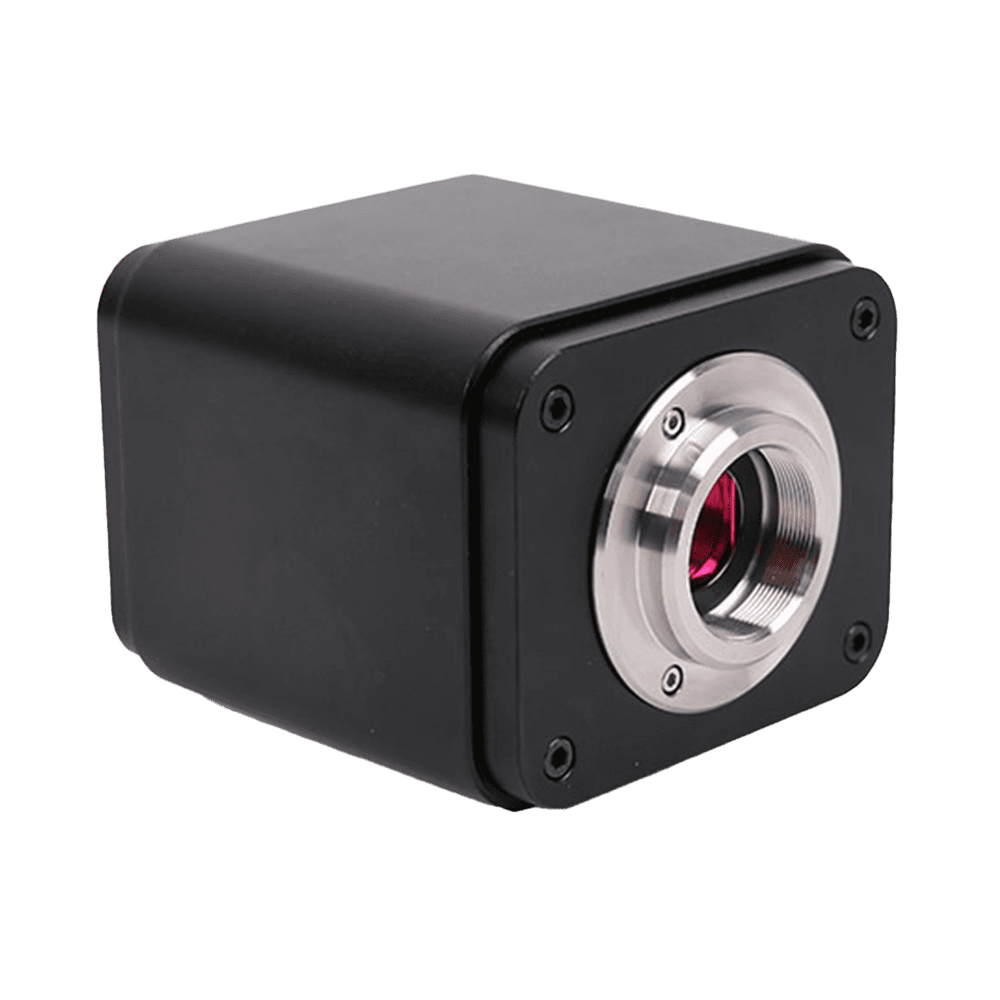

XCAMTOP4K8MPA
- Sensor
- Sony IMX334(C)
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 2.0 μm × 2.0 μm
- Frame Rate
- 30 fps@3840×2160
- Interface
- HDMI1.4, LAN, Wi-Fi, USB Video
Complete Specifications
Sensor & Imaging
| Sensor Model | Sony IMX334(C) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 1/1.8" |
| Pixel Size | 2.0 μm × 2.0 μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Sensor | Sony IMX334(C) |
Performance
| Frame Rate | 30 fps@3840×2160 |
|---|
Interface & Connectivity
| Output Interfaces | HDMI1.4, LAN, Wi-Fi, USB Video |
|---|---|
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| OS Support | Windows XP/7/8/10/11, macOS 10.10+, Linux |
| Interface | HDMI1.4, LAN, Wi-Fi, USB Video |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | DC 12 V/1A |
| Dimensions | L:25.5 cm W:17.0 cm H:9.0 cm |
| Weight | 1.57 kg |
| Operating Temperature | 10 °C ~ 50 °C, Storage temperature: -20 °C ~ 60 °C |
Other Published Specifications
| Product Model | XCAMTOP4K8MPA |
|---|---|
| Product Series | HDMI/NETWORK/USB multi-output camera |
| Certification | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | XCAMTOP4K8MPA (current) | AFDM423Same IMX334 sensor | CXCAM1080P8MPASame IMX334 sensor | E3ISPM08300KPBSame IMX334 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX334(C) | Sony IMX334 (C) | Sony IMX334 (Color) | IMX334 (C) |
| Image type | Color | Color | Color | Color |
| Resolution | 8MP (3840×2160) | 8MP (3840×2160) | 8 MP (3840×2160) | 8.3M (3840×2160) |
| Pixel size | 2.0 μm × 2.0 μm | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm |
| Frame / line rate | 30 fps@3840×2160 | HDMI: 30 fps@3840×2160; Network: 30 fps@1920×1080; USB: 30 fps@3840×2160 | Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080 | 35 fps @ 3840×2160; 60 fps @ 1920×1080 |
| Interface | HDMI1.4, LAN, Wi-Fi, USB Video | HDMI, USB, Network | Type-C Monitor, USB Video, Wi-Fi | USB3.0 |
| Cooling / shutter | Rolling shutter | Rolling shutter | Rolling shutter | Rolling Shutter |
