XCAMTOP4K Series

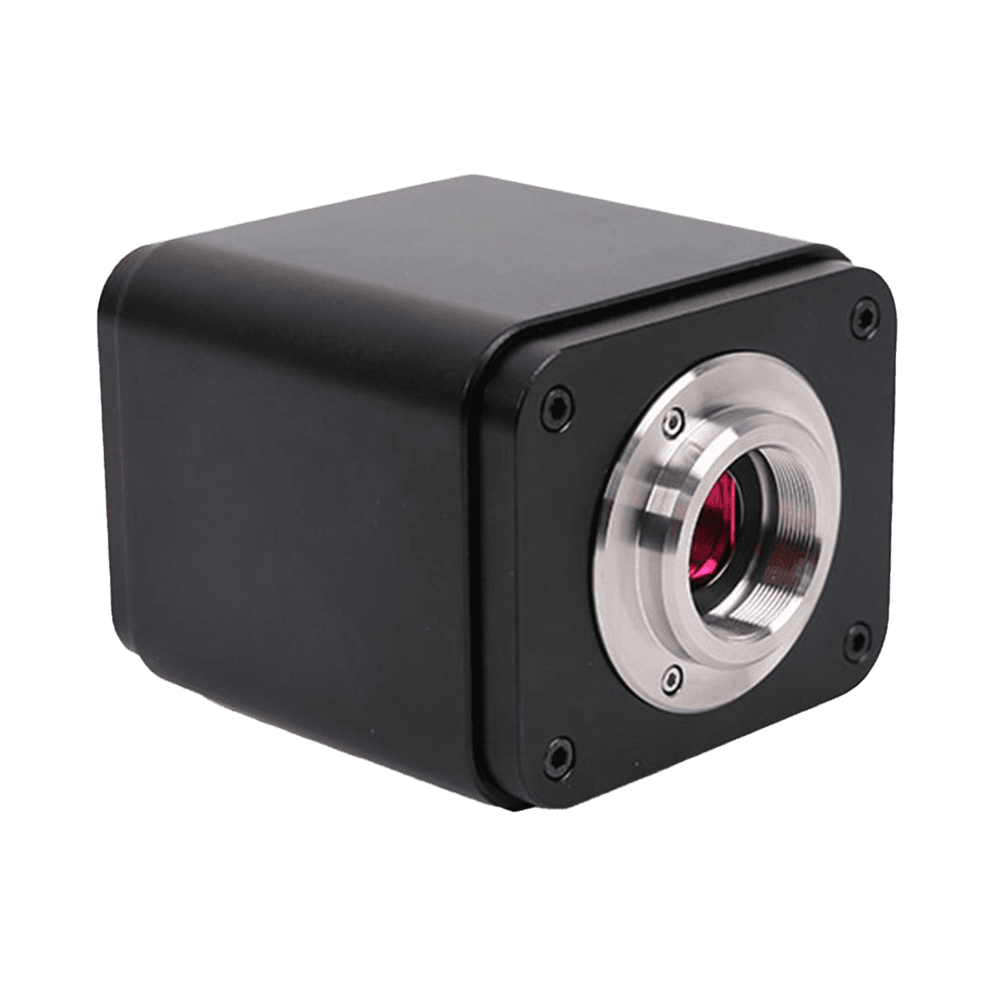

XCAMTOP4K8MPC Multi-Interface Output Camera with Sony IMX678(C) sensor, 8MP (3840×2160) for autofocus imaging.
Application context
XCAMTOP4K8MPC: The Sony IMX678(C) sensor, 8MP (3840×2160) resolution, and 2.0 μm × 2.0 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
XCAMTOP4K8MPC: The Sony IMX678(C) sensor, 8MP (3840×2160) resolution, and 2.0 μm × 2.0 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The XCAMTOP4K8MPC is an intelligent imaging camera in the XCAMTOP4K series, built around a Sony IMX678(C) sensor, 8MP (3840×2160) resolution, 2.0 μm × 2.0 μm pixels, frame rates up to 30 fps@3840×2160, a HDMI1.4, LAN, Wi-Fi, USB Video interface. It suits xcamtop4k series where reliable imaging performance and interface compatibility matter.
| Product Model | XCAMTOP4K8MPC |
|---|---|
| Product Series | HDMI/NETWORK/USB multi-output camera |
| Sensor Model | Sony IMX678(C) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 1/1.8" |
| Pixel Size | 2.0 μm × 2.0 μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | 30 fps@3840×2160 |
|---|---|
| Output Interfaces | HDMI1.4, LAN, Wi-Fi, USB Video |
| Lens Mount | C-mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V/1A |
|---|---|
| Dimensions | L:25.5 cm W:17.0 cm H:9.0 cm |
| Weight | 1.57 kg |
| Operating Temperature | 10 °C ~ 50 °C, Storage temperature: -20 °C ~ 60 °C |
|---|
| OS Support | Windows XP/7/8/10/11, macOS 10.10+, Linux |
|---|---|
| Certification | CE, FCC |
System integration
Use these checks to connect XCAMTOP4K8MPC to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX678(C) · Resolution: 8MP (3840×2160). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 30 fps@3840×2160 · Interface: HDMI1.4, LAN, Wi-Fi, USB Video. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare XCAMTOP4K8MPC with the closest available models in the XCAMTOP4K family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | XCAMTOP4K8MPC (current) | XCAMTOP4K8MPB (Discontinued) | XCAMTOP4K8MPD |
|---|---|---|---|
| Sensor | Sony IMX678(C) | Sony IMX485(C) | Sony IMX585(C) |
| Resolution | 8MP (3840×2160) | 8MP (3840×2160) | 8MP (3840×2160) |
| Sensor size | 1/1.8" (7.68×4.32 mm) | 1/1.2" (11.14×6.26 mm) | 1/1.2" (11.14×6.26 mm) |
| Pixel size / frame rate | 2.0 μm × 2.0 μm | 2.9 μm × 2.9 μm | 2.9 μm × 2.9 μm |
The IMX678 appears in 16 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the XCAMTOP4K8MPC with other XCAMTOP4K models and intelligent imaging cameras in the range.
