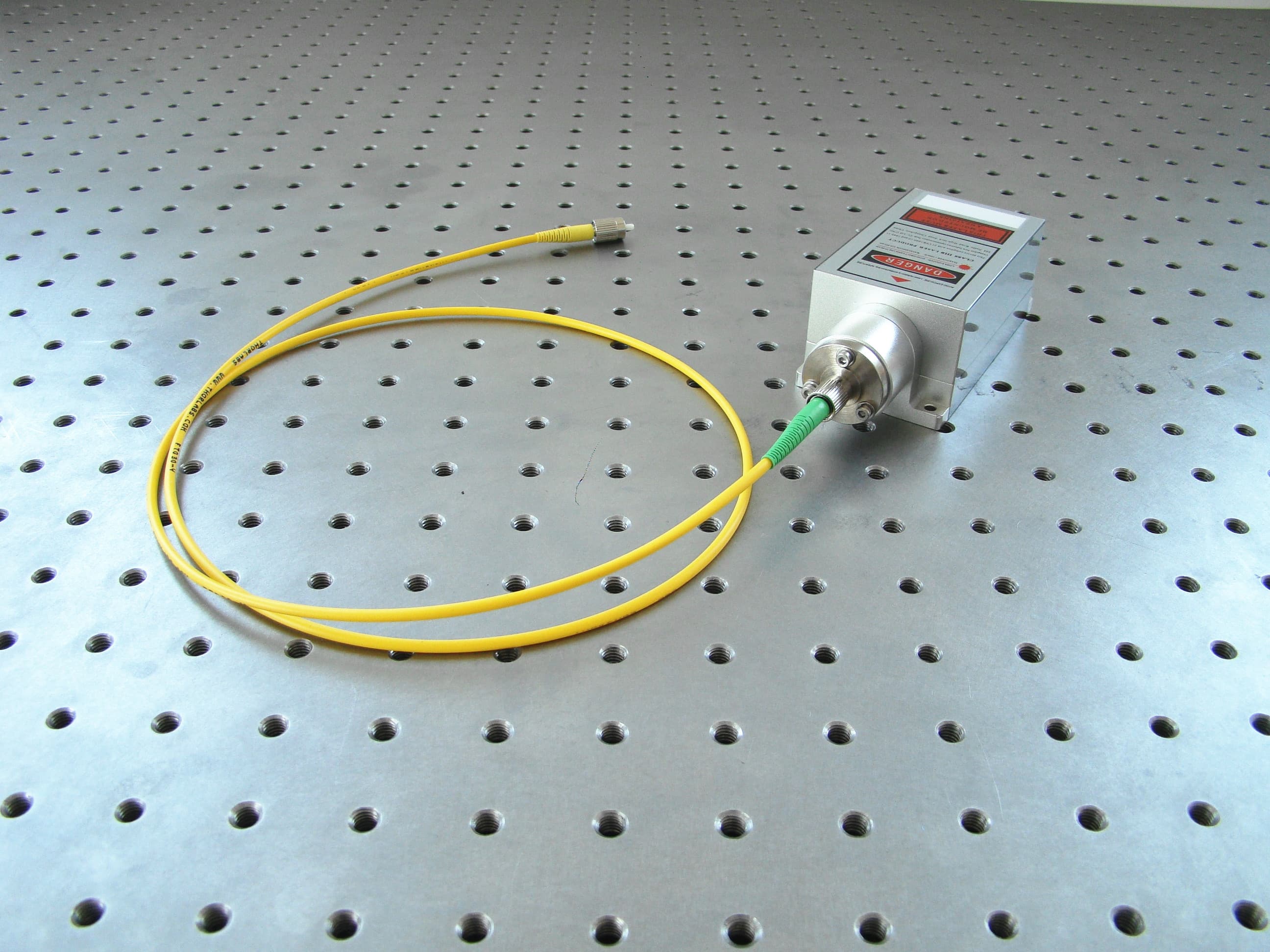

Fiber Coupling Lasers — 220 models | Laser Selector

Browse 26 product families

Choose a series to compare its wavelength models and open their specifications.

220 models · 62 series

405nm CW Pulse Violet Blue Laser

5 models

Model	Wavelength	Output / average power	Power stability	Power stability(rms, over 4 hours)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time	Expected lifetime (hours)	Warranty (years)	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of laser head	stability	Operating voltage(internal PCB)	Modulation optional	Operating temperature (°C)	Storage temperature (°C)	Humidity (%)	Dimensions of laser head (mm)
PGL-FP-405	405 nm	1~50 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
PGL-V-FC-405	405 nm	1~50 mW	–	<5%, <3%, <1%	Near TEM00 / Multimode	<0.5 / <3×0.5	minutes / <10	10000	1	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	–	–	–	–	–	–	–	Datasheet
PGL-VI-FC-405	405 nm	1~100 mW	<5%	–	–	–	–	–	–	–	–	Cable with flying leads	–	–	–	–	lifetime	5VDC	TTL or Analog0-3V,0-5V	10°C to 35°C	-10°C to 70°C	<90 %, non-condensing	Φ56×250mm2 / (PGL-FC-375/589)	Datasheet
PGL-V-H-FC-405	405 nm	1~500 mW	<1%	–	Near TEM00 / Multimode	<0.5 / <3×0.5	minutes / <10	10000	–	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	–	–	–	–	–	–	–	Datasheet
PGL-V-H-FP-405	405 nm	1~200 mW	<1%	–	Near TEM00 / Multimode	<0.5 / <3×0.5	minutes / <10	10000	–	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	–	–	–	–	–	–	–	Datasheet

637 NM RED Diode Laser |

2 models

Model	Wavelength	Output / average power
PGL-V-FC-637	637 nm	Fiber coupled
PGL-VI-FC-637	637 nm	Fiber coupled

488 NM Blue Diode Laser.

2 models

Model	Wavelength	Output / average power
PGL-FP-488	488 nm	Fiber coupled	Datasheet
Blue Laser for Raman Spectroscopy	488 nm	1-70 mW

Infrared Laser,1532 NM Infrared Diode Lasers, Infrared Fiber Coupled Laser System.

11 models

Model	Wavelength	Output / average power	Spectral line width (nm)	Power stability (rms, 4 hours ± 3°C)	Transverse mode	Noise of amplitude (rms, 20Hz-20MHz)	Beam divergence, full angle (mrad)	Warm-up time (minutes)	Cooled method	Operating temperature (°C)	Power supply (100-240VAC)	Expected lifetime (hours)	Fiber	M2 after fiber	Operating temperature (℃)	Power Stability (rms, 4 hours ± 3°C)	Fiber core diameter	Fiber connector	Operating voltage (VAC)
MLL-H-1532	1532 nm	1~800 mW	<0.5	<2%, <1%, <0.5%	Multimode	<1%, <0.5%	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	–	–	–	–	–	–	Datasheet
MLL-III-1532-SM	1532 nm	1~15 mW	–	<2%, <1%, <0.5%	TEM00	<1%, <0.5%	–	<5	Conduction	10-35	PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM	>10000	1m	~1.1	–	–	–	–	–	Datasheet
FC-OEM-1532	1532 nm	1~15 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
TEM-F-1532DFB	1532 nm	1~20 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
MDL-H-1532	1532 nm	1~800 mW	<0.5	<2%, <1%, <0.5%	Multimode	–	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	–	–	–	–	–	–	Datasheet
MDL-XF-1532	1532 nm	800~2000 mW	–	–	Multimode	–	<3.0	<5	Air cooled	–	PSU-H-FDA/PSU-H-LED	>10000	–	–	10-35	–	–	–	–	Datasheet
MDL-III-1532-SM	1532 nm	1~15 mW	<0.5	<2%, <1%, <0.5%	Multimode	–	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	–	–	–	–	–	–	Datasheet
MDL-III-1532DFB-SM	1532 nm	1~15 mW	<0.5	<2%, <1%, <0.5%	Multimode	–	<3.0	<5	Air cooled	10-35	PSU-H-FDA/PSU-H-LED	>10000	–	–	–	–	–	–	–	Datasheet
FC-1532	1532 nm	1~3000 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
FC-W-1532H	1532 nm	5~30 W	–	–	–	–	–	–	–	10-40	–	>10000	–	–	–	<2%, <1%, (<0.5% optional)	400um, 0.22 NA	SMA905, FC/PC optional	100-240	Datasheet
MDL-1532(FC)	1532 nm	1~3000 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

445 NM Blue Violet Diode Laser.

1 model

Model	Wavelength	Output / average power
PGL-FP-445	445 nm	1~50 mW	Datasheet

450 NM Blue Violet Diode Laser.

3 models

Model	Wavelength	Output / average power	Warm-up time (minutes)	Operating temperature (℃)	Power supply (90-264VAC)	Expected lifetime (hours)	Warranty	Power stability(rms, over 4 hours)	Operating voltage(PSU-V-OEM)	Modulation optional	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of laser head	Transverse mode	Operating voltage(internal PCB1)	Operating voltage(external PCB2)	Dimensions of internal PCB mm	Dimensions of internal PCB1 mm
OEM-DH-450	450 nm	15-30 W	<5	25+/-3 (OEM-DH-450) / 10-35 (OEM-DH-450-Water)	PSU-H-LED	10000	1 year	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
PGL-V-FC-450	450 nm	1~50 mW	–	–	–	–	–	<5%, <3%, <1%	100-240VAC	TTL30kHz and Analog 0-5V	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	–	–	–	–	–	Datasheet
PGL-VI-FC-450	450 nm	1~100 mW	–	–	–	–	–	–	–	–	Cable with flying leads	0°C to 40°C	-20°C to 80°C	<90%, non-condensing	–	Near TEM00	5VDC(TTL30kHz and Analog0-3V,0-5V, optional)	5-12VDC(TTL30kHz and Analog 0-3V,0-5V, optional)	Φ12×50	Φ15×90	Datasheet

520 NM Green Laser.

4 models

Model	Wavelength	Output / average power	Power stability(rms, over 4 hours)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time	Expected lifetime (hours)	Warranty (years)	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of laser head	Operating voltage(internal PCB)	Dimensions of internal PCB
PGL-FP-520	520 nm	1~50 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
PGL-V-FC-520	520 nm	1~50 mW	<5%, <3%, <1%	Near TEM00 / Multimode	<1 / <3×0.5	minutes / <10	10000	1	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	–	–	Datasheet
PGL-VI-FC-520	520 nm	1~100 mW	–	Near TEM00	<1	–	10000	–	–	–	Cable with flying leads	0°C to 40°C	-20°C to 80°C	<90%, non-condensing	–	7.5-8VDC	mm2 / Φ12×50	Datasheet
PGL-V-H-FC-520	520 nm	1~800 mW	<5%, <3%, <1%	Near TEM00 / Multimode	<1 / <3×0.5	minutes / <10	10000	1	100-240VAC	12VDC	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	–	–	Datasheet

Infrared Laser,1310 NM Infrared Diode Lasers,infrared Diode Laser System.

1 model

Model	Wavelength	Output / average power
PGL-FP-1310	1310 nm	1~15 mW

Infrared Laser,785 NM Infrared Diode Lasers,infrared Diode Laser System.

1 model

Model	Wavelength	Output / average power	Transverse mode	Beam divergence, full angle (mrad)	Expected lifetime (hours)	Operating voltage(internal PCB)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of internal PCB
PGL-VI-FC-785	785 nm	1~100 mW	Near TEM00	<1	10000	3VDC	Cable with flying leads	0°C to 40°C	-20°C to 80°C	< 90 %, non-condensing	mm2 / Φ12×50	Datasheet

Infrared Diode Laser, 808 NM Infrared Diode Lasers, High Power Diode Laser System.

4 models

Model	Wavelength	Output / average power	Power stability(rms, over 4 hours)	Transverse mode	Beam divergence, full angle (mrad)	Warm-up time	Expected lifetime (hours)	Warranty (years)	Operating voltage(PSU-II-OEM)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of laser head	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Operating voltage(internal PCB)	Dimensions of internal PCB
PGL-FP-808	808 nm	1~30 mW	<5%, <3%, <1%	Near TEM00 / Multimode	<1 / <15	minutes / <10	10000	1	5V / (TTL30kHz or Analog 0-5V,optional)	Cable with flying leads	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	77(L)×30(W)×30(H)mm3	–	–	–	–	Datasheet
PGL-V-FC-808	808 nm	1~50 mW	<5%, <3%, <1%	Near TEM00 / Multimode	<1 / <5	minutes / <10	10000	1	–	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	100-240VAC	12VDC	–	–	Datasheet
PGL-VI-FC-808	808 nm	1~100 mW	–	Near TEM00 / Multimode	<1 / <10	–	10000	1	–	Cable with flying leads	0°C to 40°C	-20°C to 80°C	< 90 %, non-condensing	–	–	–	3VDC	mm2 / Φ12×50	Datasheet
PGL-V-H-FC-808	808 nm	1~2000 mW	<5%, <3%, <1%	Near TEM00 / Multimode	<1 / <5	minutes / <10	10000	1	–	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	92(L)×40(W)×40(H)mm3	100-240VAC	12VDC	–	–	Datasheet

830 NM Infrared Diode Laser.

3 models

Model	Wavelength	Output / average power	Transverse mode	Beam divergence, full angle (mrad)	Expected lifetime (hours)	Operating voltage(internal PCB)	Connection	Operating temperature	Storage temperature	Humidity	Dimensions of internal PCB	Power stability(rms, over 4 hours)	Warm-up time	Warranty (years)	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Dimensions of laser head
PGL-VI-FC-830	830 nm	1~100 mW	Near TEM00	<1	10000	3VDC	Cable with flying leads	0°C to 40°C	-20°C to 80°C	< 90 %, non-condensing	mm2 / Φ12×50	–	–	–	–	–	–	Datasheet
PGL-FP-830	830 nm	1~100 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
PGL-V-H-FC-830	830 nm	1~1000 mW	Multimode	<5	10000	–	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	–	<5%, <3%, <1%	minutes / <10	1	100-240VAC	12VDC	92(L)×40(W)×40(H)mm3	Datasheet

Infrared Laser, 940 NM Infrared Diode Lasers, High Power Diode Laser System.

3 models

Model	Wavelength	Output / average power	Transverse mode	Beam divergence, full angle (mrad)	Expected lifetime (hours)	Operating voltage(internal)	Operating voltage(external PCB1)	Connection	Operating temperature	Storage temperature	Humidity	Power stability(rms, over 4 hours)	Warm-up time	Warranty (years)	Operating voltage(PSU-V-OEM)	Operating voltage(PSU-I-OEM)	Dimensions of laser head
PGL-VI-FC-940	940 nm	1~100 mW	Near TEM00	<1	10000	3VDC (TTL10kHz, optional)	5VDC(TTL30kHz or Analog 0-3V,0-5V, optional)	Cable with flying leads	0°C to 40°C	-20°C to 80°C	< 90 %, non-condensing	–	–	–	–	–	–	Datasheet
PGL-FP-940	940 nm	1~100 mW	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Datasheet
PGL-V-H-FC-940	940 nm	1~1000 mW	Multimode	<10	10000	–	–	9 pin connector	-10°C to 50°C	-20°C to 80°C	< 90%, non-condensing	<5%, <3%, <1%	minutes / <10	1	100-240VAC	12VDC	92(L)×40(W)×40(H)mm3	Datasheet

Browse all models by name

Open a model for its complete specifications and technical files. The comparison search above covers the full catalog.
