Scientific Camera
MAX251AM-10G MAX Sony scientific camera combines Exmor CMOS imaging, TEC cooling, anti-condensation optics and SDK support.
Application context
MAX251AM-10G: The IMX811ALR (M, RS) sensor, 251 MP (19200×12800) resolution, and 2.81 µm × 2.81 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 1.5 fps @ 19200×12800 frame-rate listing also sets the fastest full-frame acquisition regime.
MAX251AM-10G: The IMX811ALR (M, RS) sensor, 251 MP (19200×12800) resolution, and 2.81 µm × 2.81 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 1.5 fps @ 19200×12800 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The MAX251AM-10G is a scientific camera in the MAX Sony series, built around a IMX811ALR (M, RS) sensor, 251 MP (19200×12800) resolution, 2.81 µm × 2.81 µm pixels, frame rates up to 1.5 fps @ 19200×12800, a 10GigE interface. It suits scientific camera where reliable imaging performance and interface compatibility matter.
| Model | MAX251AM-10G |
|---|---|
| Sensor | IMX811ALR (M, RS) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Resolution | 251 MP (19200×12800) |
| Sensor Size | 53.95 mm × 35.97 mm |
| Sensor Diagonal | 4.1" (64.84 mm) |
| Pixel Size | 2.81 µm × 2.81 µm |
| Frame Rate | 1.5 fps @ 19200×12800 |
|---|---|
| Exposure Time | 150 µs ~ 3600 s |
| Bit Depth | 8/16-bit |
| Dynamic Range | Available on request |
| Sensitivity | Available on request |
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO |
|---|---|
| Lens Mount | M72×0.75 (native) |
| Data Interface | 10GigE |
| Power Supply | DC 19 V, 4 A |

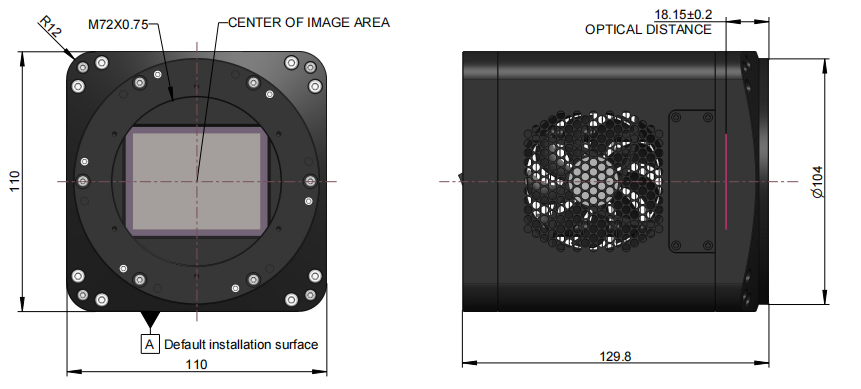

| Dimensions | 110 mm × 110 mm × 129.8 mm |
|---|---|
| Weight | 1.44 kg |
| Operating Temperature | 10 °C to +50 °C |
|---|---|
| Operating Humidity | 30%–80% RH (non-condensing) |
| Storage Temperature | 20 °C to +60 °C |
| Storage Humidity | 10%–60% RH (non-condensing) |
| OS Support | Multi-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
|---|---|
| Certification | Available on request |
System integration
Use these checks to connect MAX251AM-10G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M72×0.75 (native). Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: IMX811ALR (M, RS) · Resolution: 251 MP (19200×12800). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 1.5 fps @ 19200×12800 · Interface: 10GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× opto-isolated input, 1× opto-isolated output, 2× direct-connect GPIO. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare MAX251AM-10G with the closest available models in the MAX Sony family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | MAX251AM-10G (current) | MAX251AC-U3 | MAX251AM-U3 |
|---|---|---|---|
| Sensor | IMX811ALR (M, RS) | IMX811AQR (C, RS) | IMX811ALR (M, RS) |
| Resolution | 251 MP (19200×12800) | 251 MP (19200×12800) | 251 MP (19200×12800) |
| Sensor size | 53.95 mm × 35.97 mm | 53.95 mm × 35.97 mm | 53.95 mm × 35.97 mm |
| Pixel size / frame rate | 2.81 µm × 2.81 µm | 2.81 µm × 2.81 µm | 2.81 µm × 2.81 µm |
The IMX811 appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
