Precisometer

Camera finder

Build a camera shortlist

Showing cameras built around IMX577. Refine the shortlist with your application requirements.

646
Camera models
75
Cooled
216
Global shutter
15
Matched

Results

15 cameras matched

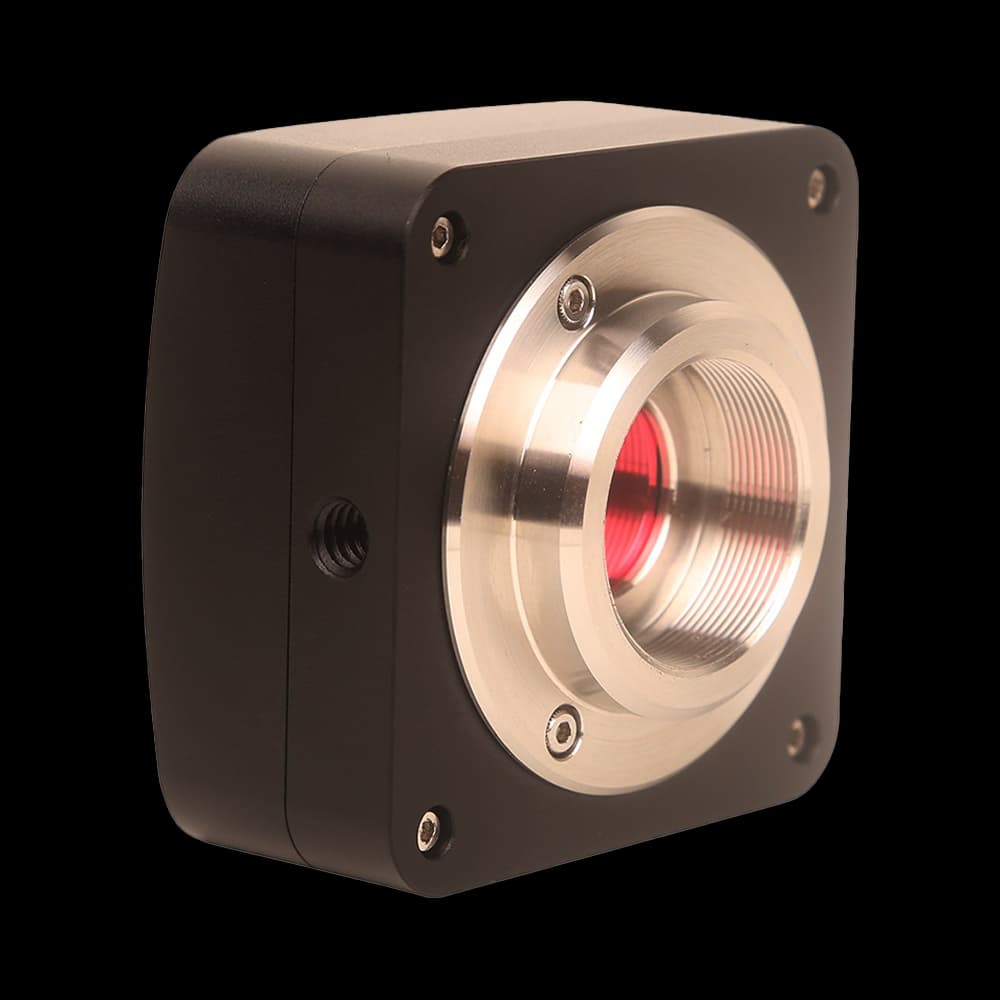

C2CMOS12000KPA
Microscopy Camera
C2CMOS12000KPA

C2CMOS

Sensor
IMX577(C)
Resolution
12M (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760
Mount
C-mount
Interface
USB2.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
C3CMOS10000KPA
Microscopy Camera
C3CMOS10000KPA

C3CMOS

Sensor
IMX577(C)
Resolution
10M (3664×2748)
Pixel size
1.55 µm × 1.55 µm
Frame rate
8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686
Mount
C-mount
Interface
USB3.0
Sensor size
5.68 mm × 4.26 mm
Band
380–700 nm (visible)
Shutter
Rolling
C3CMOS12000KPA
Microscopy Camera
C3CMOS12000KPA

C3CMOS

Sensor
IMX577(C)
Resolution
12M (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
7.5 fps @ 3840×3040; 43 fps @ 1920×1516; 122 fps @ 960×758
Mount
C-mount
Interface
USB3.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
E3ISPM12000KPB
Microscopy Camera
E3ISPM12000KPB

E3ISPM

Sensor
IMX577 (C)
Resolution
12M (4056×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
30 fps @ 4056×3040; 60 fps @ 2028×1520; 120 fps @ 1014×760
Mount
C-mount
Interface
USB3.0
Sensor size
6.29 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling

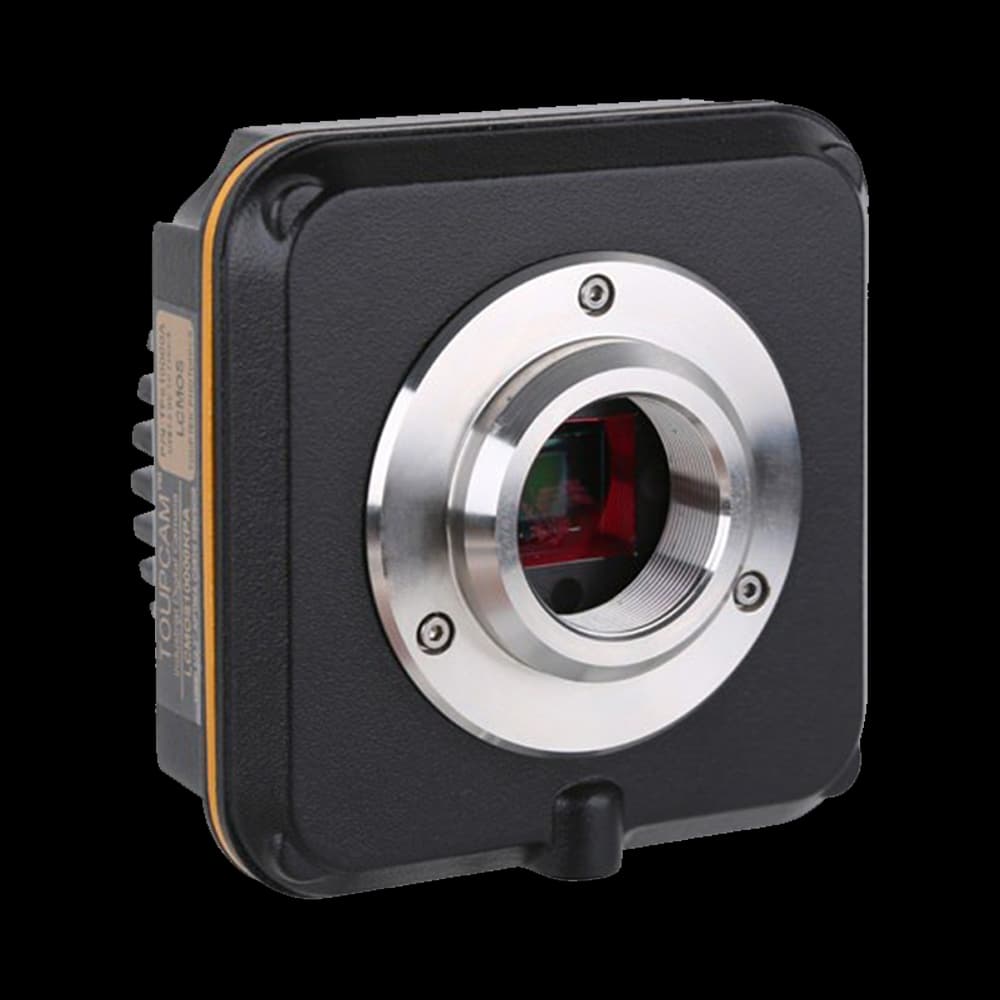

L3CMOS10000KPA
Microscopy Camera
L3CMOS10000KPA

L3CMOS

Sensor
IMX577(C)
Resolution
10M (3664×2748)
Pixel size
1.55 µm × 1.55 µm
Frame rate
8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686
Mount
C-mount
Interface
USB3.0
Sensor size
5.68 mm × 4.26 mm
Band
380–700 nm (visible)
Shutter
Rolling
L3CMOS12000KPA
Microscopy Camera
L3CMOS12000KPA

L3CMOS

Sensor
IMX577(C)
Resolution
12M (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
8.5 fps @ 3840×3040; 49 fps @ 1920×1516; 137 fps @ 960×758
Mount
C-mount
Interface
USB3.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling

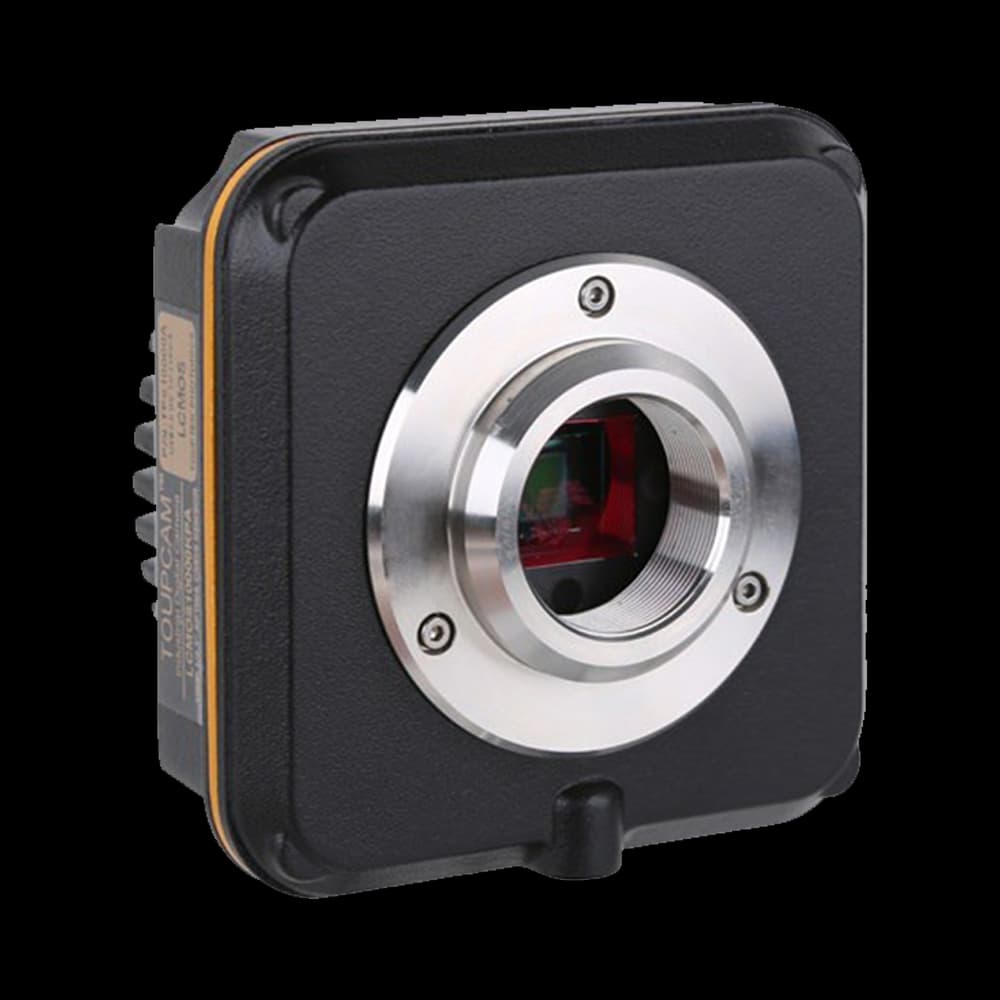

LCMOS10000KPA
Microscopy Camera
LCMOS10000KPA

LCMOS

Sensor
IMX577 (C)
Resolution
10MP (3584×2748)
Pixel size
1.55 µm × 1.55 µm
Frame rate
3.3 fps @ 3584×2748; 12 fps @ 1792×1374; 53 fps @ 896×684
Mount
C-mount
Interface
USB2.0
Sensor size
5.56 mm × 4.26 mm
Band
380–700 nm (visible)
Shutter
Rolling
LCMOS12000KPA
Microscopy Camera
LCMOS12000KPA

LCMOS

Sensor
IMX577 (C)
Resolution
12MP (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
3 fps @ 3840×3040; 11 fps @ 1920×1516; 47 fps @ 960×758
Mount
C-mount
Interface
USB2.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
SCMOS12000KPA
Microscopy Camera
SCMOS12000KPA

SCMOS

Sensor
IMX577 (C)
Resolution
12MP (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760
Mount
23.2 mm eyepiece tube type
Interface
USB2.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
U3CMOS10000KPA
Microscopy Camera
U3CMOS10000KPA

U3CMOS

Sensor
IMX577 (C)
Resolution
10M (3664×2748)
Pixel size
1.55 µm × 1.55 µm
Frame rate
8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686
Mount
C-mount
Interface
USB3.0
Sensor size
5.68 mm × 4.26 mm
Band
380–700 nm (visible)
Shutter
Rolling
U3CMOS12000KPA
Microscopy Camera
U3CMOS12000KPA

U3CMOS

Sensor
IMX577 (C)
Resolution
12M (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
8.5 fps @ 3840×3040; 49 fps @ 1920×1516; 137 fps @ 960×758
Mount
C-mount
Interface
USB3.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
UA1000CA
Microscopy Camera
UA1000CA

UA

Sensor
IMX577(C)
Resolution
10M (3584×2748)
Pixel size
1.55 µm × 1.55 µm
Frame rate
3.3 fps @ 3584×2748; 12 fps @ 1792×1374; 53 fps @ 896×684
Mount
C-mount
Interface
USB2.0
Sensor size
5.56 mm × 4.26 mm
Band
380–700 nm (visible)
Shutter
Rolling
UA1200CA
Microscopy Camera
UA1200CA

UA

Sensor
IMX577(C)
Resolution
12M (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
3 fps @ 3840×3040; 11 fps @ 1920×1516; 47 fps @ 960×758
Mount
C-mount
Interface
USB2.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
UCMOS10000KPA
Microscopy Camera
UCMOS10000KPA

UCMOS

Sensor
IMX577(C)
Resolution
10M (3584×2748)
Pixel size
1.55 µm × 1.55 µm
Frame rate
3.3 fps @ 3584×2748; 12 fps @ 1792×1374; 53 fps @ 896×684
Mount
C-mount
Interface
USB2.0
Sensor size
5.56 mm × 4.26 mm
Band
380–700 nm (visible)
Shutter
Rolling
UCMOS12000KPA
Microscopy Camera
UCMOS12000KPA

UCMOS

Sensor
IMX577(C)
Resolution
12M (3840×3040)
Pixel size
1.55 µm × 1.55 µm
Frame rate
3 fps @ 3840×3040; 11 fps @ 1920×1516; 47 fps @ 960×758
Mount
C-mount
Interface
USB2.0
Sensor size
5.95 mm × 4.71 mm
Band
380–700 nm (visible)
Shutter
Rolling
