Closed-loop raster scanning
Capacitive feedback linearises the scan, removing the hysteresis that distorts open-loop images.
Opto-Mechanics · Ambient Piezo Stages - Standard scanner modules

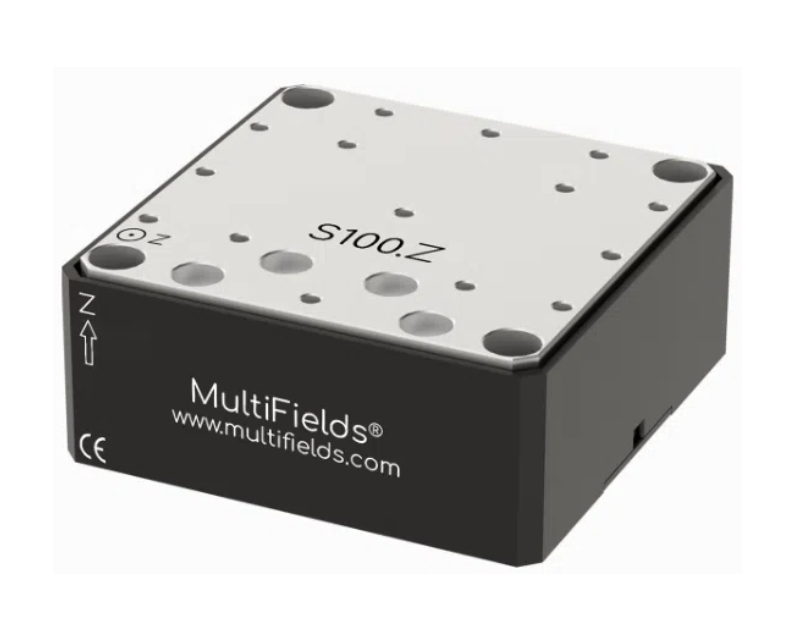

S100.Z.C
Standard flexure-guided Z-axis piezo scanner; 100 um Z-axis travel; capacitive closed-loop feedback; closed-loop resolution 0.5 nm Z / 1 nm XY.
Datasheet (PDF) ↗Catalog context
Where S100.Z.C fits
S100.Z.C is listed in the Ambient Piezo Stages - Standard scanner modules family. The local catalog record provides these first selection fields: Active axes: Z; Mass: 170 g; Travel range(open-loop): 120 um.
Specifications
| Active axes | Z |
|---|---|
| Mass | 170 g |
| Travel range(open-loop) | 120 um |
| Travel range(closed-loop) | 100 um |
| Resolution(open-loop) | 0.2 nm |
| Resolution(closed-loop) | 0.5 nm |
| Linearity | 0.0003 |
| Pitch/Yaw | ±100 urad |
| Resonant Frequency | 700 Hz |
| Stiffness | 0.5 N/µm |
| Max. Payload (horizontal mounting) | 500 g |
| Sensor Type | Capacitive Sensor |
| Max Driving Voltage | 150 V |
| Controller | MC-Archimedes.N series |
Application context
Why this design is used
Scanning probe microscopy
Provide the fine XY or XYZ scan under an AFM, STM or near-field head.
Confocal and Raman mapping
Step a sample through a focus in reproducible increments so map pixels correspond to real coordinates.
System integration
Integration and compatibility
Use these checks to connect S100.Z.C to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Travel and resolution
- Travel range(open-loop): 120 um · Travel range(closed-loop): 100 um
- Separate travel from resolution and both from repeatability. Repeatability is what an automated sequence actually depends on, and it is the figure most often absent from a headline specification.
- Drive and feedback
- Resolution(open-loop): 0.2 nm · Resolution(closed-loop): 0.5 nm
- Pair open-loop mechanics with the specified high-voltage or inertial driver, and closed-loop variants with the controller their capacitive, strain-gauge or encoder feedback requires. Matching connectors do not guarantee electrical compatibility.
- Load and mounting
- Max. Payload (horizontal mounting): 500 g
- Check the load rating in the orientation you will use it — a vertical or cantilevered load is a moment, not a mass — and match the base to an M6 pattern on a 25 mm grid or a 1/4"-20 pattern on a 1 inch grid.
Technical FAQ
Integration questions for S100.Z.C
What travel and resolution does the S100.Z.C provide?
Travel range(open-loop): 120 um · Travel range(closed-loop): 100 um. Separate travel from resolution and both from repeatability. Repeatability is what an automated sequence actually depends on, and it is the figure most often absent from a headline specification.
Which controller does the S100.Z.C require?
Resolution(open-loop): 0.2 nm · Resolution(closed-loop): 0.5 nm. Pair open-loop mechanics with the specified high-voltage or inertial driver, and closed-loop variants with the controller their capacitive, strain-gauge or encoder feedback requires. Matching connectors do not guarantee electrical compatibility.
What load can the S100.Z.C carry, and how does it mount?
Max. Payload (horizontal mounting): 500 g. Check the load rating in the orientation you will use it — a vertical or cantilevered load is a moment, not a mass — and match the base to an M6 pattern on a 25 mm grid or a 1/4"-20 pattern on a 1 inch grid.
Specifying this part
What this model has to survive, and what it needs around it
Closed-loop travel is shorter than open-loop travel
The loop reserves headroom to correct within, so the usable range drops when the sensor is engaged: an S100.XY.C covers 120 × 120 µm open-loop against 100 × 100 µm closed-loop, and an S200 covers 240 × 240 against 200 × 200. Specify against the closed-loop number.
Flexure guiding, capacitive sensing
A piezo stack acting through flexure hinges with a capacitive sensor reading directly against the moving surface — no sliding contact, no backlash, and millisecond-class response.
Vacuum and non-magnetic versions
Most of the range is orderable as .HV (high vacuum), .UHV (ultra-high vacuum) or .NM (non-magnetic). The suffix changes materials, cabling and bake compatibility rather than the mechanics, so specify it against the chamber the stage will live in.
Full series comparison, controller pairing and mounting hardware on the ambient piezo stages overview, or work through the selection with the configurator.
Model selection
Nearby series comparison
Compare S100.Z.C with the closest available models in the Ambient Piezo Stages - Standard scanner modules family.
| Selection parameter | S100.Z.C (current) | S100.XYZ.C.P | S200.XY.C |
|---|---|---|---|
| Travel / adjustment | 120 um | 100 × 100 × 100 μm | 240 × 240 μm |
| Resolution / sensitivity | 0.2 nm | 1 nm | 0.4 nm |
| Mounting interface | 500 g | 200 g | 500 g |
