Couplers, Splitters & Combiners

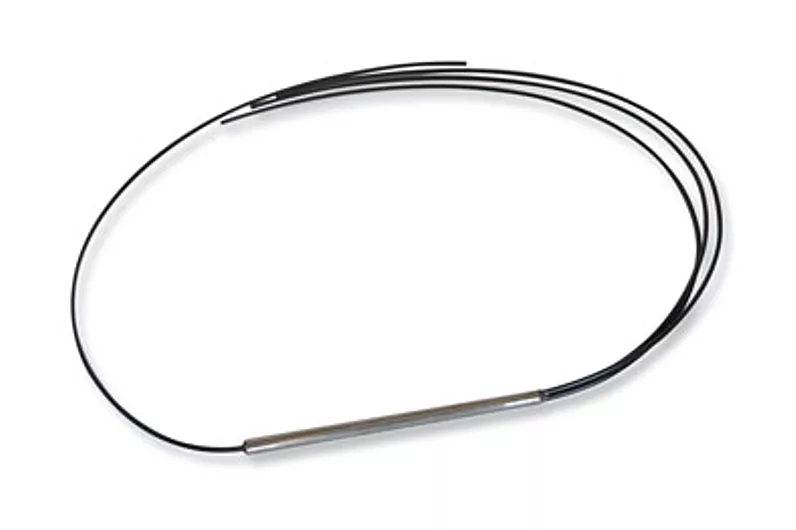

Our PLAC plastic fiber couplers/splitters distribute incoming optical signals across multiple output fibers. These couplers utilize high-performance plastic optical fibers with a diameter of 1.0 mm with a 0.98mm core and 2.2 mm outer diameter, featuring a core made from polymethyl-methacrylate (PMMA) resin and fluorinated polymer cladding. The 1×2 coupler efficiently splits light 50:50 over a broad wavelength range in the visible spectrum. Larger 1xN and NxN configurations are created by cascading 1×2 couplers, resulting in approximately 3 dB loss at each junction. Couplers are efficient in splitting light but incur significant losses when combining lights. We offer one of the industry’s most comprehensive selections of fused fiber couplers and splitters, designed for a wide range of application scenarios.
Configuration options
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Test Wavelength: 650nm · Configuration: 1x2 · Grade: Premium · Package: Component · Fiber Cover: 2.2mm Cable · Fiber Length: 0.5m · Connector: None
Application context
Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.
Plastic Fiber Couplers/Splitters: Optical power distribution depends on preserving the optical budget through the complete path. The 650nm wavelength specification sets source and detector compatibility. The fiber/interface entry (2.2mm Cable) must match the connected components.
Plastic Fiber Couplers/Splitters: Fiber sensing depends on preserving the optical budget through the complete path. The 650nm wavelength specification sets source and detector compatibility. The fiber/interface entry (2.2mm Cable) must match the connected components.
System integration
Use these checks to connect Plastic Fiber Couplers/Splitters to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Fiber Cover: 2.2mm Cable · Fiber Length: 0.5m, 0.75m, 1.0m. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Test Wavelength: 650nm. Check the Couplers, Splitters & Combiners passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Compare Plastic Fiber Couplers/Splitters with the closest available models in the Couplers, Splitters & Combiners family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | Plastic Fiber Couplers/Splitters (current) | NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module | Polarization Maintaining (PM) Fiber Optic Couplers/Splitters – Large Port Count up to 1x120 |
|---|---|---|---|
| Wavelength range | 650nm | 980, 1060, 1310, 1480, 1550, 2000, 400, 450, 520, 650, 750, 850 | 1310, 1550 |
| Optical performance | Confirm for this model | Confirm for this model | Confirm for this model |
| Fiber type | Confirm for this model | SMF-28, PM1550, 50/125 | PM1550, PM1310 |
| Connector / control | None, Simplex | None, FC/APC, Special | None, FC/APC, Special |
