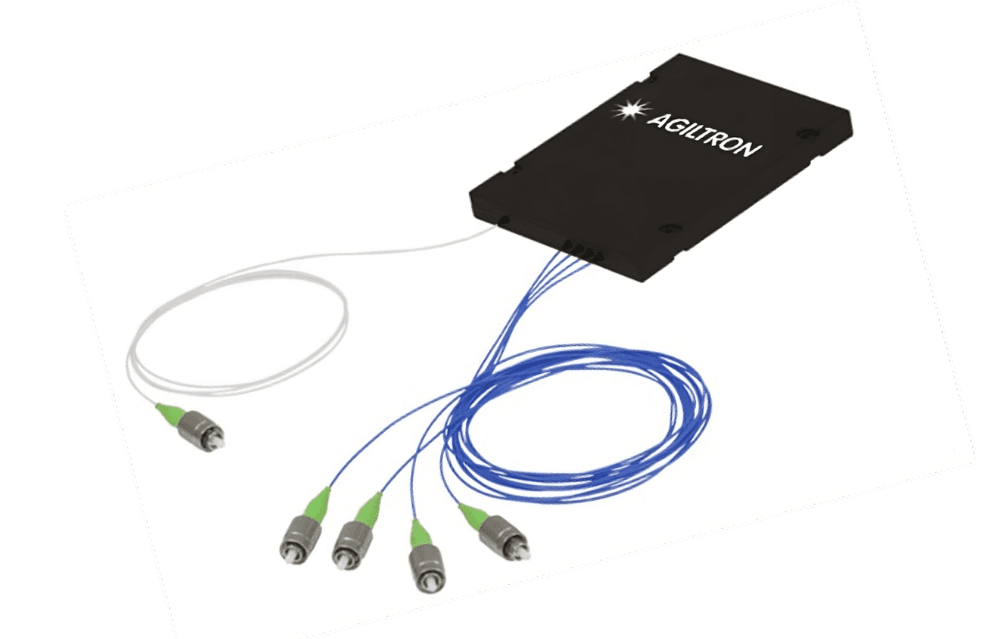

NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module
The N×M Fiber Couplers/Splitters are fabricated by cascading 2×2 fused fiber couplers in a star or tree architecture, providing low insertion loss, excellent channel-to-channel uniformity, high optical power handling, and high polarization extinction ratio for polarization-maintaining (PM) versions. The design offers industry-leading performance over an exceptionally wide operating wavelength range from 370 to 2400 nm and a broad operating temperature range of −40 °C to +150 °C. Standard and custom port configurations are available to meet specific application requirements. Please note that optical couplers, when used as combiners, inherently introduce losses. For example, combining two signals with a 50:50 coupler results in approximately 50% optical loss at each input. We produce a family of fiber combiners with minimal excess loss.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Wavelength: 980 · Grade: U · Package: Size A · Input: 1 Port · Output: 4 Port · Fiber Type: SMF-28 · Fiber Length: 0.5m · Connector: None
System integration
Integration and compatibility
Use these checks to connect NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Fiber Type: SMF-28, PM1550, 50/125 · Fiber Length: 0.5m, 1m, 2m
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Wavelength and loss budget
- Wavelength: 980, 1060, 1310, 1480, 1550, 2000, 400, 450, 520, 650, 750, 850
- Check the Couplers, Splitters & Combiners passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Technical FAQ
Integration questions for NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module
Which fiber and connector does the NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module use?
Fiber Type: SMF-28, PM1550, 50/125 · Fiber Length: 0.5m, 1m, 2m. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
How should the NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module be included in an optical power budget?
Wavelength: 980, 1060, 1310, 1480, 1550, 2000, 400, 450, 520, 650, 750, 850. Check the Couplers, Splitters & Combiners passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module with the closest available models in the Couplers, Splitters & Combiners family.
| Selection parameter | NxM (N = 1–8, M = 4–32) Single Mode Broadband Splitter Module (current) | High-Speed 1x4 PM Fiber Optical Splitter/Coupler | Plastic Fiber Couplers/Splitters |
|---|---|---|---|
| Wavelength range | 980, 1060, 1310, 1480, 1550, 2000, 400, 450, 520, 650, 750, 850 | 1310nm, 1550nm, 450nm, 550nm, 650nm, 750nm, 850nm, 950nm, 1060nm, 1950nm | 650nm |
| Fiber type | SMF-28, PM1550, 50/125 | — | — |
| Connector / control | None, FC/APC, Special | None, FC/APC, Special | None, Simplex |
