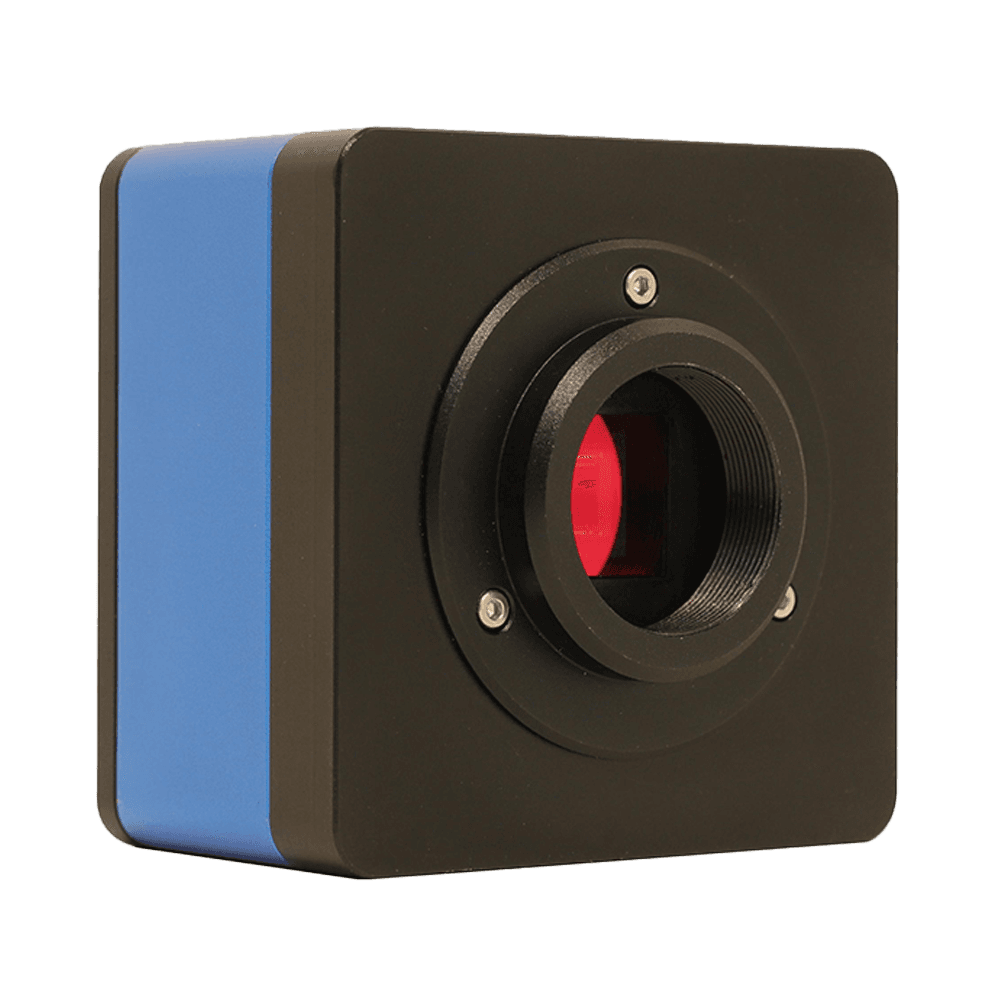

OCAM4K8MPA

OCAM4K8MPA Multi-Interface Output Camera with Sony IMX678(C) sensor, 8MP for autofocus imaging.

Sensor
Sony IMX678(C)
Resolution
8MP
Pixel Size
2.0 μm × 2.0 μm
Frame Rate
HDMI: 30 fps @ 3840×2160
Interface
HDMI1.4
Datasheet (PDF)Back to Intelligent Imaging Cameras
OCAM4K8MPA

Specifications

OCAM4K8MPA

18 specification rows

The OCAM4K8MPA is an intelligent imaging camera in the OCAM series, built around a Sony IMX678(C) sensor, 8MP resolution, 2.0 μm × 2.0 μm pixels, frame rates up to HDMI: 30 fps @ 3840×2160, a HDMI1.4 interface. It suits hdmi camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Product ModelOCAM4K8MPA
Product SeriesHDMI camera

Sensor Parameters

Sensor ModelSony IMX678(C)
Sensor Size1/1.8" (7.68×4.32 mm)
Diagonal1/1.8"
Pixel Size2.0 μm × 2.0 μm
Resolution8MP
Shutter TypeRolling shutter
Color TypeColor

Performance Parameters

Frame RateHDMI: 30 fps @ 3840×2160
Output InterfacesHDMI1.4
Lens MountC-mount
Storage SupportUSB drive
Software SupportXCamView

Physical Parameters

Power SupplyDC 12 V/1A

Environmental Parameters

Operating Temperature10 °C ~ 50 °C

Other Information

OS SupportWindows, Linux, macOS
CertificationCE, FCC
