HDMI camera

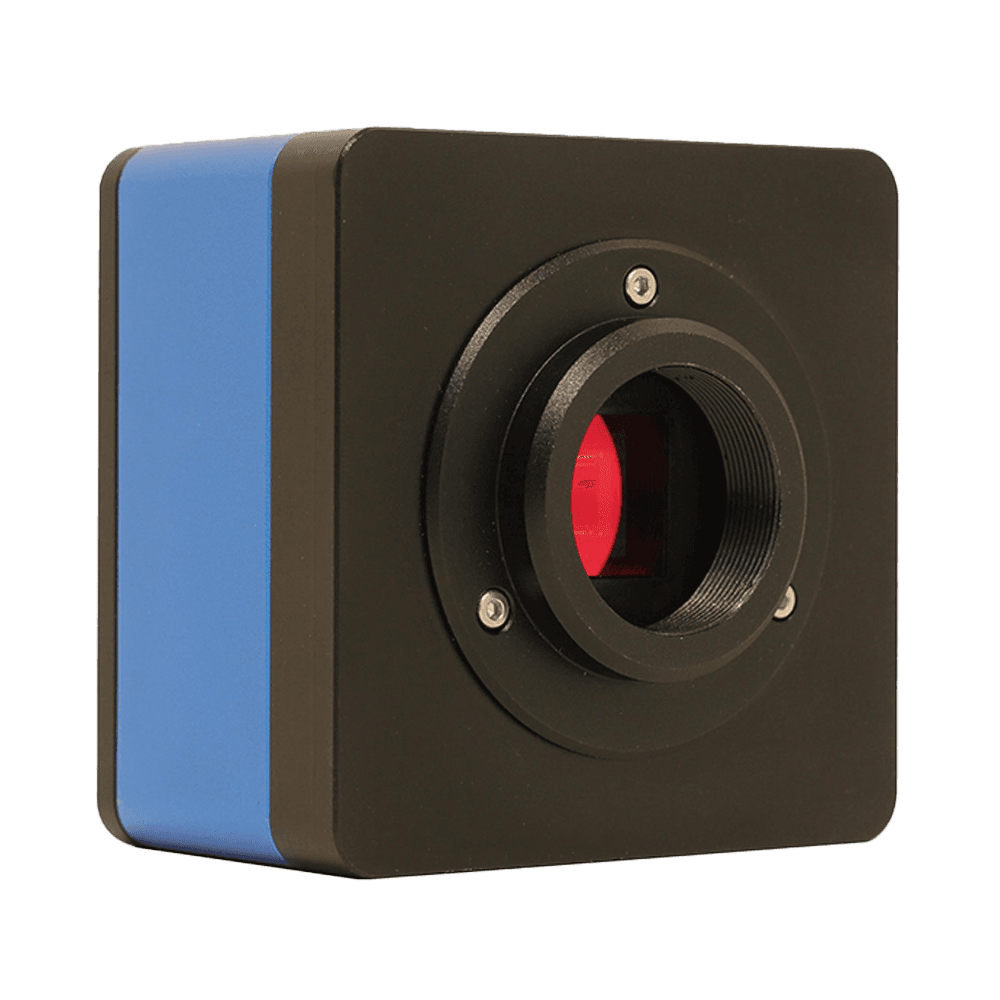

OCAM4K8MPA Multi-Interface Output Camera with Sony IMX678(C) sensor, 8MP for autofocus imaging.
Application context
OCAM4K8MPA: The Sony IMX678(C) sensor, 8MP resolution, and 2.0 μm × 2.0 μm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 30 fps @ 3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
OCAM4K8MPA: The Sony IMX678(C) sensor, 8MP resolution, and 2.0 μm × 2.0 μm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 30 fps @ 3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
18 specification rows
The OCAM4K8MPA is an intelligent imaging camera in the OCAM series, built around a Sony IMX678(C) sensor, 8MP resolution, 2.0 μm × 2.0 μm pixels, frame rates up to HDMI: 30 fps @ 3840×2160, a HDMI1.4 interface. It suits hdmi camera where reliable imaging performance and interface compatibility matter.
| Product Model | OCAM4K8MPA |
|---|---|
| Product Series | HDMI camera |
| Sensor Model | Sony IMX678(C) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 1/1.8" |
| Pixel Size | 2.0 μm × 2.0 μm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | HDMI: 30 fps @ 3840×2160 |
|---|---|
| Output Interfaces | HDMI1.4 |
| Lens Mount | C-mount |
| Storage Support | USB drive |
| Software Support | XCamView |
| Power Supply | DC 12 V/1A |
|---|
| Operating Temperature | 10 °C ~ 50 °C |
|---|
| OS Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC |
System integration
Use these checks to connect OCAM4K8MPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX678(C) · Resolution: 8MP. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 30 fps @ 3840×2160 · Interface: HDMI1.4. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare OCAM4K8MPA with the closest available models in the OCAM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | OCAM4K8MPA (current) | OCAM1080P2MPB | OCAM4K8MPB |
|---|---|---|---|
| Sensor | Sony IMX678(C) | Sony IMX462(C) | Sony IMX415(C) |
| Resolution | 8MP | 2MP | 8MP |
| Sensor size | 1/1.8" (7.68×4.32 mm) | 1/2.8" (5.57×3.13 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 2.0 μm × 2.0 μm | 2.9 μm × 2.9 μm | 1.45 μm × 1.45 μm |
The IMX678 appears in 16 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
