Browse 1 product families
Choose a series to compare its wavelength models and open their specifications.
All laser product families →9 models · 5 series
405nm CW Pulse Violet Blue Laser
1 model| Model | Wavelength | Output / average power | Power stability | Transverse mode | Warm-up time | Expected lifetime (hours) | Warranty (years) | Operating voltage(PSU-II-OEM) | Connection | Operating temperature | Storage temperature | Humidity | Dimensions of laser head | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PGL/MDL-L series | 405 nm | 1~1000 mW | <0.5% | Near TEM00 | minutes / <10 | 10000 | 1 | 7V / (TTL30kHz or Analog 0-5V,optional) | Cable with flying leads | -10°C to 50°C | -20°C to 80°C | < 90%, non-condensing | 77(L)×30(W)×30(H)mm3 | Datasheet |
Laser Application Systems |
1 model| Model | Wavelength | |
|---|---|---|
| Structured Laser/ Line Laser for PIV | — |

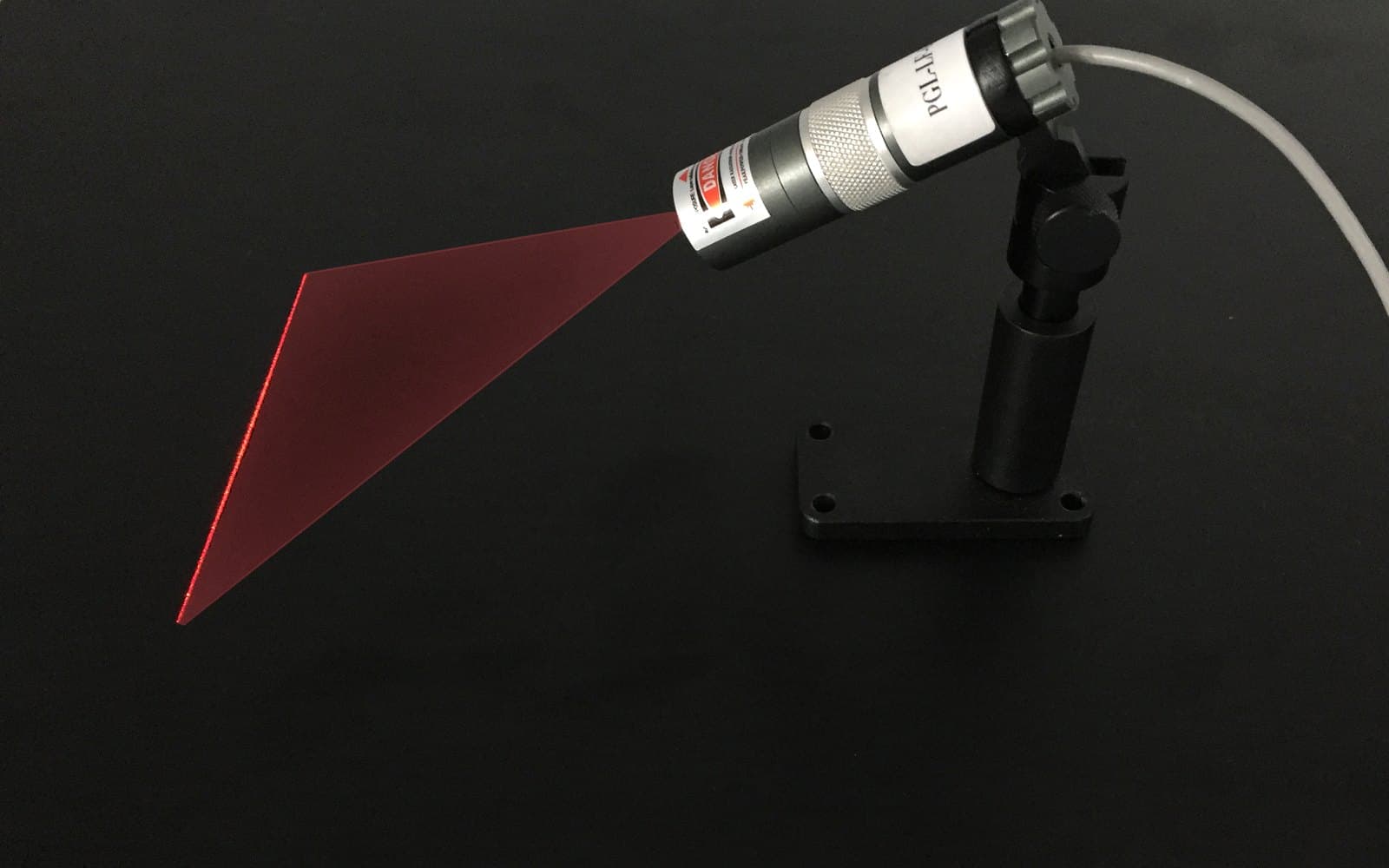

High Power Line Lasers OEM Modules
1 model| Model | Wavelength | Output / average power | Power stability | Wavelength options (nm) | TTL / analog modulation | Fan angle | Fan angle options | Line uniformity | Straightness error | Integration | Head dimensions (mm) | Power supply | Operating temperature | Storage temperature | Humidity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OEM-MF | 375–1550 nm | Up to 15 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 375, 405, 450, 488, 520, 640, 655, 750, 785, 808, 830, 852, 915, 940, 980, 1060, 1470, 1550 | TTL or analog up to 30 kHz | 5–100°; discrete options | 5°, 7°, 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°, 100° | 80% (luminance uniformity) | <0.5% | Compact OEM head; separate driver | 80.5 × 50 × 41 | PSU-H-LED / PSU-H-FDA: 100–240 V AC; PSU-H-OEM: 12 V DC | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
High Power Line Lasers Heads with Separate Drivers
5 models| Model | Wavelength | Output / average power | Power stability | Wavelength options (nm) | TTL / analog modulation | Fan angle | Fan angle options | Line uniformity | Straightness error | Integration | Head dimensions (mm) | Power supply | Operating temperature | Storage temperature | Humidity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MDL-III | 375–1550 nm | Up to 2.5 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 375, 405, 450, 488, 520, 640, 655, 750, 785, 808, 830, 852, 915, 940, 980, 1060, 1470, 1550 | Up to 100 kHz with PSU-A-D; 30 kHz with PSU-III-LED / PSU-III-FDA | 5–100°; discrete options | 5°, 7°, 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°, 100° | 80% (luminance uniformity) | <0.5% | Separate head and power supply | 155 × 73 × 46.2 | PSU-III-LED / PSU-III-FDA: 85–264 V AC; PSU-A-D: 100–240 V AC | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
| MDL-XF | 450–1550 nm | Up to 15 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 450, 640, 808, 915, 940, 980, 1470, 1550 | TTL or analog up to 30 kHz | 5–100°; discrete options | 5°, 7°, 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°, 100° | 80% (luminance uniformity) | <0.5% | Independent cooling; separate driver | 186 × 88 × 54 | PSU-H-LED / PSU-H-FDA: 100–240 V AC; PSU-H-OEM: 12 V DC | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
| MDL-XF-A | 405–808 nm | Up to 15 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 405, 450, 640, 808 | TTL or analog up to 30 kHz | 5–100°; discrete options | 5°, 7°, 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°, 100° | 80% (luminance uniformity) | <0.5% | Independent cooling; separate driver | 186 × 118 × 54 | PSU-H-LED / PSU-H-FDA: 100–240 V AC; PSU-H-OEM: 12 V DC | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
| MDL-H | 750–1060 nm | Up to 5 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 750, 808, 1060 | TTL or analog up to 30 kHz | 5–100°; discrete options | 5°, 7°, 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°, 100° | 80% (luminance uniformity) | <0.5% | Independent cooling; separate driver | 169 × 77 × 60.2 | PSU-H-LED / PSU-H-FDA: 100–240 V AC | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
| MDL-DF-808 | 808 nm | Up to 20 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 808 | TTL or analog up to 30 kHz | 75–110°; discrete options | 75°, 90°, 110° | 80% (luminance uniformity) | <0.5% | Independent cooling; separate driver | 199 × 117 × 79.5 | PSU-W-LED / PSU-W-FDA: 100–240 V AC | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
High Power Line Lasers Integrated Systems
1 model| Model | Wavelength | Output / average power | Power stability | Wavelength options (nm) | TTL / analog modulation | Fan angle | Fan angle options | Line uniformity | Straightness error | Integration | Head dimensions (mm) | Power supply | Operating temperature | Storage temperature | Humidity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MDL-XR-Line | 375–1550 nm | Up to 5 W; wavelength-dependent | <1%, <2% or <3% RMS over 4 hours; select configuration | 375, 405, 450, 640, 808, 915, 940, 980, 1470, 1550 | TTL or analog up to 30 kHz | 5–100°; discrete options | 5°, 7°, 10°, 15°, 30°, 45°, 50°, 60°, 75°, 90°, 100° | 80% (luminance uniformity) | <0.5% | Integrated driver and active cooling; optional RS232 | 193 × 100 × 55 | 24 V DC, working current <10 A; D-sub power cable | 10–35 °C; specifications tested at 25 °C | -20 to +80 °C | <90%, non-condensing | Datasheet |
Applications
Measure with a projected line
Choose the source and line optic around the camera, surface, working distance and measurement geometry.
3D scanning & dimensional inspection
A camera observes the projected line across the surface to measure shape, height, flatness and dimensions with a calibrated triangulation geometry.
Plan the measurement →Weld seam tracking & positioning
The projected line reveals joint edges and height changes so a vision system can estimate the seam position before or beside the welding process.
Plan the measurement →Road, rail & tunnel inspection
A projected reference line supports profile measurements and alignment checks on roads, rails and tunnel surfaces as part of a calibrated inspection system.
Plan the measurement →Not sure which model fits?
Send the physics — wavelength, mode, power or energy, linewidth or pulse width, delivery, control and safety — and we qualify the source.
