Pulse energy, repetition rate, pulse width

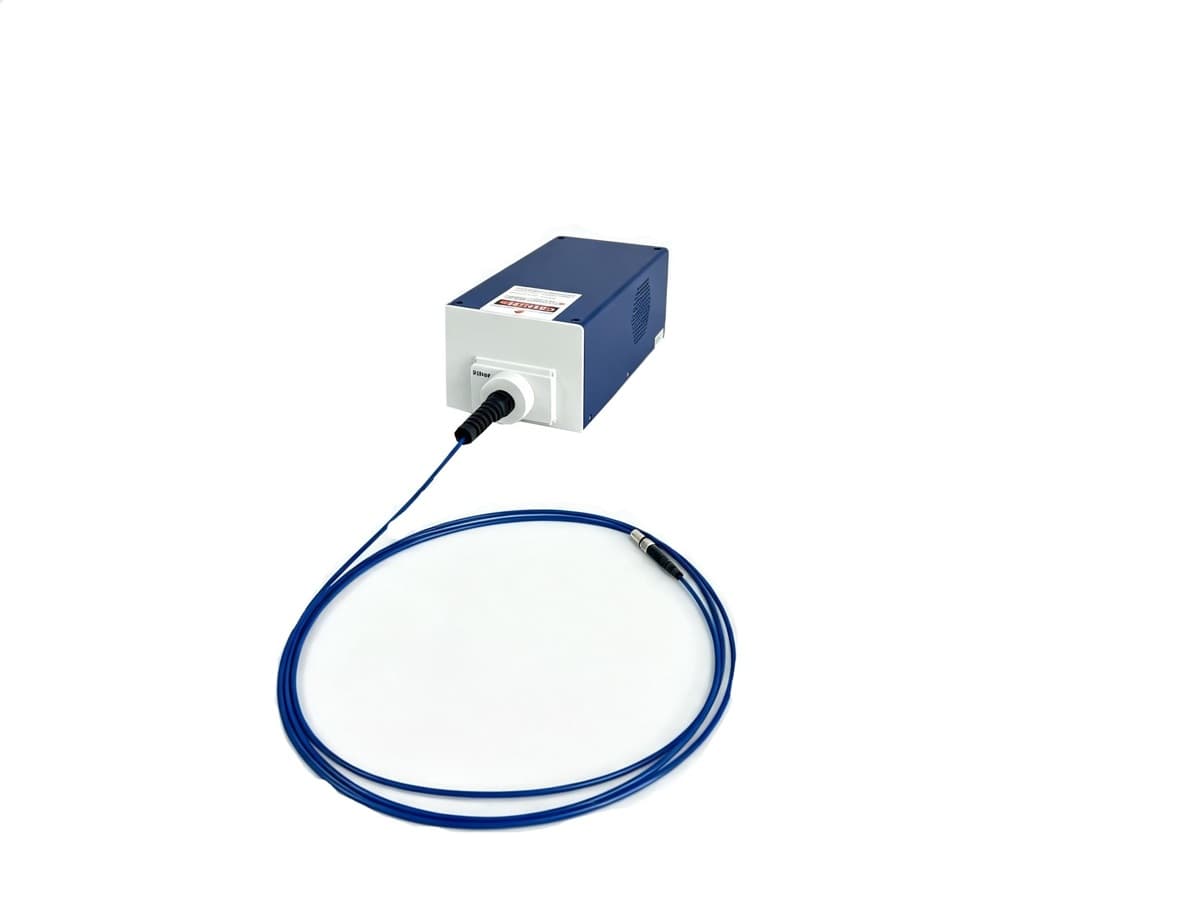

808 nm 500 W Pulsed Laser500 W peak illumination for high-speed imaging
808 nmThe 808 nm 500 W Pulsed Laser delivers 500 W peak illumination for high-speed imaging. Its integrated optical system, pulse driver and temperature control synchronize short light pulses with a camera through a 5 V TTL trigger. Select pulse width and repetition rate together within the recommended 2% duty cycle.
Camera-synchronized illumination
Short flashes for fast motion
The optical system, pulse driver, temperature control and system logic share one chassis. A camera or controller supplies the external trigger that determines the light-pulse timing.
- High-speed imaging
- Synchronize a short illumination pulse with the camera exposure to record fast motion with less motion blur.

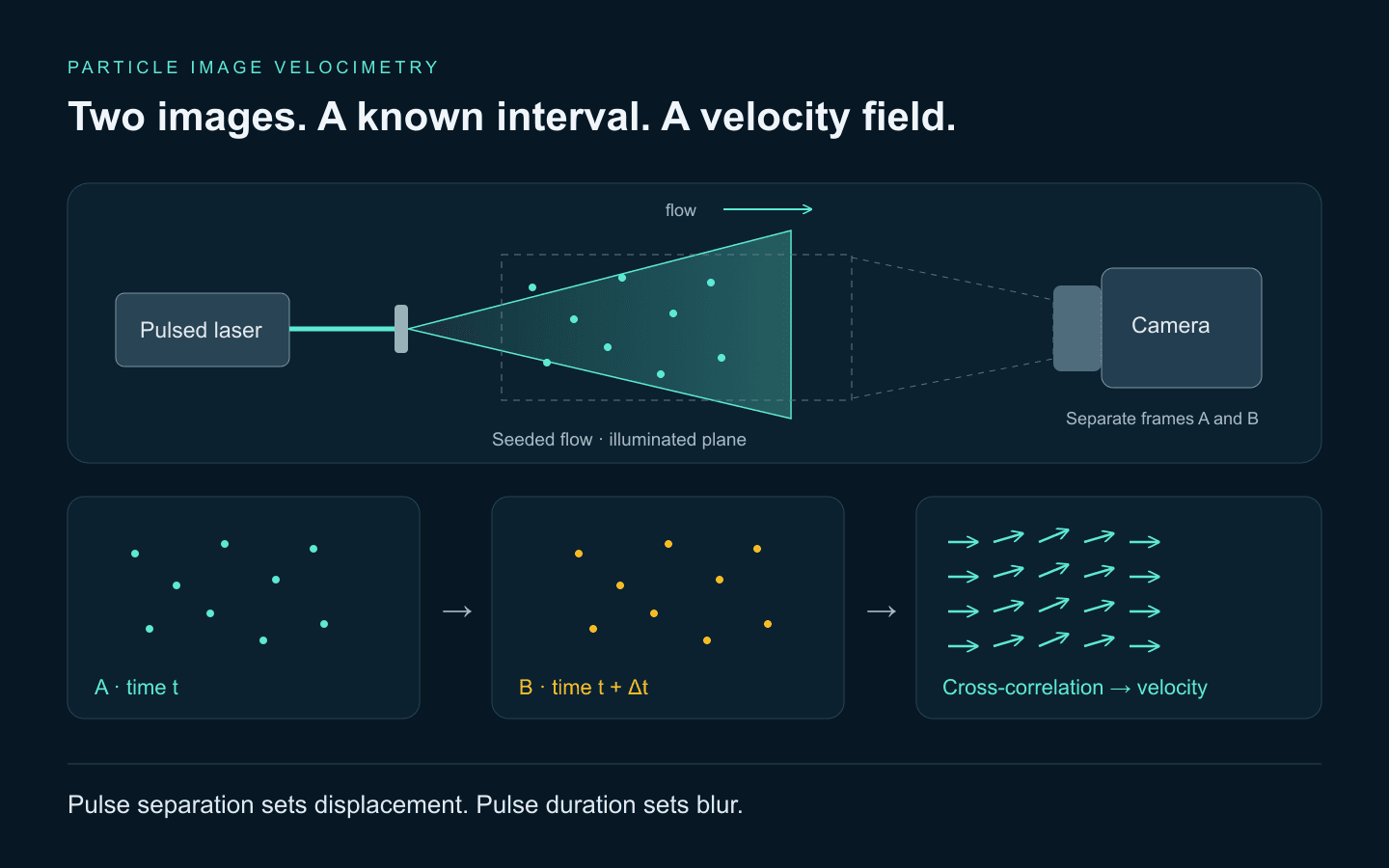

- Particle measurement
- Illuminate moving particles over a short interval to resolve their instantaneous positions.
- Spray diagnosis
- Use short light pulses to visualize transient droplet distributions and motion in a camera measurement.
Specifications
808 nm 500 W Pulsed Laser
13 specification rows
| Wavelength | 808 ±5 nm |
|---|---|
| Peak output power | 500 W peak; depends on pulse width and repetition rate |
| Operating mode | Pulsed; external trigger required; CW operation is not supported |
| Pulse width | 50 ns–1 μs; recommended 100–500 ns |
| Repetition rate | Up to 1 MHz; recommended ≤500 kHz, subject to the duty-cycle limit |
| Recommended duty cycle | ≤2% for prolonged operation |
| Trigger signal | External 5 V TTL, rising edge |
| Trigger input | Front-panel BNC; selectable 50 Ω or 1 MΩ input impedance |
| Trigger-to-light delay | 70 ±10 ns |
| Standard beam delivery | Liquid-core fiber; 5 mm core diameter |
| Power supply | 15 V DC; 15–24 V customization available; confirm the supplied unit rating |
| Temperature control | Integrated cooling and overtemperature protection |
| System controls | Key standby enable, emergency stop, interlocks and status indicators |
Specify the operating point
Pulse timing and camera integration
Duty cycle = pulse width × repetition rate. Use pulse width in seconds and repetition rate in hertz. A 200 ns pulse at 100 kHz gives a 2% duty cycle.
| Pulse width | Repetition rate at 2% |
|---|---|
| 100 ns | 200 kHz |
| 200 ns | 100 kHz |
| 500 ns | 40 kHz |
| 1 μs | 20 kHz |
Calculated timing examples; optical peak power and pulse shape must be confirmed at the selected operating point.
- Choose pulse width and repetition rate together. The 1 MHz maximum and 50 ns minimum imply a 5% duty cycle, which exceeds the recommended 2% for prolonged operation. Maximum frequency, pulse width and peak power are not simultaneous operating guarantees.
- Keep trigger pulses within 50 ns–1 μs. Pulses longer than 1 μs can permanently damage the driver, even as a single event; pulses below 50 ns can distort the optical pulse and reduce power.
- Allow for the 70 ±10 ns trigger-to-light delay and place the complete optical pulse inside the camera exposure window. Match the camera sync output to the 5 V TTL input and selected termination.
- Confirm power supply voltage, connector pinout, fiber delivery and mounting for the supplied configuration before integration. The key enables standby; light emission is controlled by the external trigger.
What do you need?
Tell us the peak illumination power, pulse width, repetition rate, duty cycle and camera synchronization requirements you need, and we'll reply with the matching configuration and lead time.
Model selection
Nearby series comparison
Compare 808 nm 500 W Pulsed Laser with the closest available models in the Pulsed Lasers family.
| Selection parameter | 808 nm 500 W Pulsed Laser (current) | MPL-355 (FC) | LPS-755-M |
|---|---|---|---|
| Wavelength | 808 nm | 355 nm | 755 nm |
| Optical power / pulse energy | 500 W peak; depends on pulse width and repetition rate | 1~1500 mW | 1–40 J at 3 ms; 40–60 J at 5 ms |
| Operating mode / pulse width | Pulsed; external trigger required; CW operation is not supported | Passively Q-switched | Long-pulsed |
