Precisometer

Color · Multi-interface camera

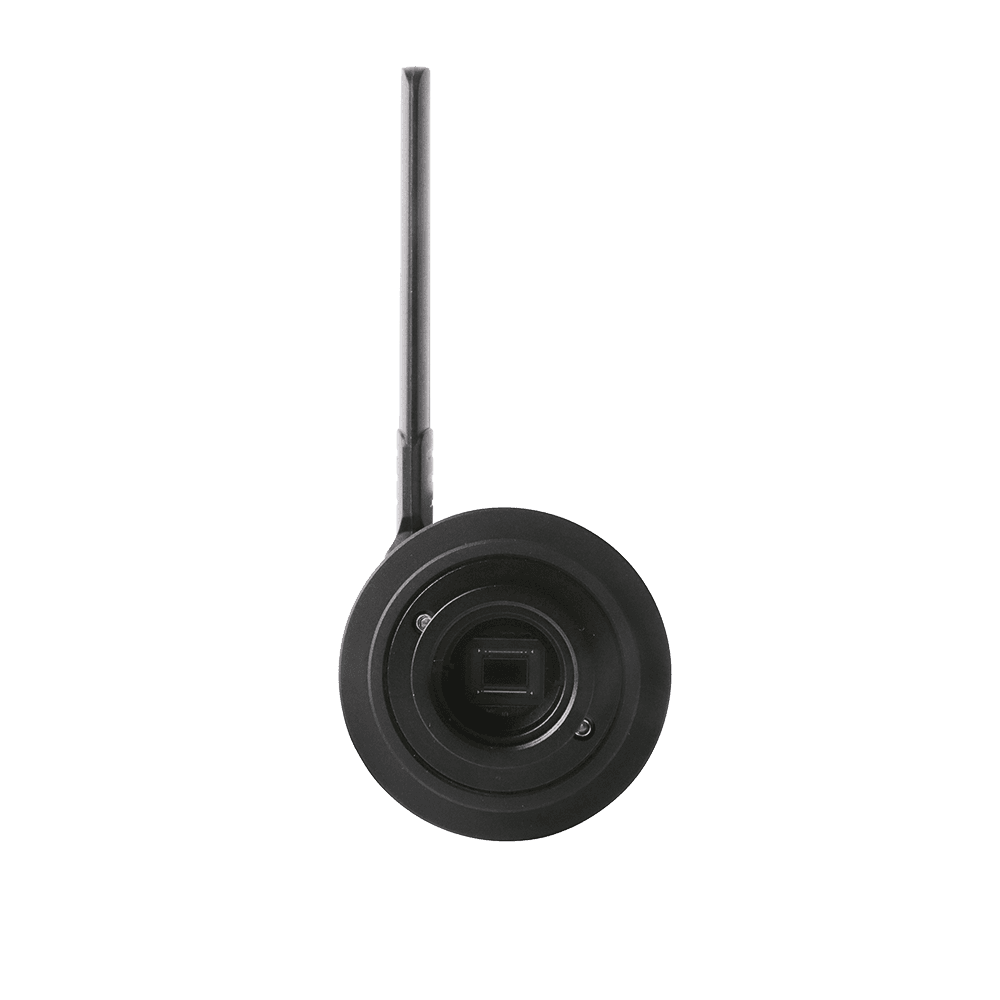

WUCAM8MPA

Sensor
Sony IMX678(C) Starvis 2 1/1.8" (7.68×4.32 mm)
Resolution
8MP (3840×2160)
Pixel Size
2.0 µm × 2.0 µm
Frame Rate
USB-C: 30 fps @ 3840×2160 30 fps @ 2688×1512 30 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 30 fps @ 1920×1080 30 fps @ 1280×720
Interface
USB-C Wi-Fi 802.11ac
Complete specificationsBack to Intelligent Imaging Cameras
WUCAM8MPA

Complete Specifications

Sensor & Imaging

Sensor & Imaging
Sensor/SizeSony IMX678(C) Starvis 2 1/1.8" (7.68×4.32 mm)
Effective Pixels2.0 µm × 2.0 µm
Sensor ModelSony IMX678(C) Starvis 2
Sensor Size1/1.8" (7.68×4.32 mm)
Diagonal8.8 mm
Pixel Size2.0 µm × 2.0 µm
Resolution8MP (3840×2160)
Shutter TypeRolling shutter
Color TypeColor
SensorSony IMX678(C) Starvis 2 1/1.8" (7.68×4.32 mm)

Performance

Performance
Frame Rate (fps)USB-C: 30 fps @ 3840×2160 30 fps @ 2688×1512 30 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 30 fps @ 1920×1080 30 fps @ 1280×720
Frame RateUSB-C: 30 fps@3840×2160, 30 fps@2688×1512, 30 fps@1920×1080; Wi-Fi: 30 fps@3840×2160, 30 fps@1920×1080, 30 fps@1280×720
Exposure Time0.04 ms ~ 1000 ms
Sensitivity (Gain)1364 mV with 1/30s
Dark Current0.15 mV with 1/30s
Frame RateUSB-C: 30 fps @ 3840×2160 30 fps @ 2688×1512 30 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 30 fps @ 1920×1080 30 fps @ 1280×720

Interface & Connectivity

Interface & Connectivity
Output Resolution8MP (3840×2160)
Output InterfaceUSB-C Wi-Fi 802.11ac
Storage SupportNo local storage
Output InterfacesUSB-C, Wi-Fi 802.11ac
Software SupportToupView, ToupLite, iOS App, Android App
OS SupportWindows XP/Vista/7/8/8.1/10/11 (32 & 64 bit), macOS 10.10+, Linux (kernel 2.6.27+), iOS 11+, Android 5.1+
InterfaceUSB-C Wi-Fi 802.11ac

Cooling & Mechanical

Cooling & Mechanical
Lens MountC-mount
Power SupplyUSB-C DC 5 V/2 A
Dimensions50 × 50 × 112 mm
Weight0.5 kg
Operating Temperature-10 °C ~ +50 °C
Storage Temperature-20 °C ~ +60 °C
Operating Humidity30~80%RH
Storage Humidity10~60%RH

Other Published Specifications

Other Published Specifications
ModelWUCAM8MPA
Featured Functions4K ultra-high-definition output Starvis 2 back-illuminated sensor Dual-interface output mode Wi-Fi AP/STA mode switching ROI white balance Ultra-Fine color engine 3D noise reduction Local dynamic range adjustment Anti-flicker function Multi-client simultaneous connection
Product ModelWUCAM8MPA
Product SeriesUSB-C + Wi-Fi C-mount CMOS Camera
CertificationCE, FCC, RoHS, UL

Technical Files & Images

Datasheet (PDF)
Technical images (4)

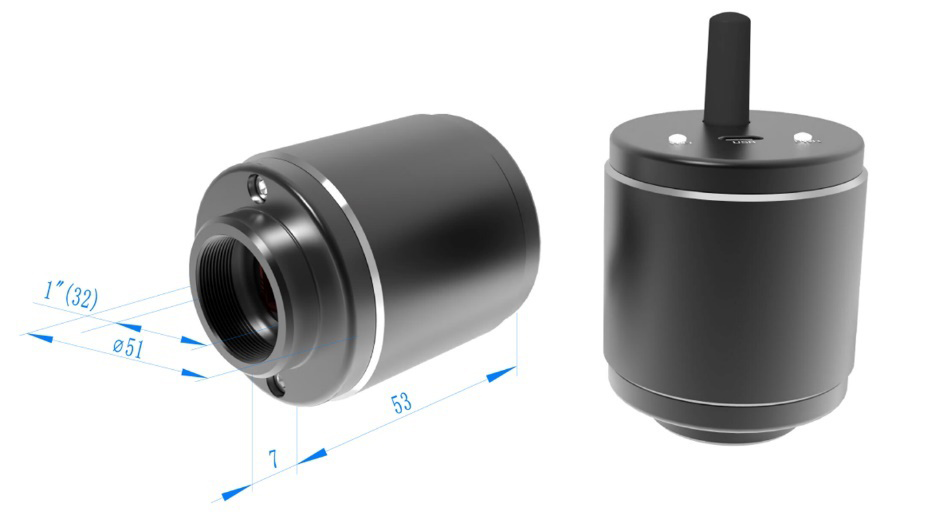

WUCAM DIM
WUCAM DIM

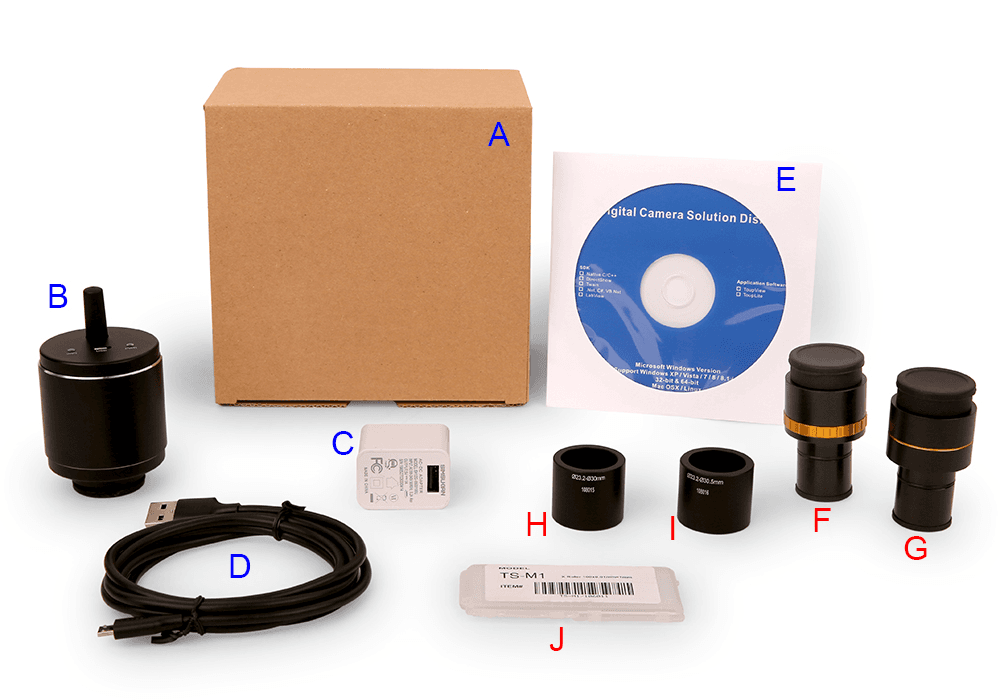

WUCAM Info
WUCAM Info
WUCAM Info
WUCAM Info
WUCAM DIM
WUCAM DIM
