Monochrome · Scientific Camera

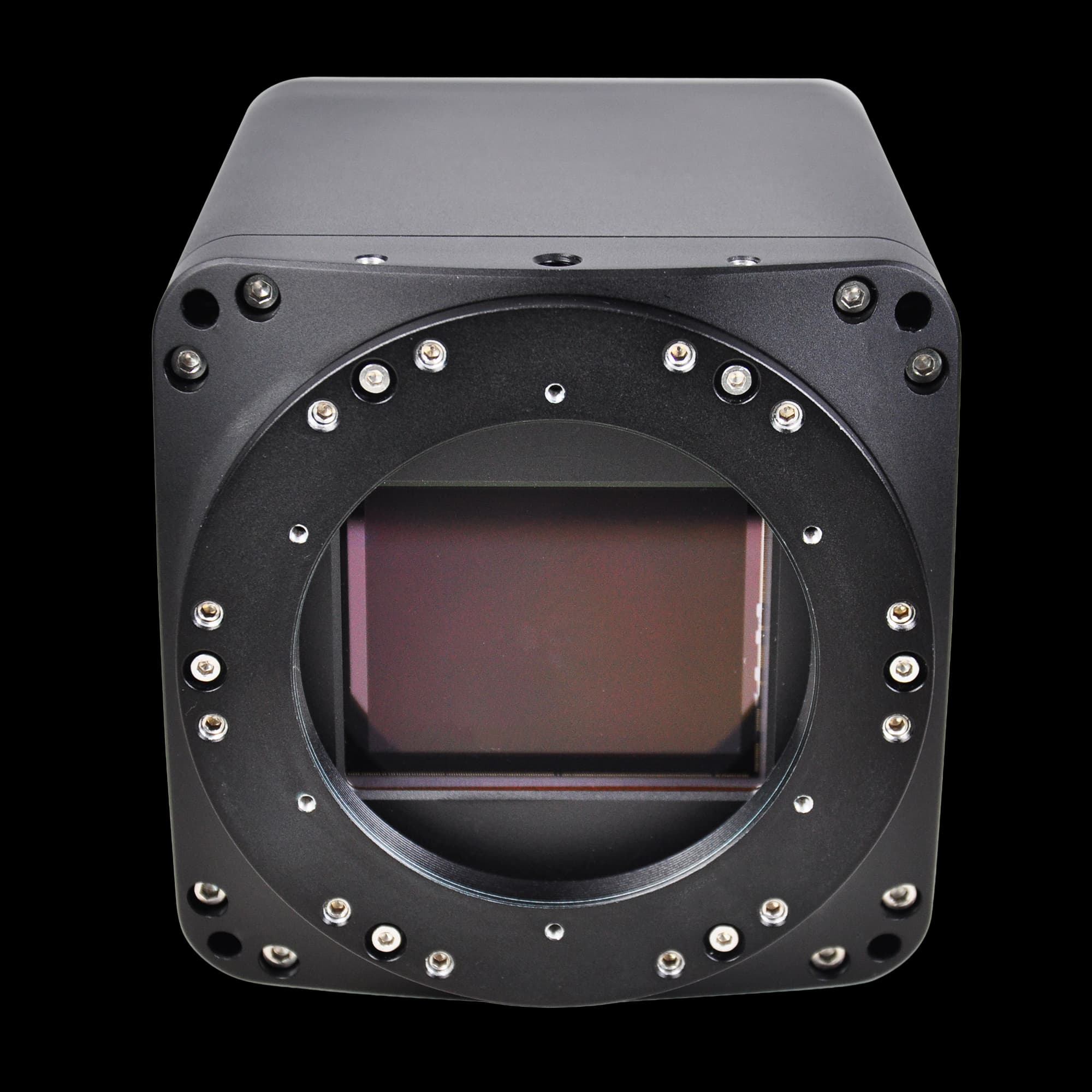

MAX128AM-CXP
- Sensor
- Sony IMX661ALR
- Resolution
- 120 MP (13312×9520)
- Pixel Size
- 3.45 µm × 3.45 µm
- Frame Rate
- 8-bit: 20 fps @ 13312×9520; 12-bit: 17 fps @ 13312×9520; 14-bit: 13 fps @ 13312×9520
- Interface
- CoaXPress
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX661ALR |
|---|---|
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 120 MP (13312×9520) |
| Sensor Diagonal | 3.6″ |
| Pixel Size | 3.45 µm × 3.45 µm |
Performance
| Frame Rate | 8-bit: 20 fps @ 13312×9520; 12-bit: 17 fps @ 13312×9520; 14-bit: 13 fps @ 13312×9520 |
|---|---|
| Exposure Time | 150 µs–36000 s |
| Bit Depth | 8/12/14-bit |
| Dynamic Range | 75.4 dB |
| Conversion Gain | 0.725 e⁻/ADU |
| Read Noise | 2.01 e⁻ |
| Full Well Capacity | 11.856 ke⁻ |
| Signal-to-Noise Ratio | 40.7 dB |
| Dark Current | 0.0131 / 0.0115 / 0.0082 / 0.0041 e⁻/pix/s @ 0 / -10 / -20 / -30 °C |
| Gain | 1×–50× |
| Binning | Software 2×2–8×8 |
Interface & Connectivity
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× non-isolated I/O |
|---|---|
| Data Interface | CoaXPress |
| OS Support | Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Interface | CoaXPress |
Cooling & Mechanical
| Lens Mount | M72 |
|---|---|
| Power Supply | DC 19 V |
| Power Consumption | 44.84 W (cooled); 8.417 W (uncooled) |
| Dimensions | 110 mm × 110 mm × 123.8 mm |
| Weight | 1.44 kg |
| Operating Temperature | -15 °C to +50 °C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Temperature | -30 °C to +70 °C |
Other Published Specifications
| Model | MAX128AM-CXP |
|---|---|
| Software | Complete SDK / imaging software |
| Certification | CE / FCC |
Technical Files & Images
Related Products
| Selection parameter | MAX128AM-CXP (current) | MAX102AC-10GSame MAX-Sony series | MAX102AC-U3Same MAX-Sony series | MAX102AM-10GSame MAX-Sony series |
|---|---|---|---|---|
| Sensor | Sony IMX661ALR | IMX461AQR (C, RS) | IMX461AQR (C, RS) | IMX461ALR (M, RS) |
| Image type | Monochrome | Color | Color | Monochrome |
| Resolution | 120 MP (13312×9520) | 102 MP (11648×8742) | 102 MP (11648×8742) | 102 MP (11648×8742) |
| Pixel size | 3.45 µm × 3.45 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
| Read noise | 2.01 e⁻ | 3.64e− | 3.64e− | 3.57 e− |
| Frame / line rate | 8-bit: 20 fps @ 13312×9520; 12-bit: 17 fps @ 13312×9520; 14-bit: 13 fps @ 13312×9520 | 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 | 3.5 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 | 8.7 fps @ 11648×8742; 8.7 fps @ 5824×4370; 27.8 fps @ 3872×2912; 82.5 fps @ 1280×970 |
| Interface | CoaXPress | 10GigE | USB3.0 | 10GigE |
| Cooling / shutter | Global Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
