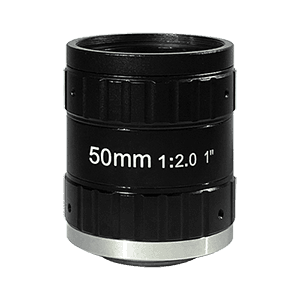

PMS-50LC8M — 50 mm FA lens
PMS-50LC8M 50 mm fa lens in the 8 MP · 1-inch FA lenses range. Focal length 50mm; iris range F2.0-close. Focus range 0.25m~∞.
- Focal Length
- 50mm
- Iris Range
- F2.0-close
- Sensor Format
- 1"(16mm)
- Lens Mount
- C-mount
- Focus Range
- 0.25m~∞
Complete specifications
| Sensor Format | 1"(16mm) |
|---|---|
| Wavelength Range | 420~1000nm |
| Focal Length | 50mm |
| Lens Mount | C-mount |
| Iris Range | F2.0-close |
| FOV at 1 inch (D×H×V) | 18.38°×14.70°×10.98° |
| FOV at 1/2 inch (D×H×V) | 9.34°×7.42°×5.5° |
| FOV at 1/3 inch (D×H×V) | 6.96°×5.53×4.16° |
| Object size at 1 inch (D×H×V) | 72.50×57.94×43.34mm |
| Object size at 1/2 inch (D×H×V) | 36.18×28.76×21.66mm |
| Object size at 1/3 inch (D×H×V) | 27.26×21.74×16.34mm |
| Optical Back Focal Length (in air) | 21.35mm |
| Focus Adjustment | Manual |
| Iris Adjustment | M-Iris |
| Distortion at 1 inch | -0.013%@y=8.0mm |
| Distortion at 1/2 inch | 0.010%@y=4.0mm |
| Distortion at 1/3 inch | 0.04%@y=3.0mm |
| Focus Range | 0.25m~∞ |
| Filter Thread | M37×0.5mm |
| Weight | 105.25g |
| Operating Temperature | -20°C~+60°C |
| Resolution Rating | 8 MP |

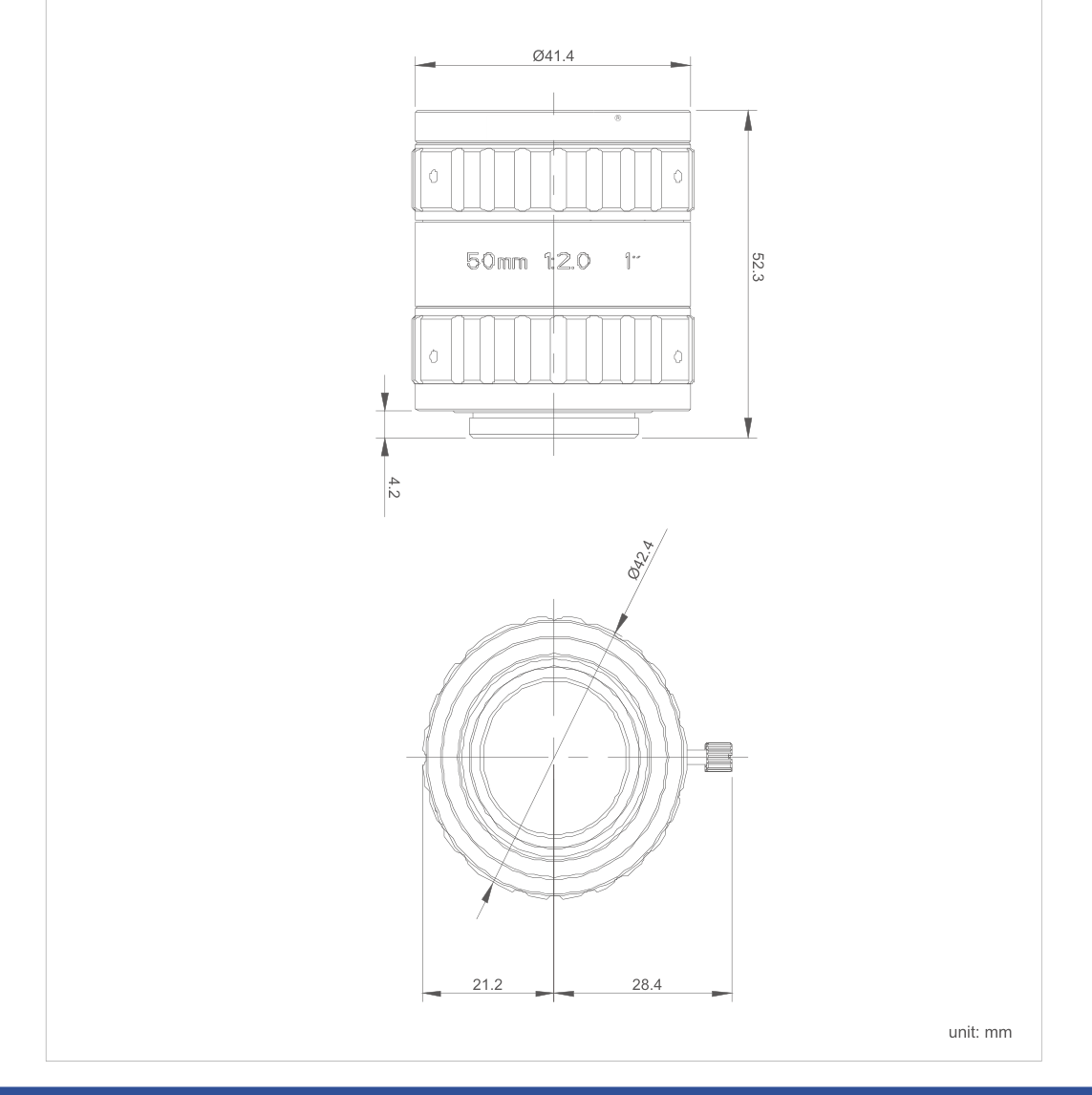

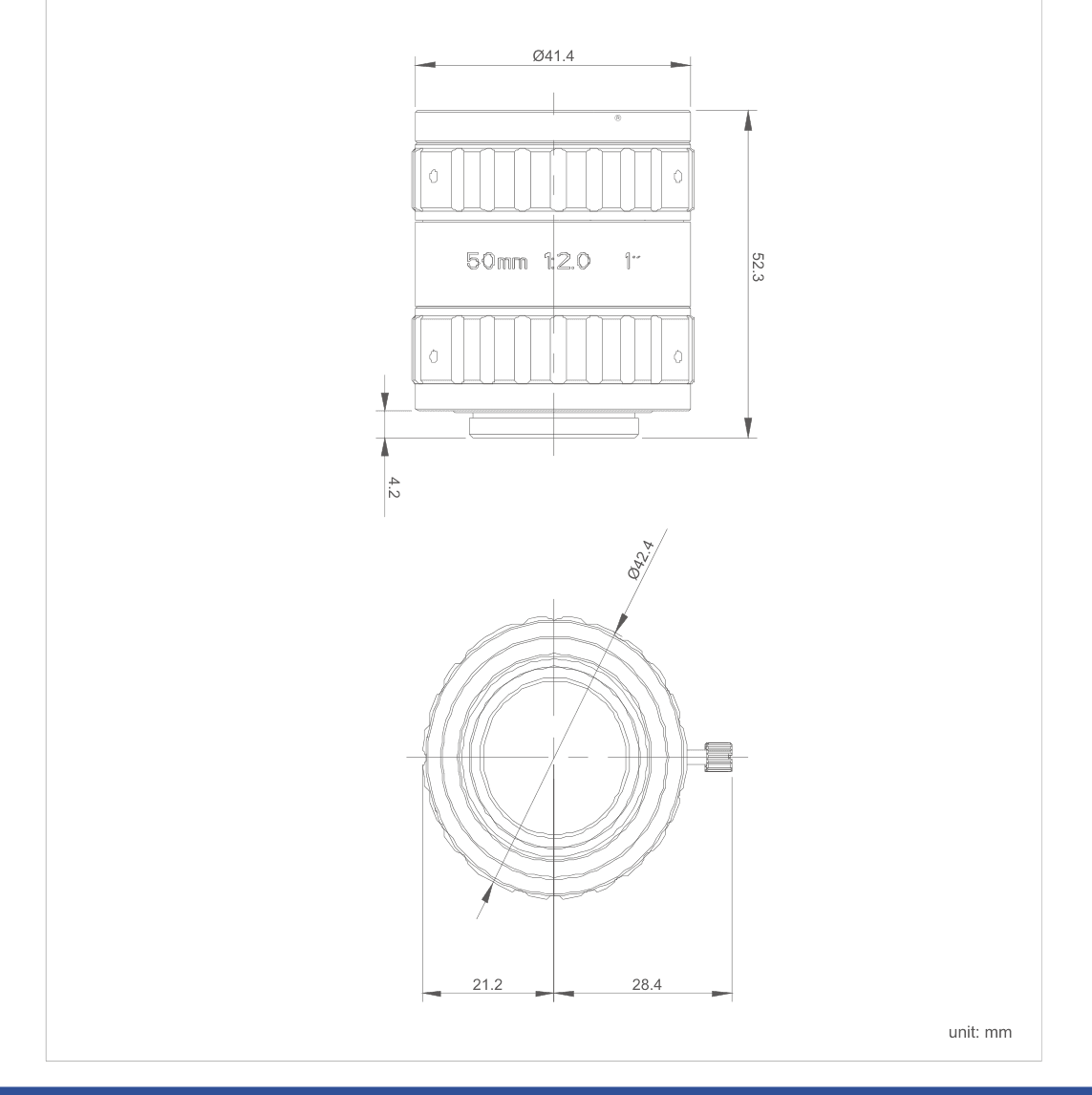

Technical drawings
