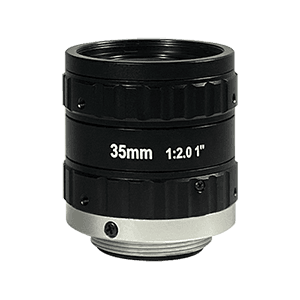

PMS-35LC8M — 35 mm FA lens
PMS-35LC8M 35 mm fa lens in the 8 MP · 1-inch FA lenses range. Focal length 35mm; iris range F2.0-close. Focus range 0.2m~∞.
- Focal Length
- 35mm
- Iris Range
- F2.0-close
- Sensor Format
- 1"(16mm)
- Lens Mount
- C-mount
- Focus Range
- 0.2m~∞
Complete specifications
| Sensor Format | 1"(16mm) |
|---|---|
| Wavelength Range | 420~1000nm |
| Focal Length | 35mm |
| Lens Mount | C-mount |
| Iris Range | F2.0-close |
| FOV at 1 inch (D×H×V) | 26.10°×20.83°×15.72° |
| FOV at 1/2 inch (D×H×V) | 13.28°×10.65°×7.94° |
| FOV at 1/3 inch (D×H×V) | 9.92°×7.92°×6.00° |
| Object size at 1 inch (D×H×V) | 81.10×64.88×48.66mm |
| Object size at 1/2 inch (D×H×V) | 40.52×32.42×24.31mm |
| Object size at 1/3 inch (D×H×V) | 30.42×24.34×18.25mm |
| Optical Back Focal Length (in air) | 12.96mm |
| Focus Adjustment | Manual |
| Iris Adjustment | M-Iris |
| Distortion at 1 inch | 0.28%@y=8mm |
| Distortion at 1/2 inch | 0.07%@y=4.0mm |
| Distortion at 1/3 inch | 0.04%@y=3.0mm |
| Focus Range | 0.2m~∞ |
| Filter Thread | M30.5×0.5mm |
| Weight | 70.35g |
| Operating Temperature | -20°C~+60°C |
| Resolution Rating | 8 MP |

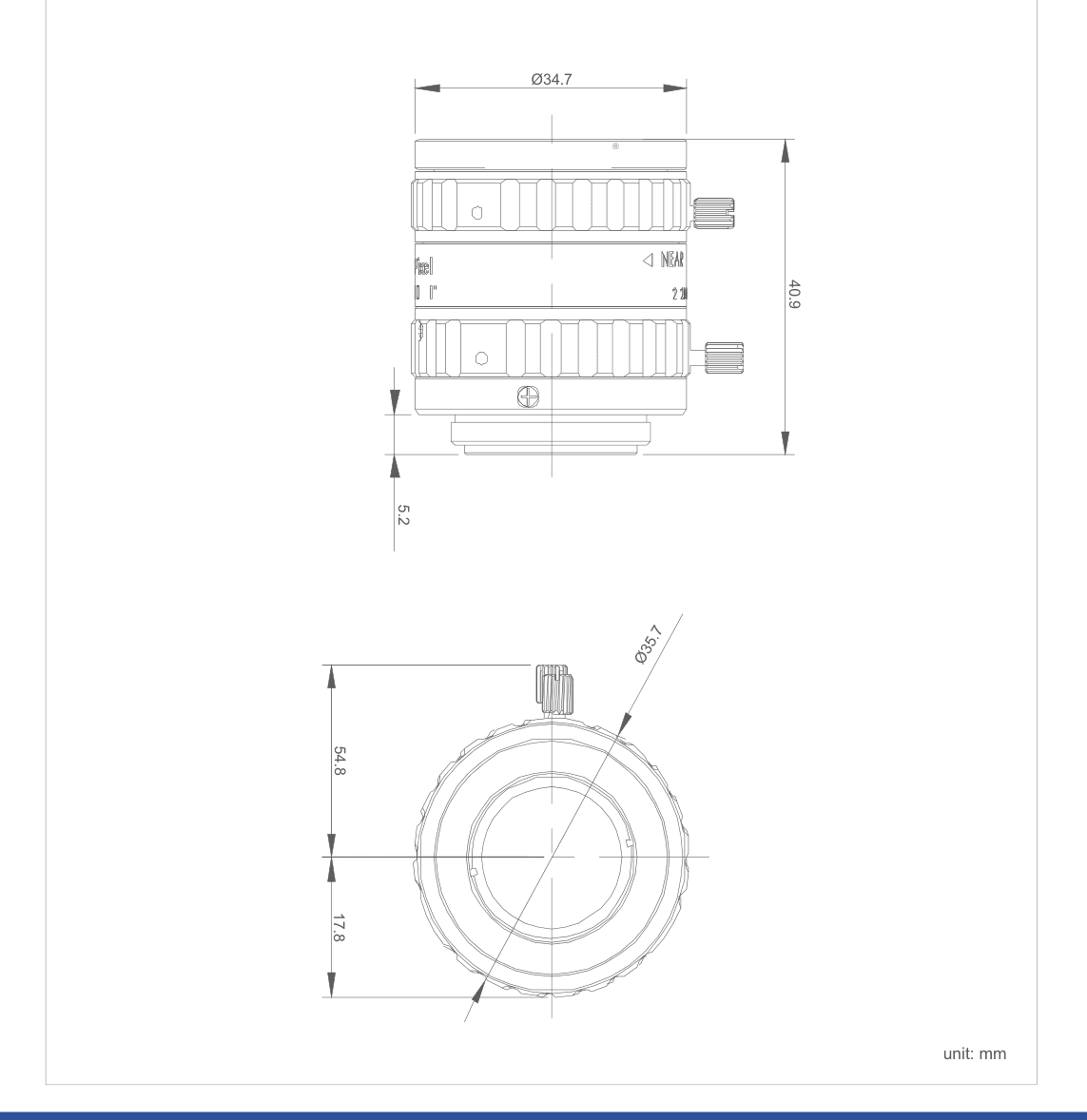

Technical drawings
