PMS-12LC8M — 12 mm FA lens
PMS-12LC8M 12 mm fa lens in the 8 MP · 1-inch FA lenses range. Focal length 12mm; iris range F2.0-C. Focus range 0.1m~∞.
- Focal Length
- 12mm
- Iris Range
- F2.0-C
- Sensor Format
- 1"
- Image Circle
- 16mm
- Lens Mount
- C-mount
- Focus Range
- 0.1m~∞
Complete specifications
| Sensor Format | 1" |
|---|---|
| Image Circle | 16mm |
| Focal Length | 12mm |
| Iris Range | F2.0-C |
| Focus Range | 0.1m~∞ |
| FOV at 1 inch (D×H×V) | 69.63°×60.71°×40.33° |
| FOV at 1/2 inch (D×H×V) | 37.32°×30.11°×22.74° |
| Resolution Rating | 8MP |
| Object size at 1 inch (D×H×V) | 155.01×130.05×90.3mm |
| Object size at 1/2 inch (D×H×V) | 74.93×59.76×44.73mm |
| Optical Back Focal Length (in air) | 15.07mm |
| Focus Adjustment | Manual |
| Iris Adjustment | Manual |
| Distortion at 1 inch | -4.1%@y=8mm |
| Distortion at 1/2 inch | -1.27%@y=4.0mm |
| Filter Thread | M35.5×0.5mm |
| Lens Mount | C-mount |
| Operating Temperature | -20°C~+60°C |

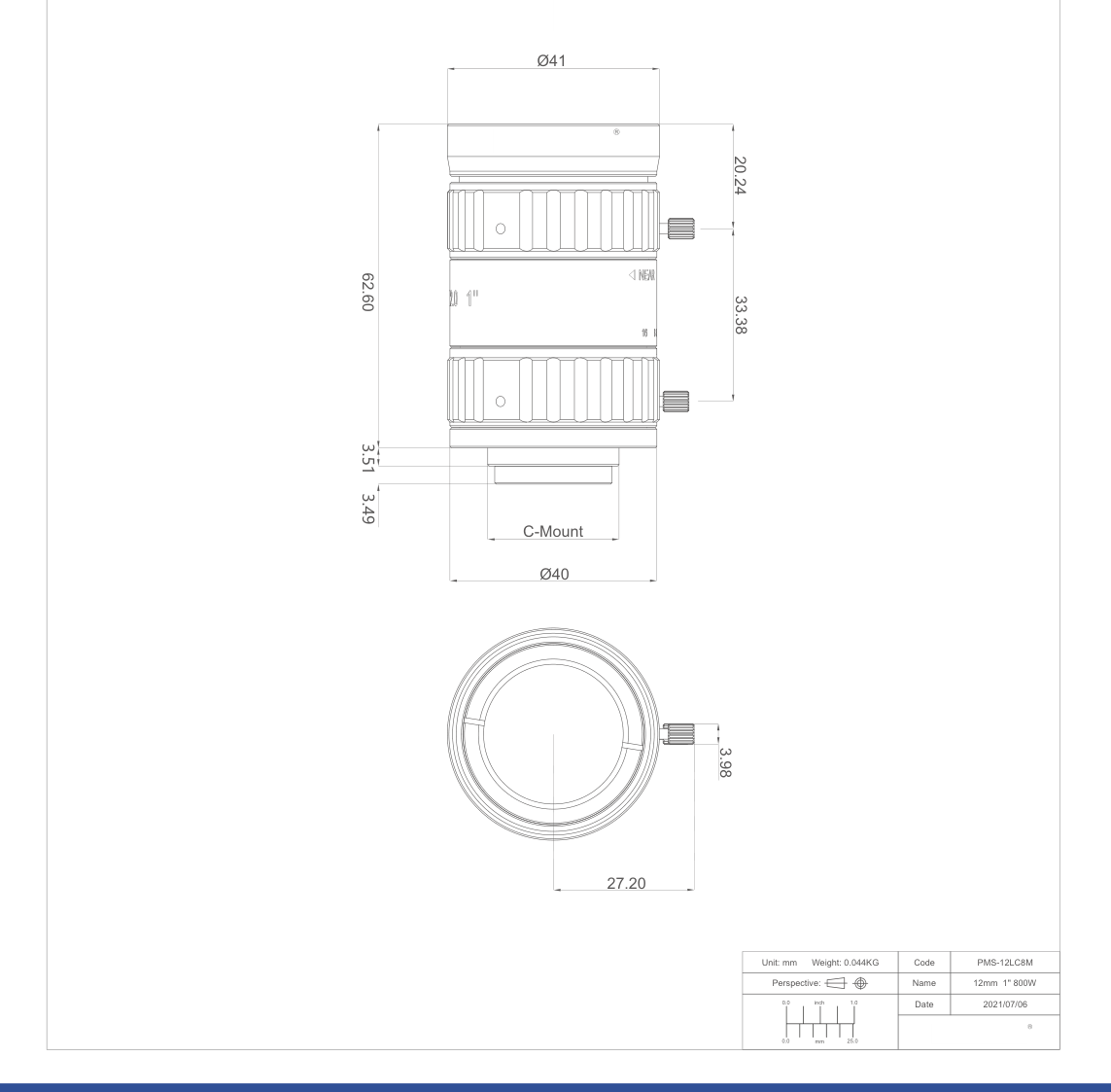

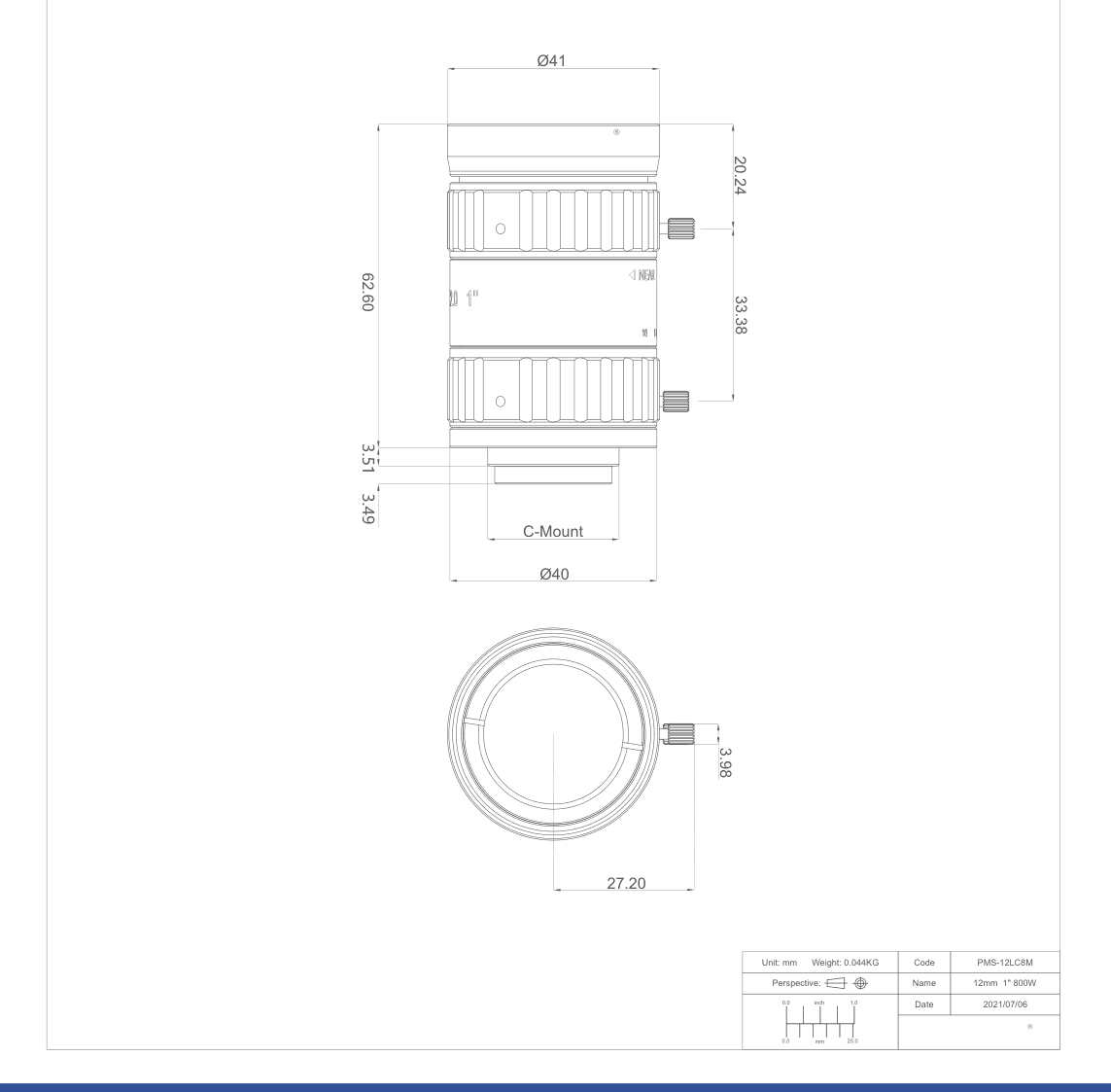

Technical drawings
