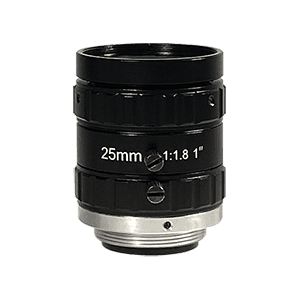

PMS-25LC8M — 25 mm FA lens
PMS-25LC8M 25 mm fa lens in the 8 MP · 1-inch FA lenses range. Focal length 25mm; iris range F1.8-close. Focus range 0.15m~∞.
- Focal Length
- 25mm
- Iris Range
- F1.8-close
- Sensor Format
- 1"(16mm)
- Lens Mount
- C-mount
- Focus Range
- 0.15m~∞
Complete specifications
| Sensor Format | 1"(16mm) |
|---|---|
| Wavelength Range | 420~1000nm |
| Focal Length | 25mm |
| Lens Mount | C-mount |
| Iris Range | F1.8-close |
| FOV at 1 inch (D×H×V) | 36.21°×29.08°×21.86° |
| FOV at 1/2 inch (D×H×V) | 18.45°×14.72°×11.08° |
| FOV at 1/3 inch (D×H×V) | 13.81°×11.08°×8.34° |
| Object size at 1 inch (D×H×V) | 92.4×73.3×54.6mm |
| Object size at 1/2 inch (D×H×V) | 45.5×36.4×27.2mm |
| Object size at 1/3 inch (D×H×V) | 34.2×27.3×20.5mm |
| Optical Back Focal Length (in air) | 12.68mm |
| Focus Adjustment | Manual |
| Iris Adjustment | M-Iris |
| Distortion at 1 inch | -1.41%@y=8mm |
| Distortion at 1/2 inch | -0.32%@y=4.0mm |
| Distortion at 1/3 inch | -0.18%@y=3.0mm |
| Focus Range | 0.15m~∞ |
| Filter Thread | M30.5×0.5mm |
| Weight | 73.65g |
| Operating Temperature | -20°C~+60°C |
| Resolution Rating | 8 MP |

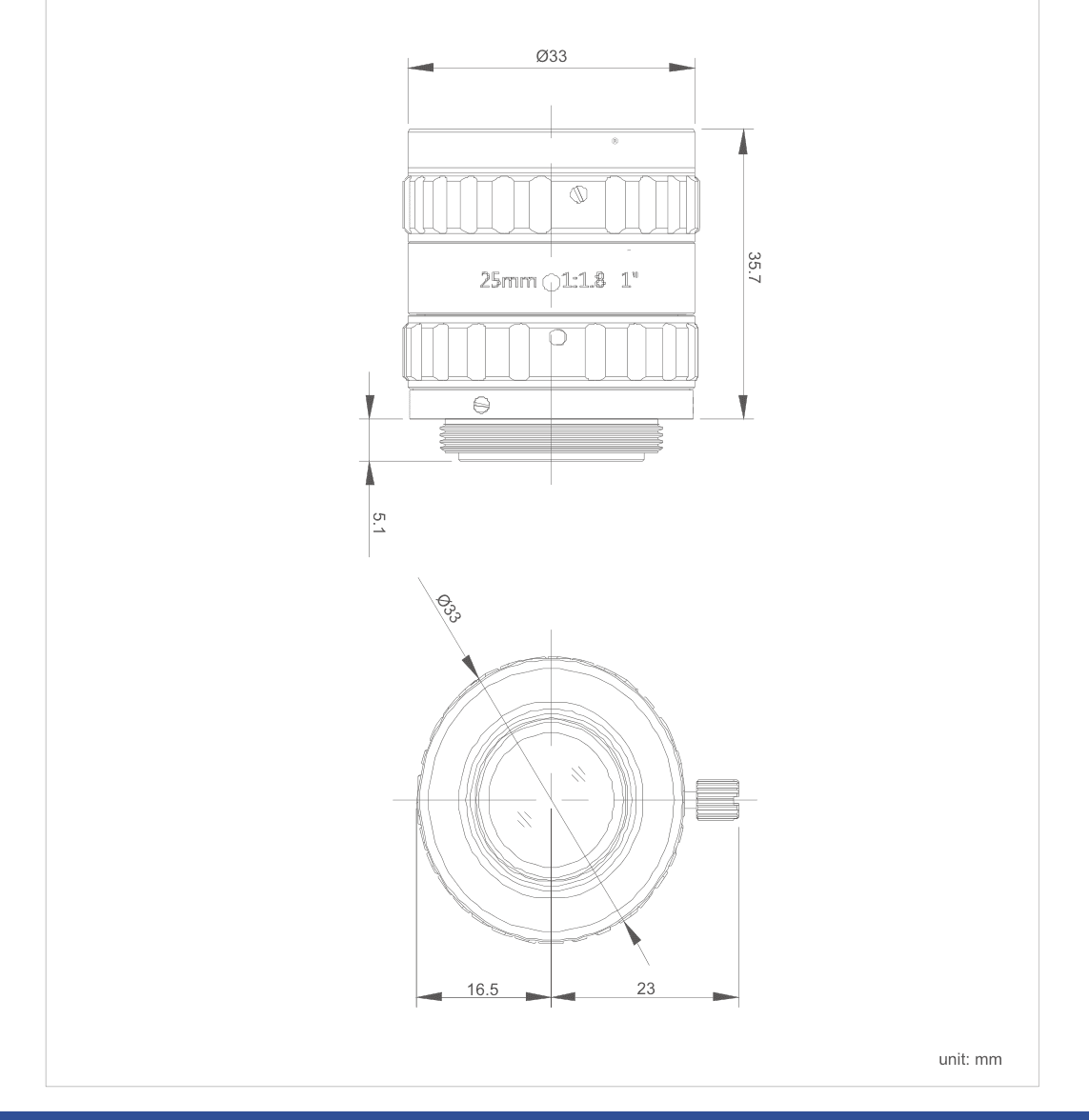

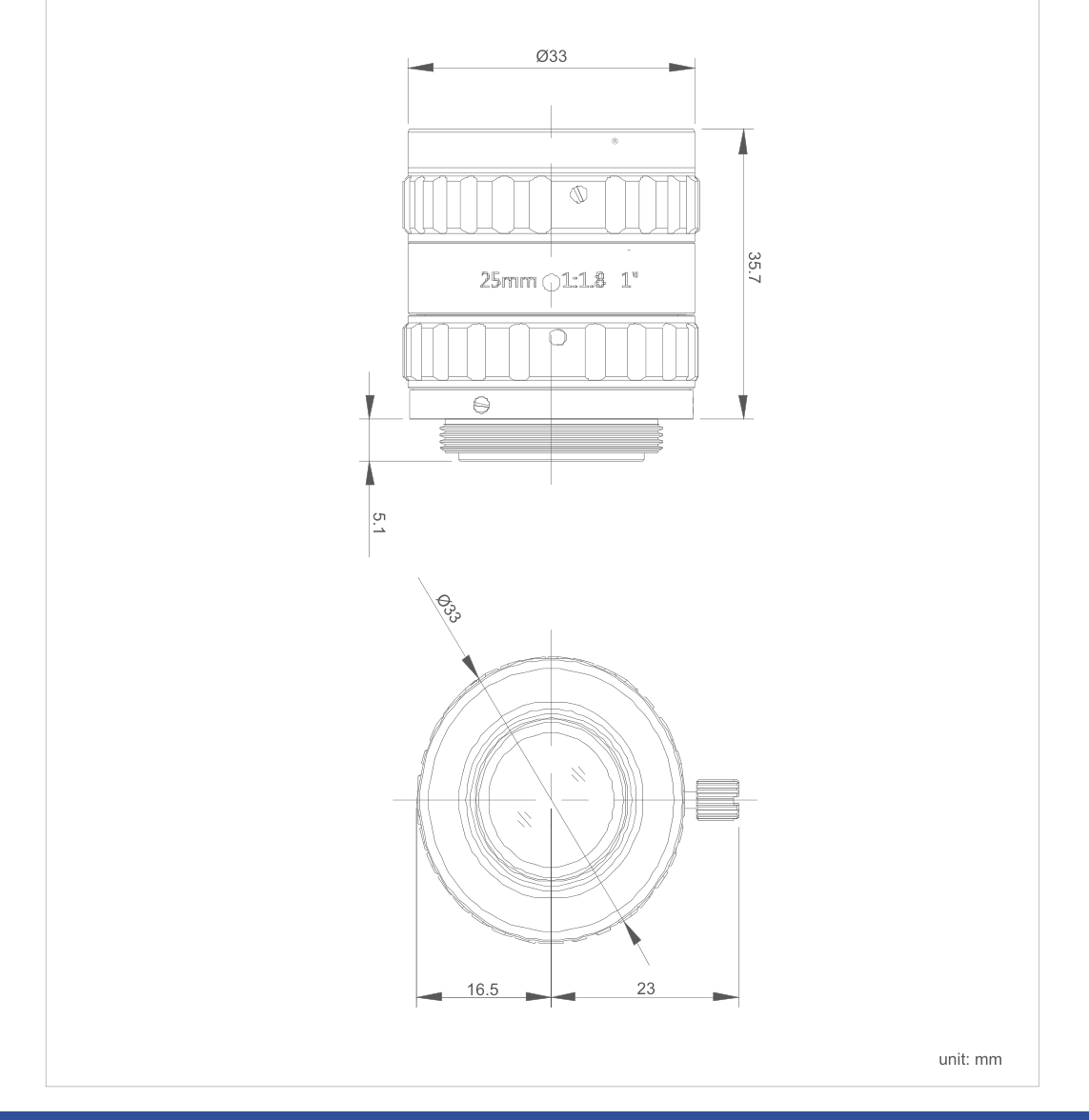

Technical drawings
