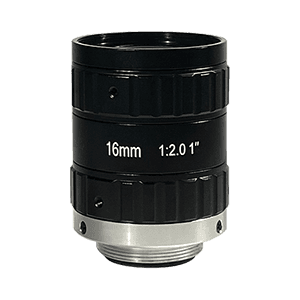

PMS-16LC8M — 16 mm FA lens
PMS-16LC8M 16 mm fa lens in the 8 MP · 1-inch FA lenses range. Focal length 16mm; iris range F2.0-close. Focus range 0.1m~∞.
- Focal Length
- 16mm
- Iris Range
- F2.0-close
- Sensor Format
- 1"(16mm)
- Lens Mount
- C-mount
- Focus Range
- 0.1m~∞
Complete specifications
| Sensor Format | 1"(16mm) |
|---|---|
| Wavelength Range | 420~1000nm |
| Focal Length | 16mm |
| Lens Mount | C-mount |
| Iris Range | F2.0-close |
| FOV at 1 inch (D×H×V) | 53.94°×43.92°×33.45° |
| FOV at 1/2 inch (D×H×V) | 28.23°×22.62°×16.97° |
| FOV at 1/3 inch (D×H×V) | 21.24°×16.98°×12.94° |
| Object size at 1 inch (D×H×V) | 112.75×89.28×66.33mm |
| Object size at 1/2 inch (D×H×V) | 55.09×43.96×32.82mm |
| Object size at 1/3 inch (D×H×V) | 41.19×33.32×24.58mm |
| Optical Back Focal Length (in air) | 11.20mm |
| Focus Adjustment | Manual |
| Iris Adjustment | M-Iris |
| Distortion at 1 inch | -2.02%@y=8mm |
| Distortion at 1/2 inch | -0.68%@y=4.0mm |
| Distortion at 1/3 inch | -0.39%@y=3.0mm |
| Focus Range | 0.1m~∞ |
| Filter Thread | M34×0.5mm |
| Weight | 101.25g |
| Operating Temperature | -20°C~+60°C |
| Resolution Rating | 8 MP |

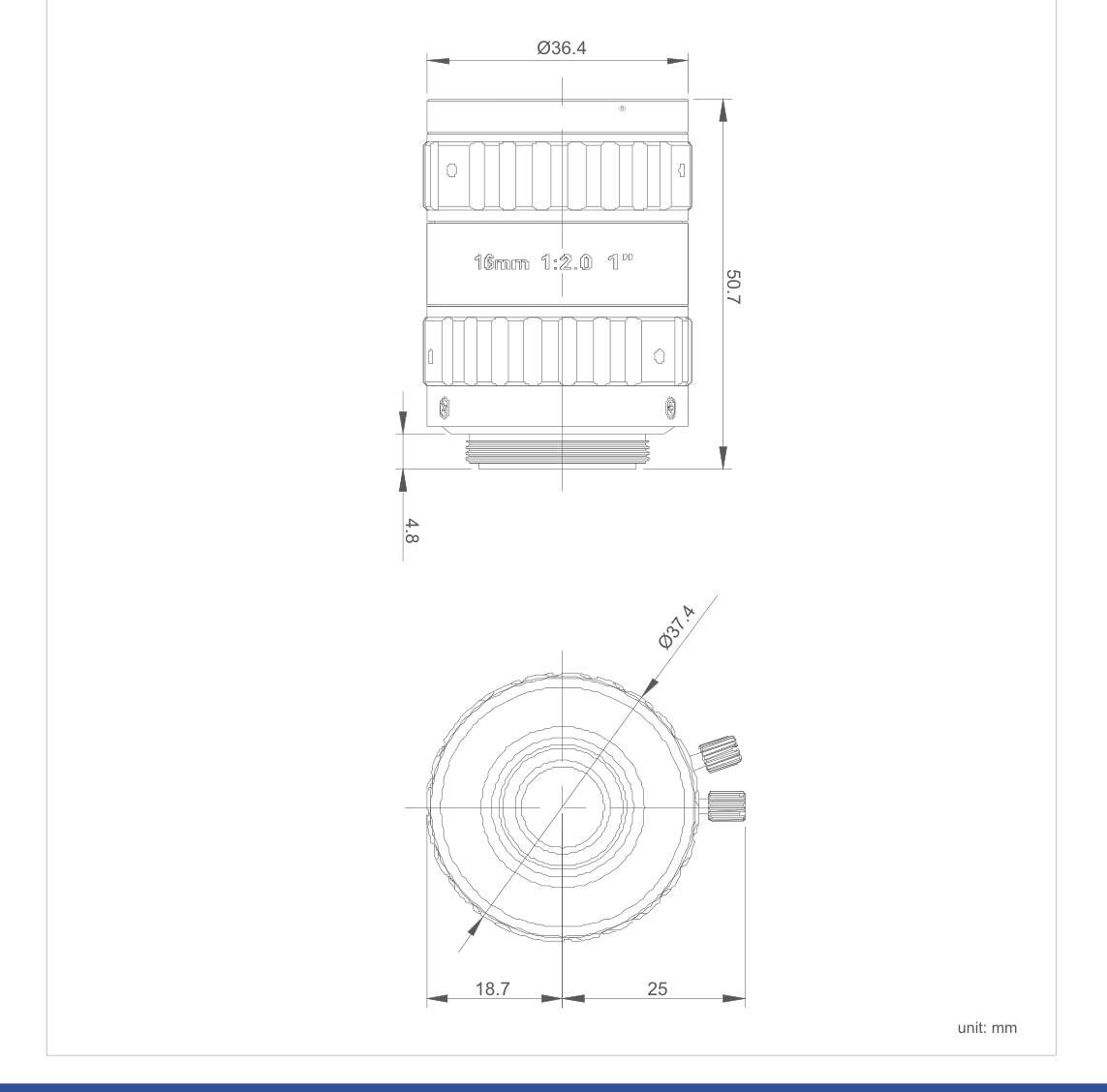

Technical drawings
