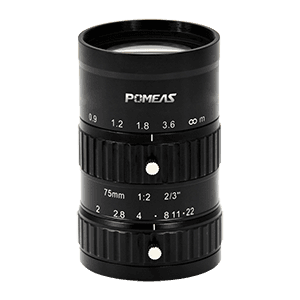

PMS-75MC5M — 75 mm FA lens
PMS-75MC5M 75 mm fa lens in the 5 MP · 2/3-inch FA lenses range. Focal length 75 mm; iris range F2.0-F22. Focus range 0.9m-∞.
- Focal Length
- 75 mm
- Iris Range
- F2.0-F22
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.9m-∞
Complete specifications
| Focal Length | 75 mm |
|---|---|
| Sensor Format | 2/3" |
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length (model table) | 50mm |
| Iris Range | F2.0-F22 |
| Focus Range | 0.9m-∞ |
| Distortion | 0.04%@y = 5.5mm 0.02%@y = 4.0mm |
| Back Focal Length | 13.76mm |
| Lens Mount | C-mount |
| Filter Thread | M40.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 8.4°×6.7°×5.0° |
| Field of View (D×H×V) — 1/2" | 6.1°×4.9°×3.7° |
| Resolution Rating | 5 MP |

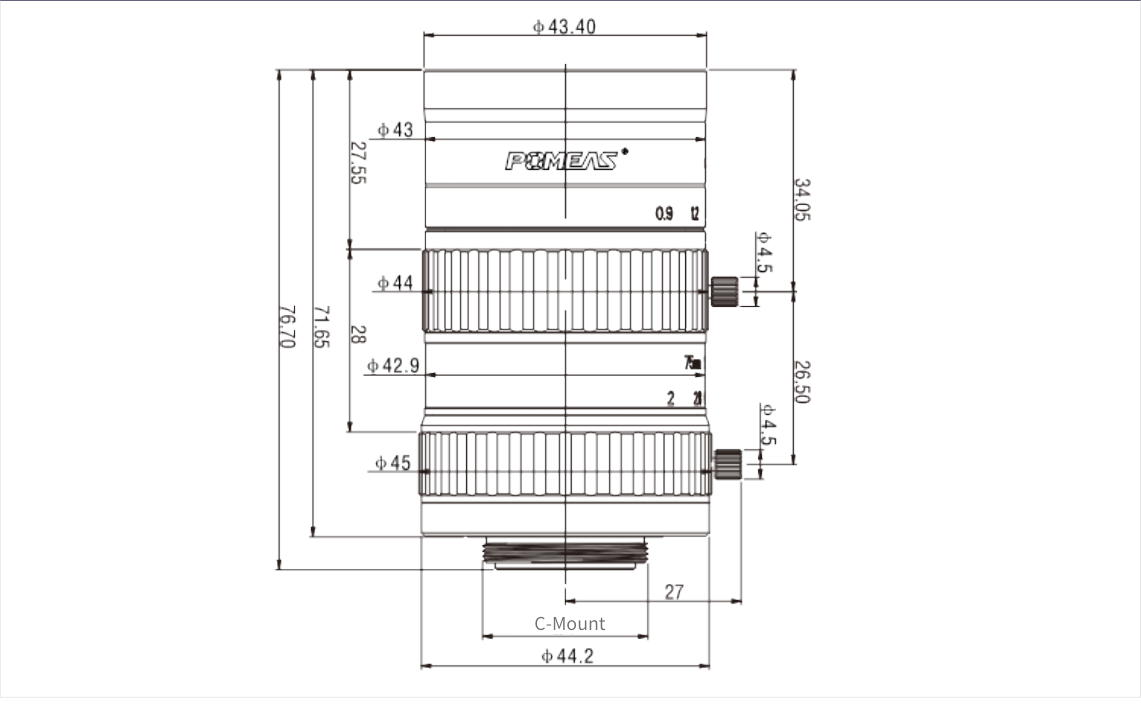

Technical drawings
