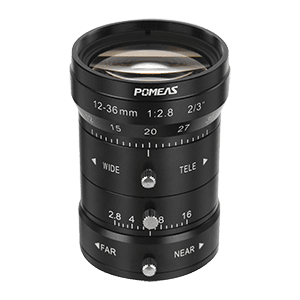

PMS-1236MC5M — 12-36 mm FA lens
PMS-1236MC5M 12-36 mm fa lens in the 5 MP · 2/3-inch FA lenses range. Focal length 12-36 mm; iris range F2.8- F16. Focus range 0.15m-∞(wide) 0.45m-∞(tele).
- Focal Length
- 12-36 mm
- Iris Range
- F2.8- F16
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞(wide) 0.45m-∞(tele)
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 12-36 mm |
| Iris Range | F2.8- F16 |
| Focus Range | 0.15m-∞(wide) 0.45m-∞(tele) |
| Distortion | -3.4%@y = 5.5mm(wide) 1.4%@y = 5.5mm(tele) |
| Back Focal Length | 18.93mm(wide) 18.87mm(tele) |
| Lens Mount | C-mount |
| Filter Thread | M40.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 50.8°×41.2°×31.2°(wide); 17.2°×13.8°×10.4°(tele) |
| Field of View (D×H×V) — 1/2" | 37.7°×30.3°×22.8°(wide); 12.6°×10.1°×7.6°(tele) |
| Resolution Rating | 5 MP |

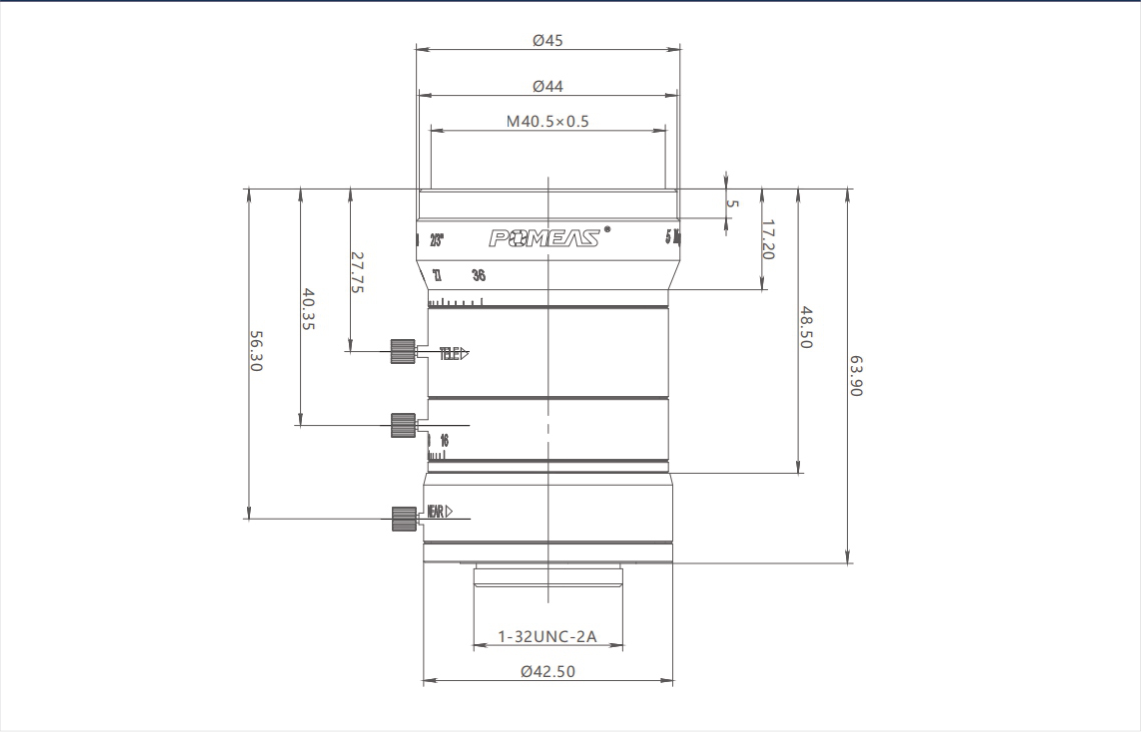

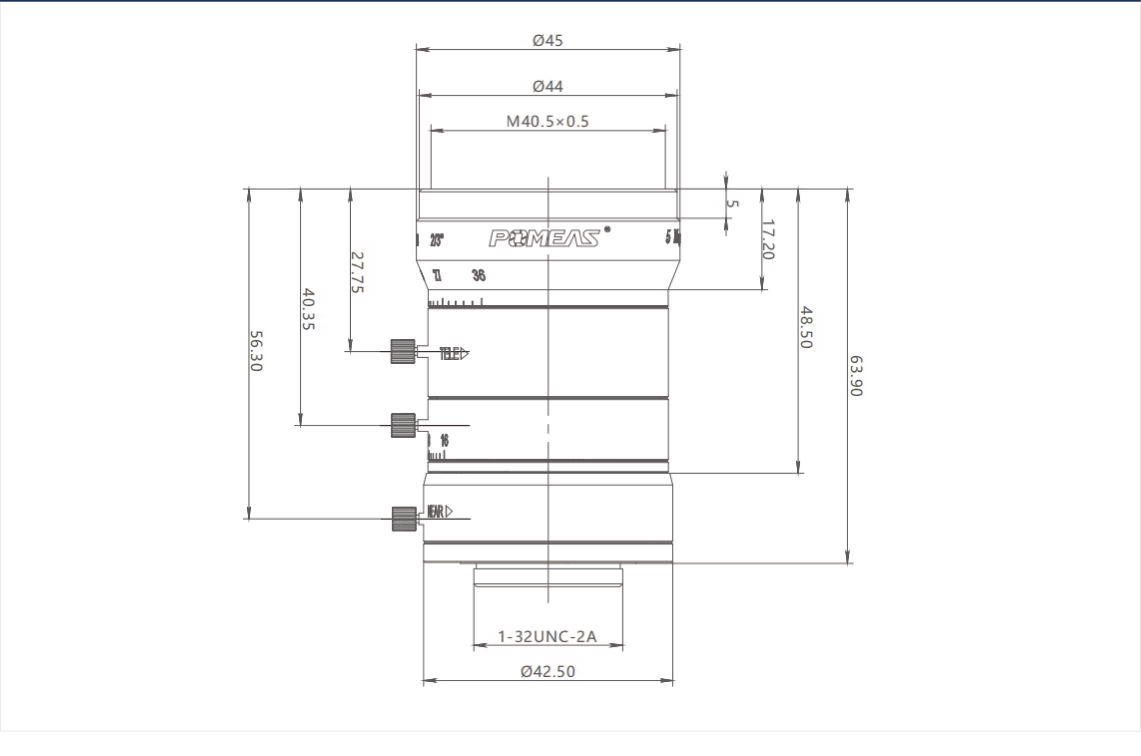

Technical drawings
