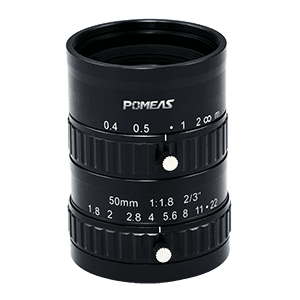

PMS-50MC5M — 50 mm FA lens
PMS-50MC5M 50 mm fa lens in the 5 MP · 2/3-inch FA lenses range. Focal length 50mm; iris range F1.8-F22. Focus range 0.4m-∞.
- Focal Length
- 50mm
- Iris Range
- F1.8-F22
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.4m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 50mm |
| Iris Range | F1.8-F22 |
| Focus Range | 0.4m-∞ |
| Distortion | -0.03%@y = 5.5mm |
| Back Focal Length | 13.63mm |
| Lens Mount | C-mount |
| Filter Thread | M37.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 12.5°×10.1°×7.6° |
| Field of View (D×H×V) — 1/2" | 9.1°×7.4°×5.5° |
| Resolution Rating | 5 MP |

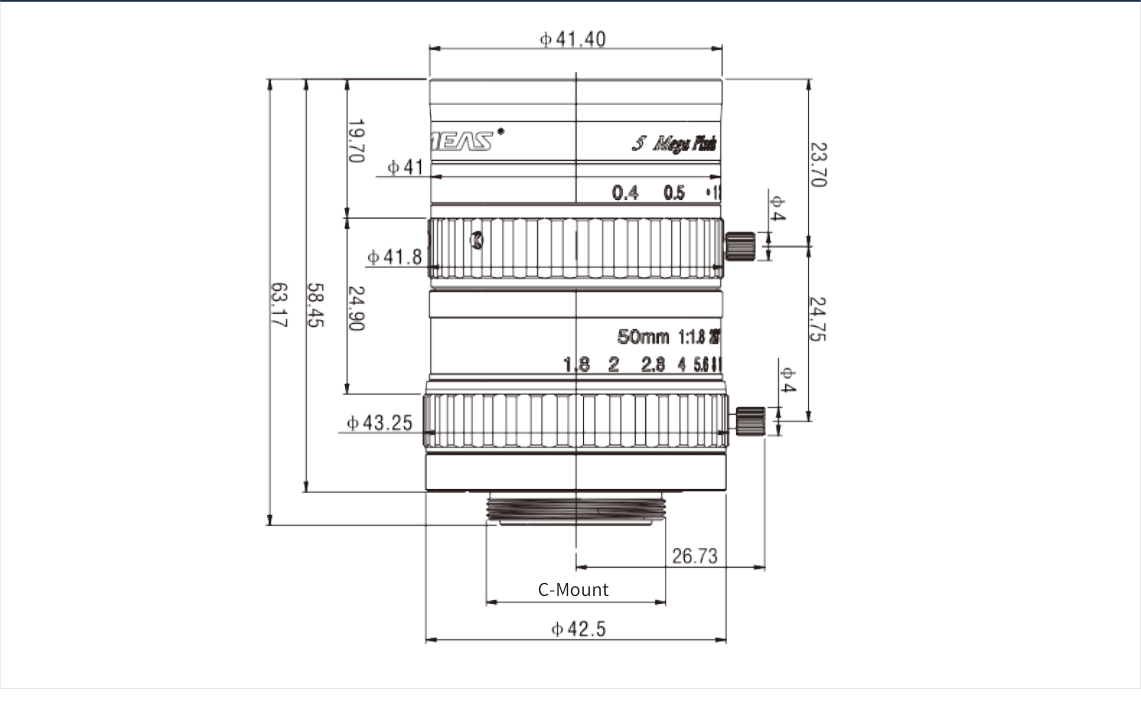

Technical drawings
