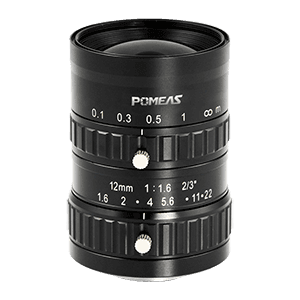

PMS-12MC5M — 12 mm FA lens
PMS-12MC5M 12 mm fa lens in the 5 MP · 2/3-inch FA lenses range. Focal length 12 mm; iris range F1.6- F22. Focus range 0.1m-∞.
- Focal Length
- 12 mm
- Iris Range
- F1.6- F22
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.1m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 12 mm |
| Iris Range | F1.6- F22 |
| Focus Range | 0.1m-∞ |
| Distortion | -0.53%@y = 5.5mm |
| Back Focal Length | 12.42mm |
| Lens Mount | C-mount |
| Filter Thread | M37.5×0.5mm |
| Field Of View(DxHxV) | 2/3" 39.8°×30.8° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 5 MP |

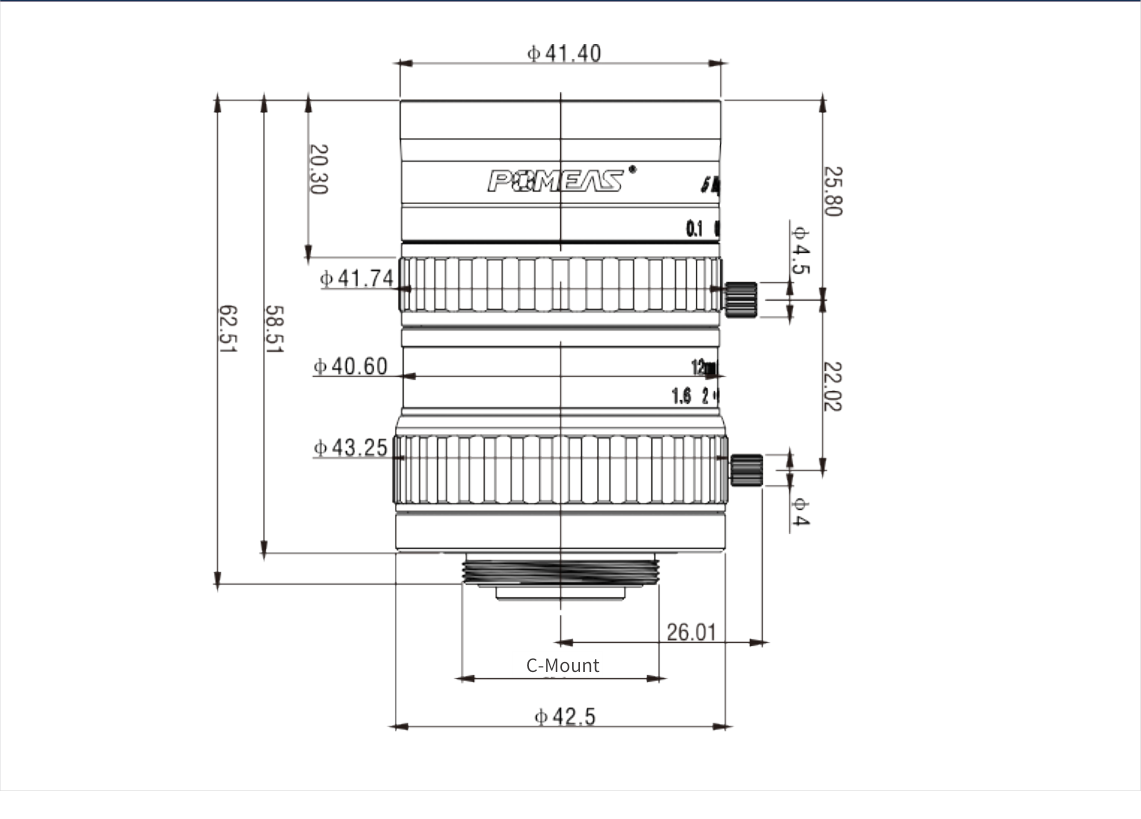

Technical drawings
