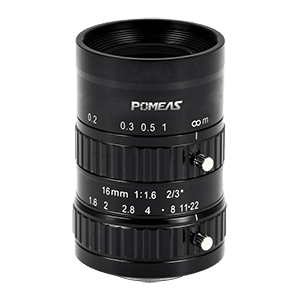

PMS-16MC5M — 16 mm FA lens
PMS-16MC5M 16 mm fa lens in the 5 MP · 2/3-inch FA lenses range. Focal length 16mm; iris range F1.6-F22. Focus range 0.2m-∞.
- Focal Length
- 16mm
- Iris Range
- F1.6-F22
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.2m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 16mm |
| Iris Range | F1.6-F22 |
| Focus Range | 0.2m-∞ |
| Distortion | -0.07%@y = 5.5mm |
| Back Focal Length | 12.36mm |
| Lens Mount | C-mount |
| Filter Thread | M37.5×0.5mm |
| Field Of View(DxHxV) | 2/3" 30.8°×23.4° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 5 MP |

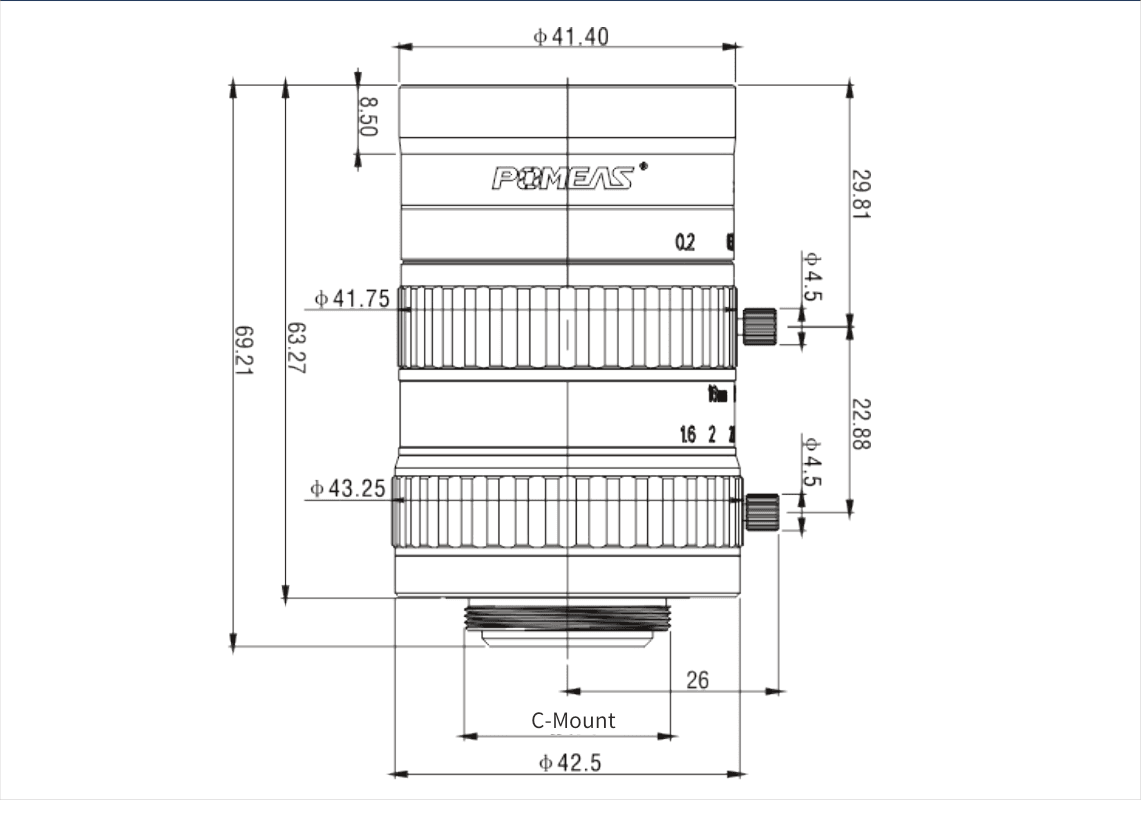

Technical drawings
