Showing cameras built around IMX678. Refine the shortlist with your application requirements.

650
Camera models
71
Cooled
216
Global shutter
16
Matched

Results

16 cameras matched

CXCAM1080P8MPC
Multi-Interface Camera
CXCAM1080P8MPC

CXCAM

Sensor
Sony IMX678 (Color)
Resolution
8 MP (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080
Mount
C-mount
Interface
Type-C Monitor, USB Video, Wi-Fi
Sensor size
1/1.8" (7.68 × 4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
E3ISPM08300KPE
Microscopy Camera
E3ISPM08300KPE

E3ISPM

Sensor
IMX678 (C)
Resolution
8.3M (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
45 fps @ 3840×2160; 60 fps @ 1920×1080
Mount
C-mount
Interface
USB3.0
Sensor size
7.68 mm × 4.32 mm
Band
380–700 nm (visible)
Shutter
Rolling
G3M678C
Astronomy Camera
G3M678C

G3M planetary / guide

Sensor
Sony IMX678 color CMOS — STARVIS 2 back-illuminated color CMOS
Resolution
8.3 MP (3840 × 2160)
Pixel size
2 µm
Frame rate
47 fps
Mount
1.25-inch telescope nosepiece / C-mount
Interface
USB 3.0
Sensor size
1/1.8-inch, 7.7 × 4.3 mm
Band
380–690 nm
Shutter
Rolling
G3M678M
Astronomy Camera
G3M678M

G3M planetary / guide

Sensor
Sony IMX678 monochrome CMOS — STARVIS 2 back-illuminated monochrome CMOS
Resolution
8.3 MP (3840 × 2160)
Pixel size
2 µm
Frame rate
47 fps
Mount
1.25-inch telescope nosepiece / C-mount
Interface
USB 3.0
Sensor size
1/1.8-inch, 7.7 × 4.3 mm
Band
380–1100 nm
Shutter
Rolling
I3ISPM08300KPA
Industrial / Analytical Camera
I3ISPM08300KPA

I3ISPM

Sensor
Sony IMX678-AAQR
Resolution
8.3 MP (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount
C-mount
Interface
USB3.0
Sensor size
7.68 mm × 4.32 mm
Band
380–700 nm (visible)
Shutter
Rolling
IUA8300KME
Industrial / Analytical Camera
IUA8300KME

IUA

Sensor
Sony IMX678-AAMR1-C
Resolution
8.3MP (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor size
7.68 mm × 4.32 mm
Band
380–700 nm (visible)
Shutter
Rolling
IUA8300KPE
Industrial / Analytical Camera
IUA8300KPE

IUA

Sensor
Sony IMX678-AAQR1-C
Resolution
8.3MP (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor size
7.68 mm × 4.32 mm
Band
380–700 nm (visible)
Shutter
Rolling

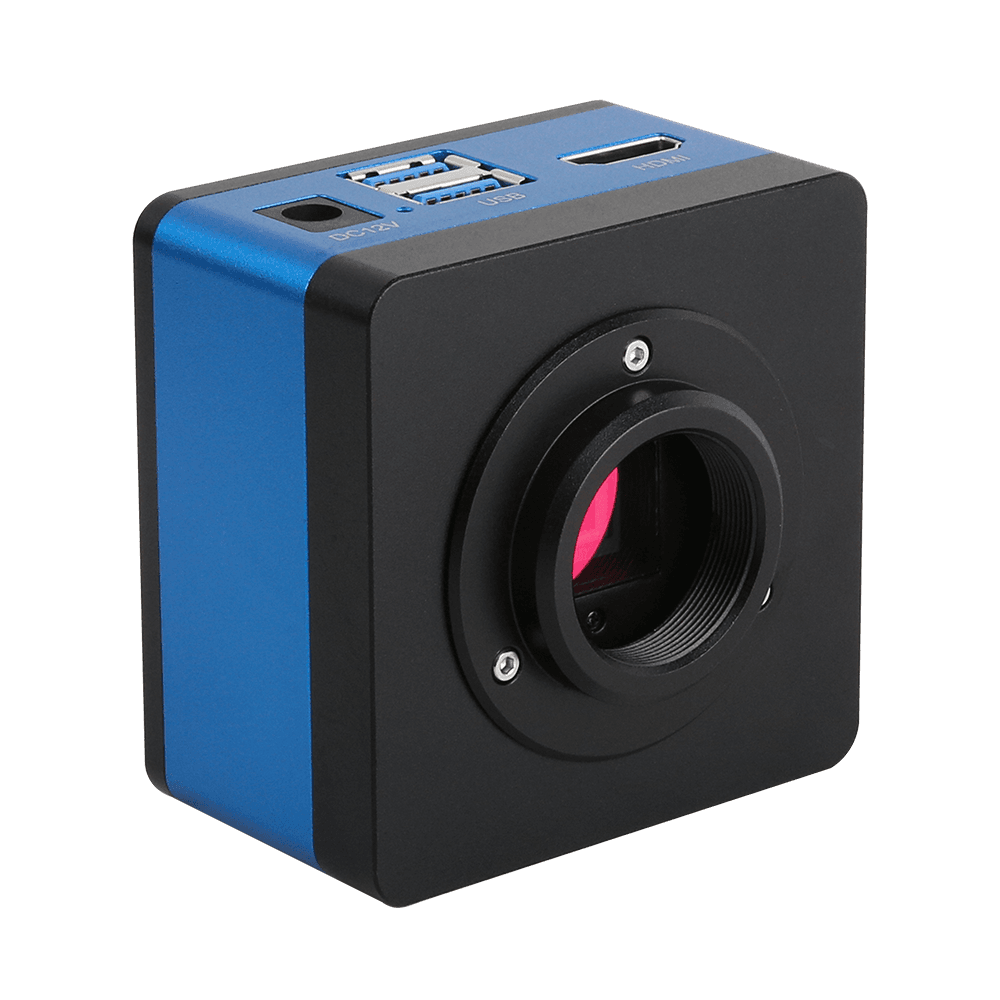

O5CAM4K8MPA
Multi-Interface Camera
O5CAM4K8MPA

O5CAM4K

Sensor
Sony IMX678(C)
Resolution
8MP
Pixel size
2.0 μm × 2.0 μm
Frame rate
HDMI: 60 fps @ 3840×2160
Mount
C-mount
Interface
HDMI2.0
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
OCAM4K8MPA
Multi-Interface Camera
OCAM4K8MPA

OCAM

Sensor
Sony IMX678(C)
Resolution
8MP
Pixel size
2.0 μm × 2.0 μm
Frame rate
HDMI: 30 fps @ 3840×2160
Mount
C-mount
Interface
HDMI1.4
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
X5CAM4K8MMA
Multi-Interface Camera
X5CAM4K8MMA

X5CAM4K

Sensor
Sony IMX678(M)
Resolution
8MP
Pixel size
2.0 µm × 2.0 µm
Frame rate
60 fps @ 3840×2160
Mount
C mount
Interface
HDMI, NETWORK, USB3, WiFi
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
X5CAM4K8MPA
Multi-Interface Camera
X5CAM4K8MPA

X5CAM4K

Sensor
Sony IMX678(C)
Resolution
8MP
Pixel size
2.0 µm × 2.0 µm
Frame rate
60 fps @ 3840×2160
Mount
C mount
Interface
HDMI, NETWORK, USB3, WiFi
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
X5CAM4K8MPA_MR
Multi-Interface CameraCooled
X5CAM4K8MPA_MR

X5CAM4K_MR

Sensor
Sony IMX678(C)
Resolution
8MP (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160
Mount
C mount
Interface
HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
X7CAM4K8MPA
Multi-Interface Camera
X7CAM4K8MPA

X7CAM4K

Sensor
Sony IMX678(C)
Resolution
8MP
Pixel size
2.0 µm × 2.0 µm
Frame rate
72 fps @ 3840×2160
Mount
C mount
Interface
HDMI, USB3, WiFi, LAN
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
X8CAM4K8MPC_MR
Multi-Interface CameraCooled
X8CAM4K8MPC_MR

X8CAM4K_MR

Sensor
Sony IMX678(C)
Resolution
8 MP (3840 × 2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
Model-specific
Mount
C mount
Interface
HDMI2.0 / USB3.0 / NETWORK / SD / USB Video
Sensor size
1/1.8" (7.68 × 4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
XCAMTOP4K8MPC
Multi-Interface CameraCooled
XCAMTOP4K8MPC

XCAMTOP4K

Sensor
Sony IMX678(C)
Resolution
8MP (3840×2160)
Pixel size
2.0 μm × 2.0 μm
Frame rate
30 fps@3840×2160
Mount
C-mount
Interface
HDMI1.4, LAN, Wi-Fi, USB Video
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
XCAMTOP4K8MPC_MINI
Multi-Interface Camera
XCAMTOP4K8MPC_MINI

XCAMTOP4K_MINI

Sensor
Sony IMX678(C)
Resolution
8MP (3840×2160)
Pixel size
2.0 µm × 2.0 µm
Frame rate
HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160
Mount
C-mount
Interface
HDMI 1.4, USB Video, WiFi
Sensor size
1/1.8" (7.68×4.32 mm)
Band
380–700 nm (visible)
Shutter
Rolling
