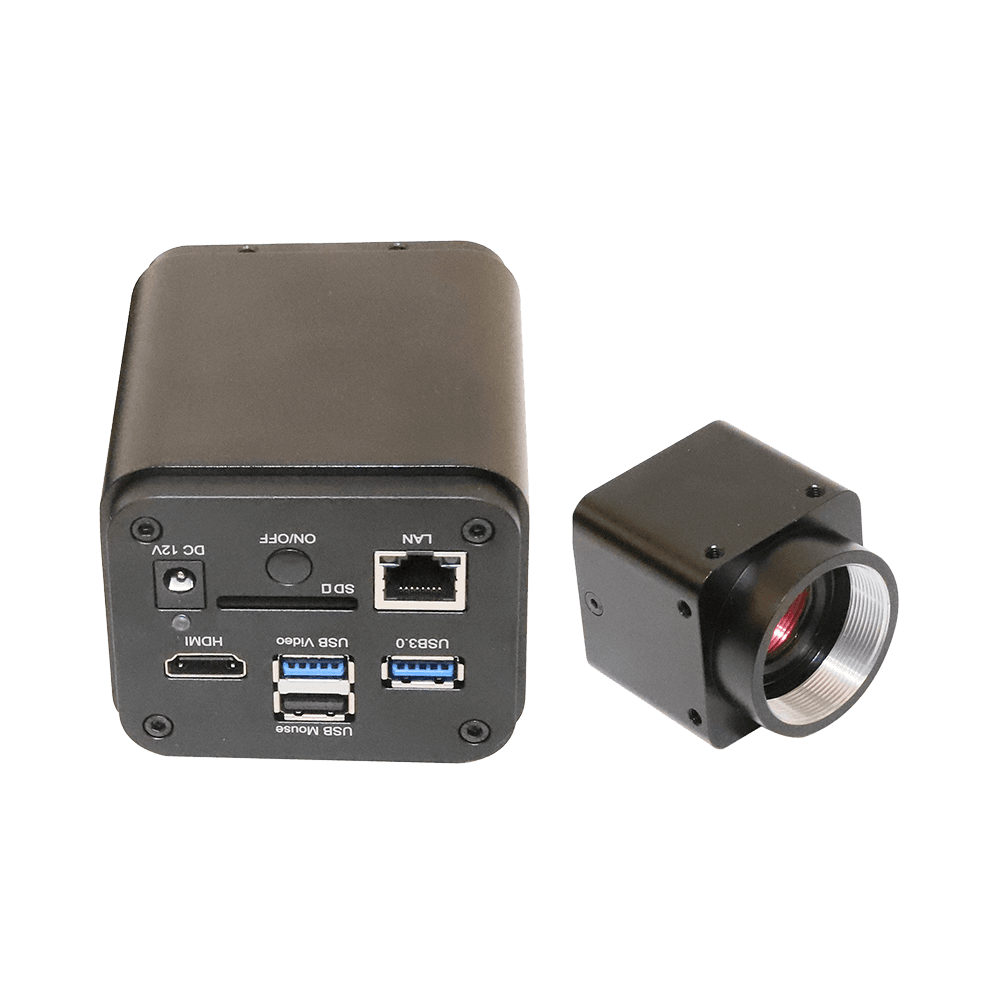

Color · Separated HDMI/NETWORK/USB Multi-Output Camera
X5CAM4K8MPA_MR
- Sensor
- Sony IMX678(C)
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 2.0 µm × 2.0 µm
- Frame Rate
- HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160
- Interface
- HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video
Complete Specifications
Sensor & Imaging
| Sensor Model | Sony IMX678(C) |
|---|---|
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 1/1.8" |
| Pixel Size | 2.0 µm × 2.0 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Sensor | Sony IMX678(C) |
Performance
| Frame Rate | HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160 |
|---|
Interface & Connectivity
| Output Interfaces | HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video |
|---|---|
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| OS Support | Windows XP/7/8/10/11, Linux, macOS 10.10+, Android 5.1+, iOS 11+ |
| Interface | HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video |
Cooling & Mechanical
| Lens Mount | C mount |
|---|---|
| Power Supply | DC 12 V/1A |
| Design | Separated design with main device and image acquisition sub-device |
| Weight | 2 kg |
| Operating/Storage Temperature | 10 °C ~ 50 °C, Storage temperature: -20 °C ~ 60 °C |
| Operating/Storage Humidity | Operating humidity: 30~80%RH, Storage humidity: 10~60%RH |
Other Published Specifications
| Product Model | X5CAM4K8MPA_MR |
|---|---|
| Product Series | Separated HDMI/NETWORK/USB Multi-Output Camera |
| Certification | CE, FCC |
Technical Files & Images
