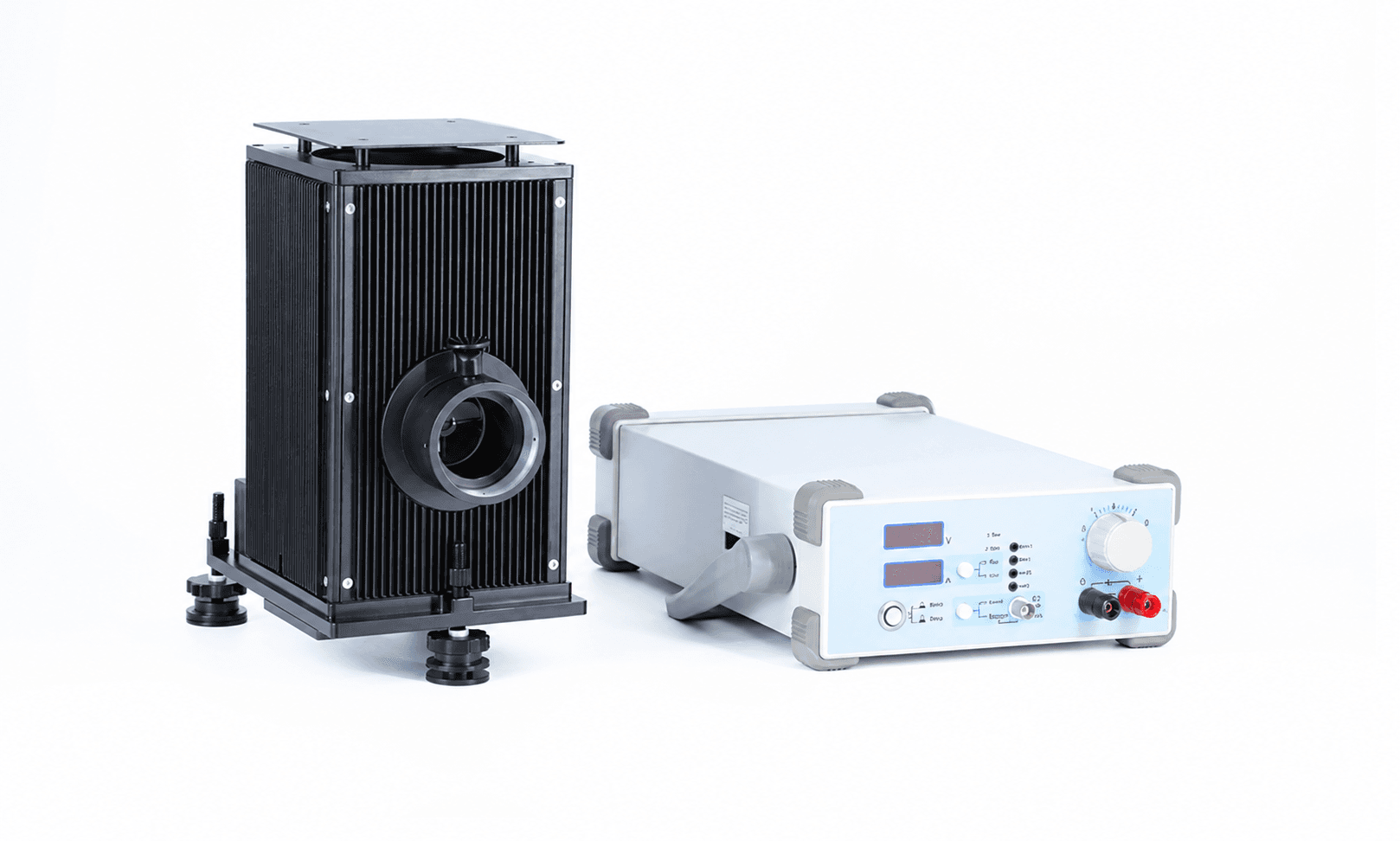

Tungsten-Halogen Light Sources
150 W and 250 W tungsten-halogen sources for visible and near-infrared illumination. Each kit combines a fan-cooled lamp housing, dedicated current supply and bulb with a 46 mm collimated output.
Best suited to
Continuous visible and near-infrared spectroscopy where a thermal lamp spectrum is suitable.
Selecting a configuration
Match lamp power, coupling and detector response. Define the required usable wavelength interval at the sample rather than relying on the emitter alone.
Measurement & configuration
- Housing, power supply and bulb included in each source kit.
- Adjustable source height and fan cooling.
- Stable-current operation with source-specific filter and fibre options.
Plan the signal path
- 1Halogen lamp
- 2Collimation & coupling
- 3Visible / NIR experiment
Specifications
| Beam diameter | 46 mm |
|---|---|
| Optical-axis height | 137–173 mm |
| Power supply voltage adjustment | 0–25 V |
| Current stability | 0.05% |
| Input | 110 / 220 V AC ±10% |
Halogen source comparison
| Source | Lamp rating | Lamp operating point | Supply current range |
|---|---|---|---|
| GLORIA-T150A | 150 W | 6.25 A / 24 V | 0–6.5 A |
| GLORIA-T250A | 250 W | 10.4 A / 24 V | 0–10.8 A |
