Opto-Mechanics · NFP Series Crossed-Roller Bearing High Precision Linear Stages

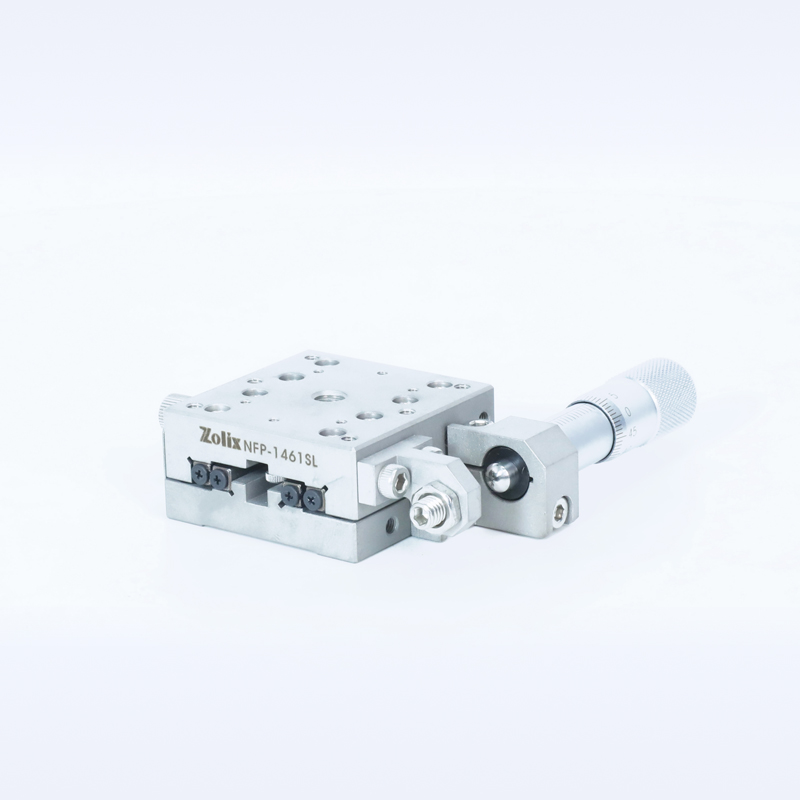

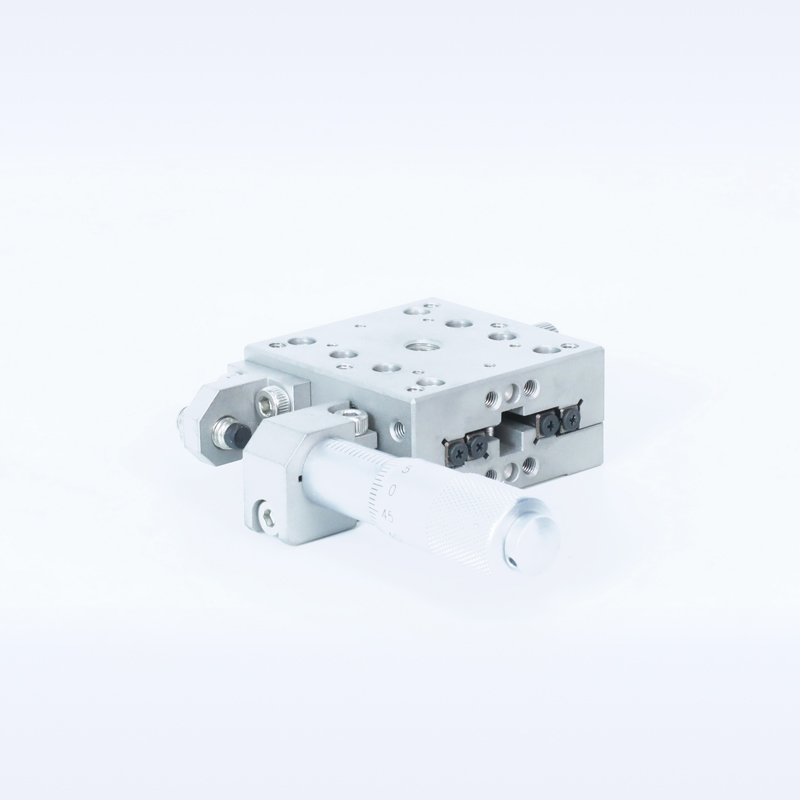

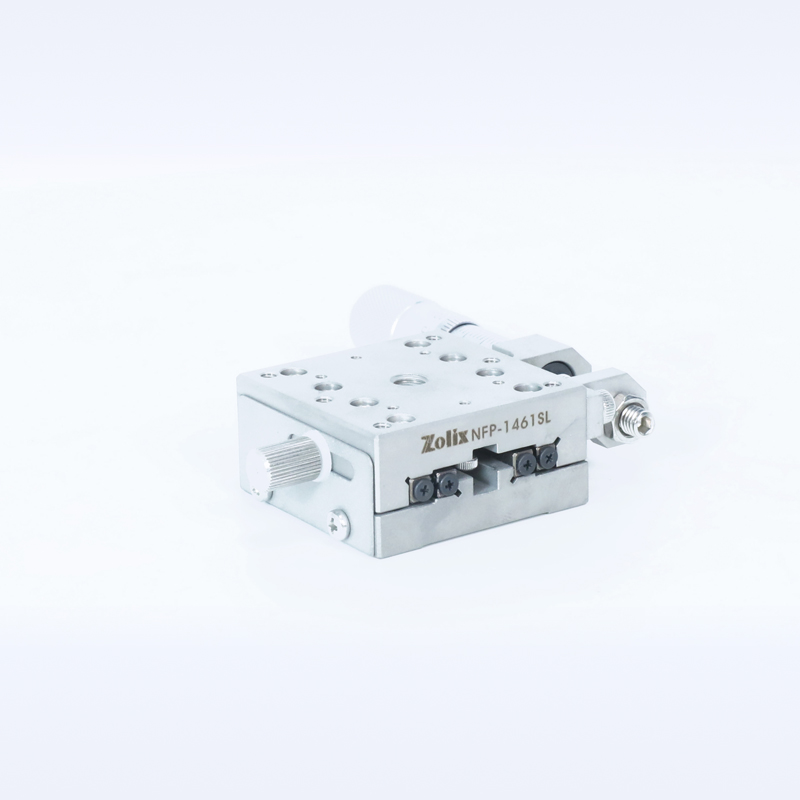

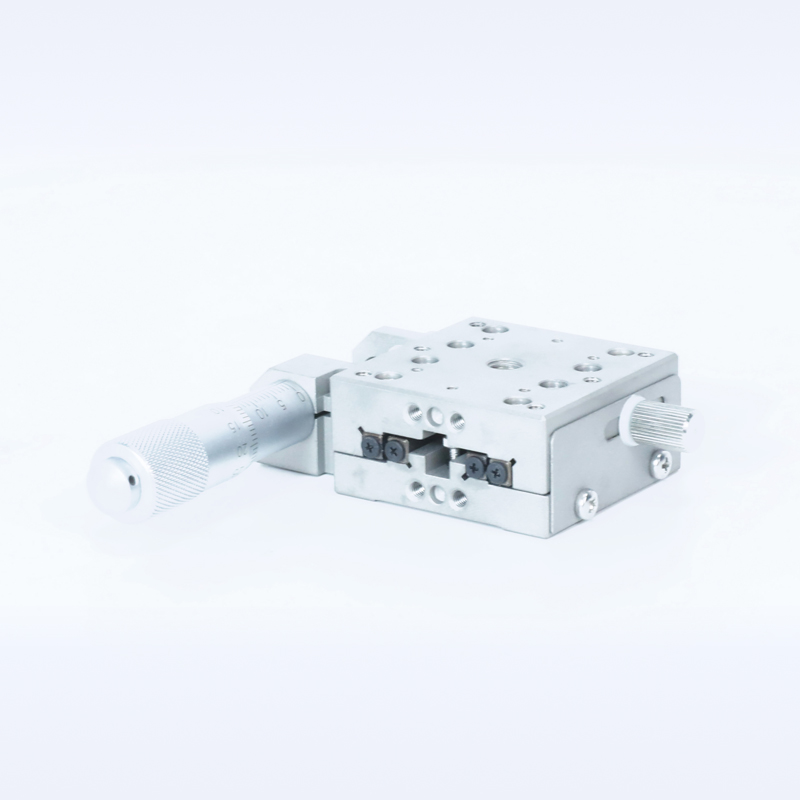

NFP-1461SL
Manual Stage
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Travel range(mm) | 13 |
|---|---|
| Stage surface size(mm) | 40×40 |
| Thickness(mm) | 19.5 |
| Guide mechanism | Precise crossed-roller guide |
| Drive type | Micrometer |
| Drive location | Left |
| Main body material and surface treatment | Stainless steel, sandblasting |
| Sensitivity(µm) | ≤1 |
| Minimum reading of mi-crometer(mm) | 0.01 |
| Straightness(um) | ≤3 |
| Load capacity(Kg) | 5 |
| Weight(Kg) | 0.28 |
| Axes of Travel | X |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
