NFP-1461C

Opto-Mechanics · NFP Series Crossed-Roller Bearing High Precision Linear Stages

NFP-1461C

Manual Stage

View quote list

Datasheet (PDF) ↗

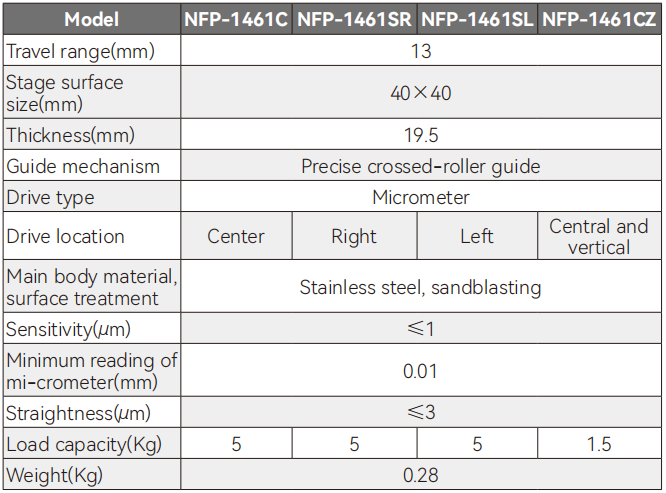

Specifications

Full specifications for this product are available on request. Contact us for the datasheet.

Applications

Set-and-forget alignment

Adjust once during setup and lock, on axes that do not need to move again during the run.

Coarse positioning ahead of fine stages

Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.

Prototyping and teaching rigs

Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.

Related products

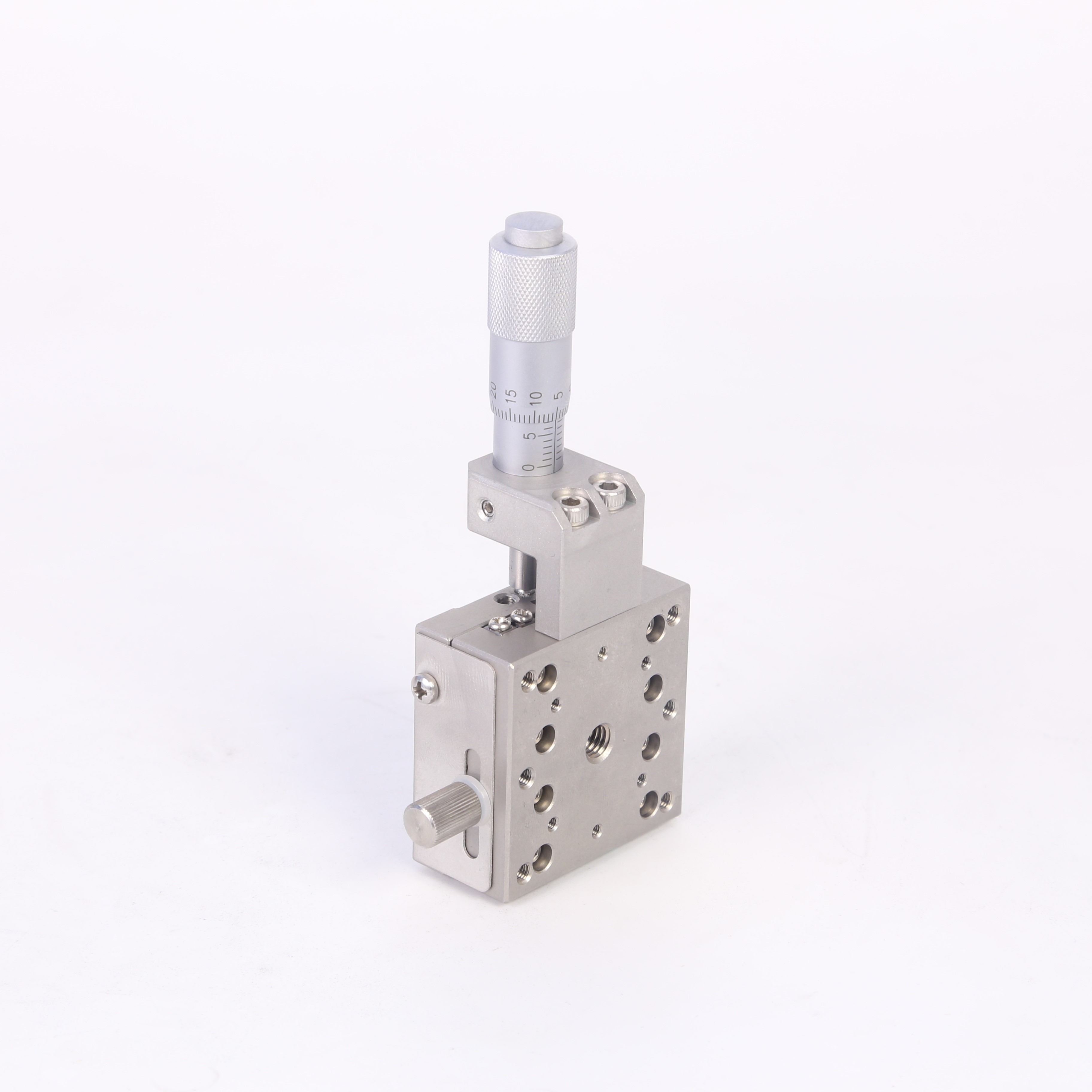

NFP-1461CZ

Manual Stage

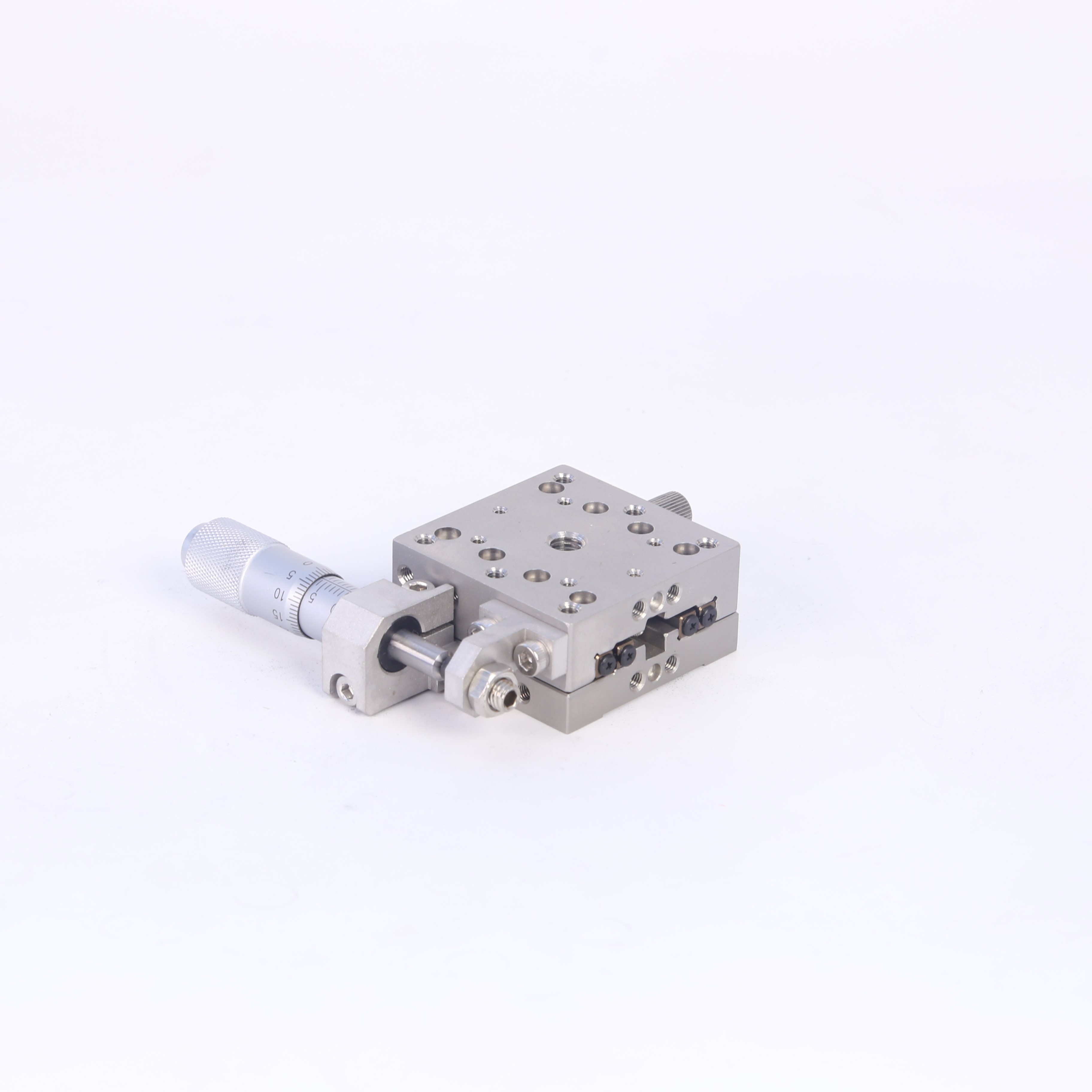

NFP-1461SR

Manual Stage

NFP-1461SL

Manual Stage

NFP-2461CC

Manual Stage
